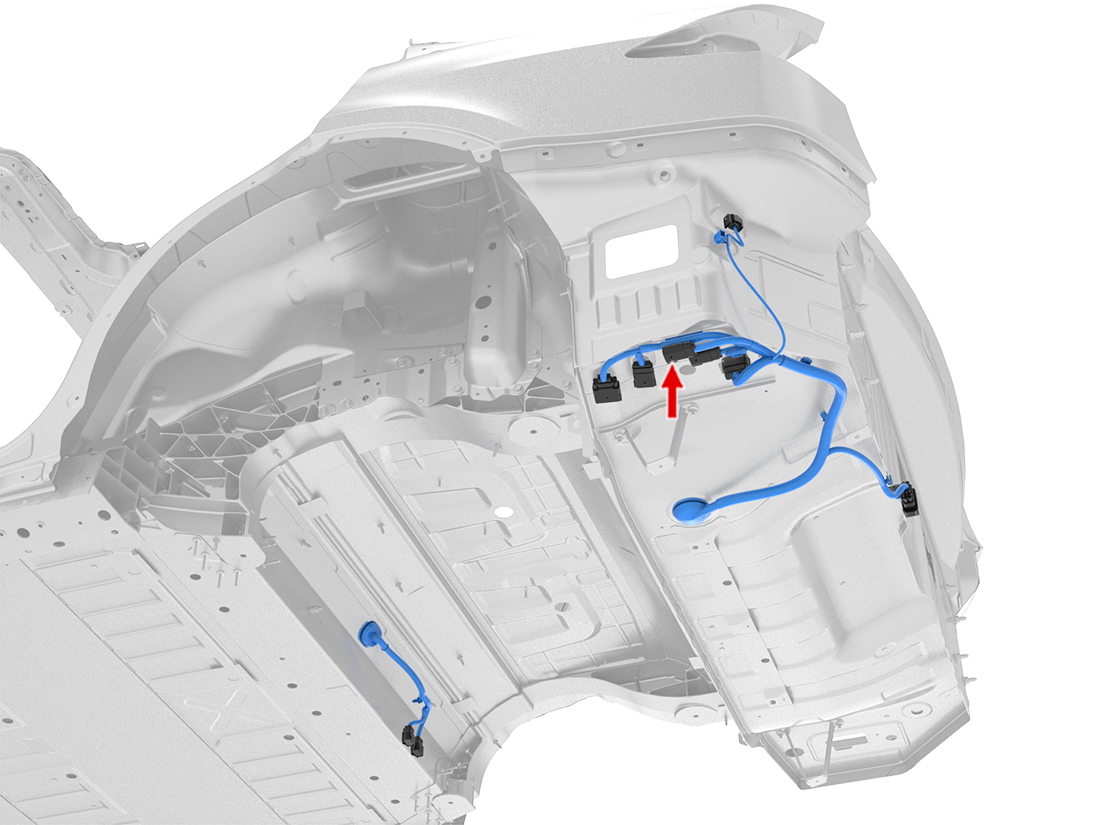

Location:
Connector Detail: MOLEX 33482-6201
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD | 0.5 | SN | X131-18 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 2 | RD | 0.5 | SN | X131A-18 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | X131-22 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | X131A-22 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | VT/WH | 0.5 | SN | X131-21 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | VT/WH | 0.5 | SN | X131A-21 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | VT | 0.5 | SN | X131-7 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | VT | 0.5 | SN | X131A-7 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | WH | 0.5 | SN | X130-1 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | WH | 0.5 | SN | X130A-1 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | BN | 0.5 | SN | X130A-5 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | GY/WH | 0.5 | SN | X131-20 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | GY/WH | 0.5 | SN | X131A-20 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | GY | 0.5 | SN | X131-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | GY | 0.5 | SN | X131A-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD | 0.5 | SN | X131-18 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 2 | RD | 0.5 | SN | X131A-18 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | X131-22 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | X131A-22 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | VT/WH | 0.5 | SN | X131-21 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | VT/WH | 0.5 | SN | X131A-21 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | VT | 0.5 | SN | X131-7 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | VT | 0.5 | SN | X131A-7 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | WH | 0.5 | SN | X130-1 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | WH | 0.5 | SN | X130A-1 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | BN | 0.5 | SN | X130A-5 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | GY/WH | 0.5 | SN | X131-20 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | GY/WH | 0.5 | SN | X131A-20 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | GY | 0.5 | SN | X131-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | GY | 0.5 | SN | X131A-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
