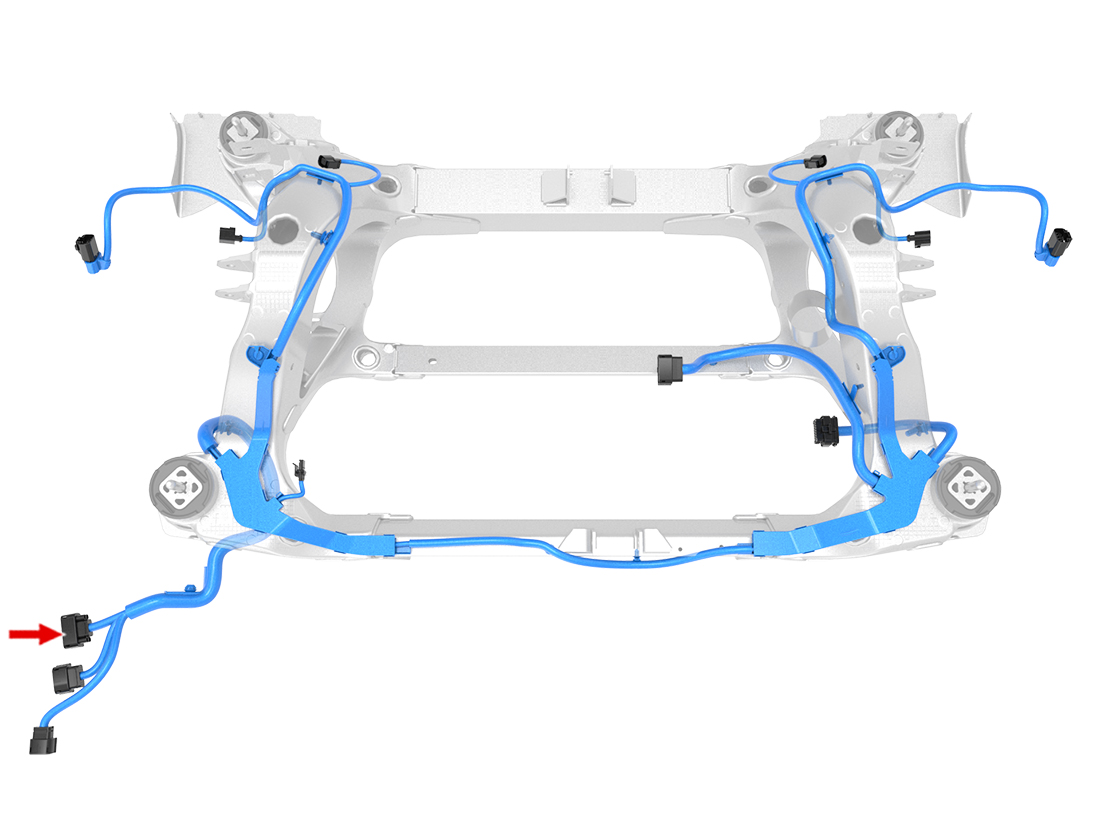

Location:
Connector Detail: Molex 34985-1602
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 2 | SN | X162-4 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 1 | BN | 2 | SN | X162A-1 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 2 | WH | 0.75 | SN | X162-2 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 4 | RD/WH | 0.5 | SN | Z1-CNP01_H-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | VT | 0.75 | SN | X163-2 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 8 | GN | 2 | SN | X163-4 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 8 | GN | 2 | SN | X163A-1 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 9 | BU | 2 | SN | X162-1 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 9 | BU | 2 | SN | X162A-2 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 10 | GN | 0.75 | SN | X162-3 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 12 | RD | 0.5 | SN | Z2-CNP02_H-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | BN | 0.75 | SN | X163-3 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 16 | GY | 2 | SN | X163-1 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 16 | GY | 2 | SN | X163A-2 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 2 | SN | X162-4 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 1 | BN | 2 | SN | X162A-1 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 2 | WH | 0.75 | SN | X162-2 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 4 | RD/WH | 0.5 | SN | Z1-CNP01_H-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | VT | 0.75 | SN | X163-2 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 8 | GN | 2 | SN | X163-4 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 8 | GN | 2 | SN | X163A-1 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 9 | BU | 2 | SN | X162-1 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 9 | BU | 2 | SN | X162A-2 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 10 | GN | 0.75 | SN | X162-3 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 12 | RD | 0.5 | SN | Z2-CNP02_H-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | BN | 0.75 | SN | X163-3 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 16 | GY | 2 | SN | X163-1 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
| 16 | GY | 2 | SN | X163A-2 | AMP 1326032-5 | Yazaki 7158-3113-40 | 1116634-00-B | |
