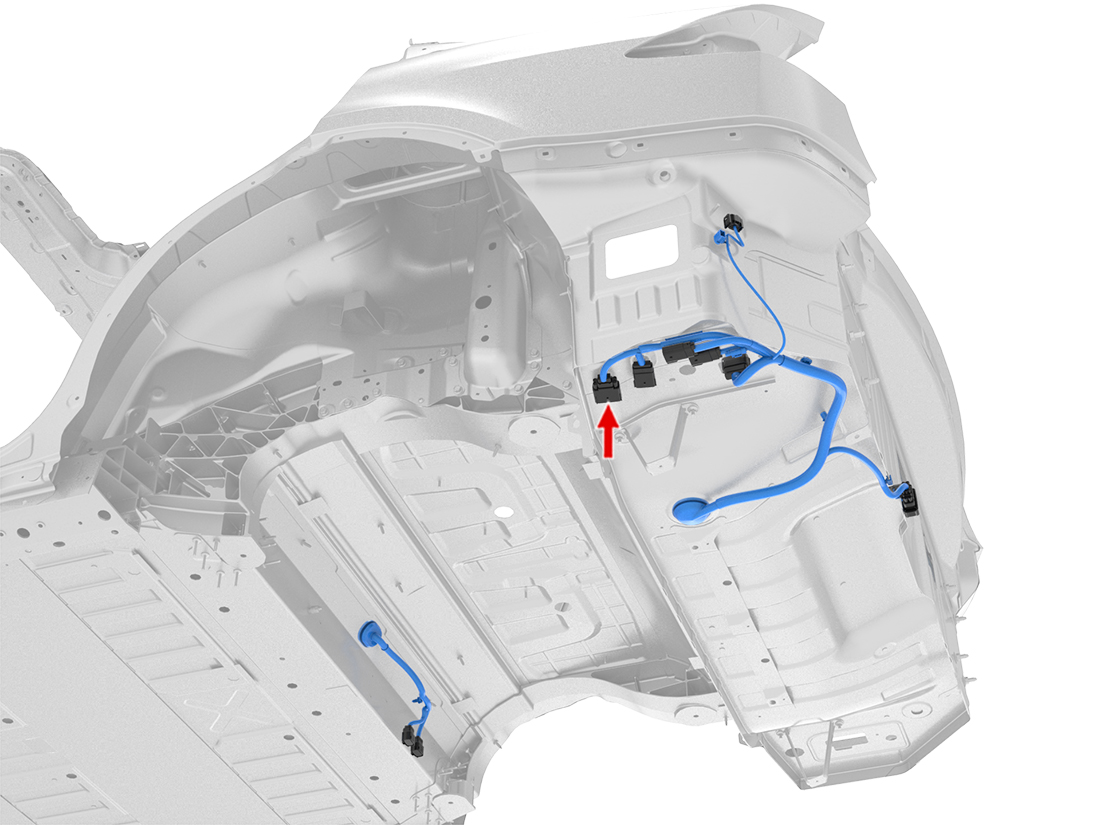

Location:
Connector Detail: MOLEX 34986-1602
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 2 | SN | X160-4 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| 2 | WH | 0.5 | SN | X161-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | WH | 0.5 | SN | X911M-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | VT | 0.5 | SN | X161-5 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | GN | 2 | SN | X160-5 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| 9 | BU | 2 | SN | X160-3 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| 10 | GN | 0.5 | SN | X161-8 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | RD | 0.5 | SN | X911M-16 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 15 | BN | 0.5 | SN | X161-7 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 16 | GY | 2 | SN | X160-6 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 2 | SN | X160-4 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| 2 | WH | 0.5 | SN | X161-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | WH | 0.5 | SN | X911M-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | VT | 0.5 | SN | X161-5 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | GN | 2 | SN | X160-5 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| 9 | BU | 2 | SN | X160-3 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
| 10 | GN | 0.5 | SN | X161-8 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | RD | 0.5 | SN | X911M-16 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 15 | BN | 0.5 | SN | X161-7 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 16 | GY | 2 | SN | X160-6 | AMP 1326031-5 | YAZAKI 7158-3113-40 | 1099435-00-B | |
