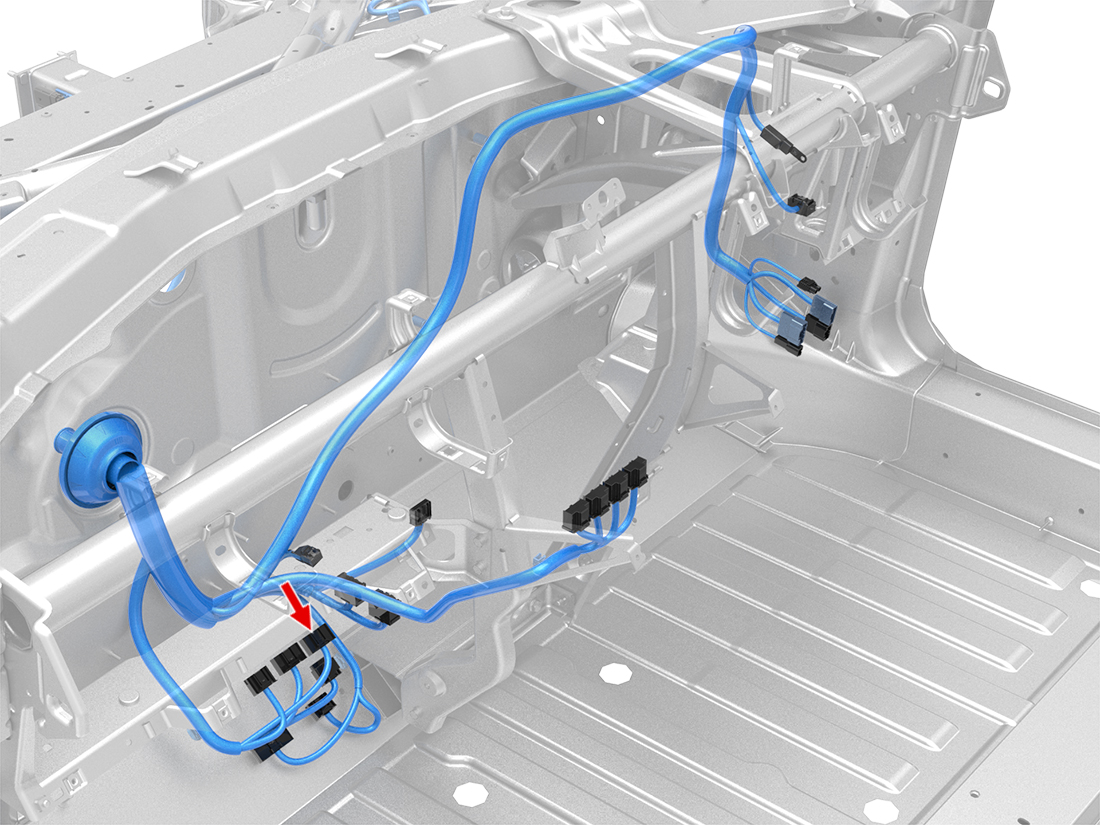

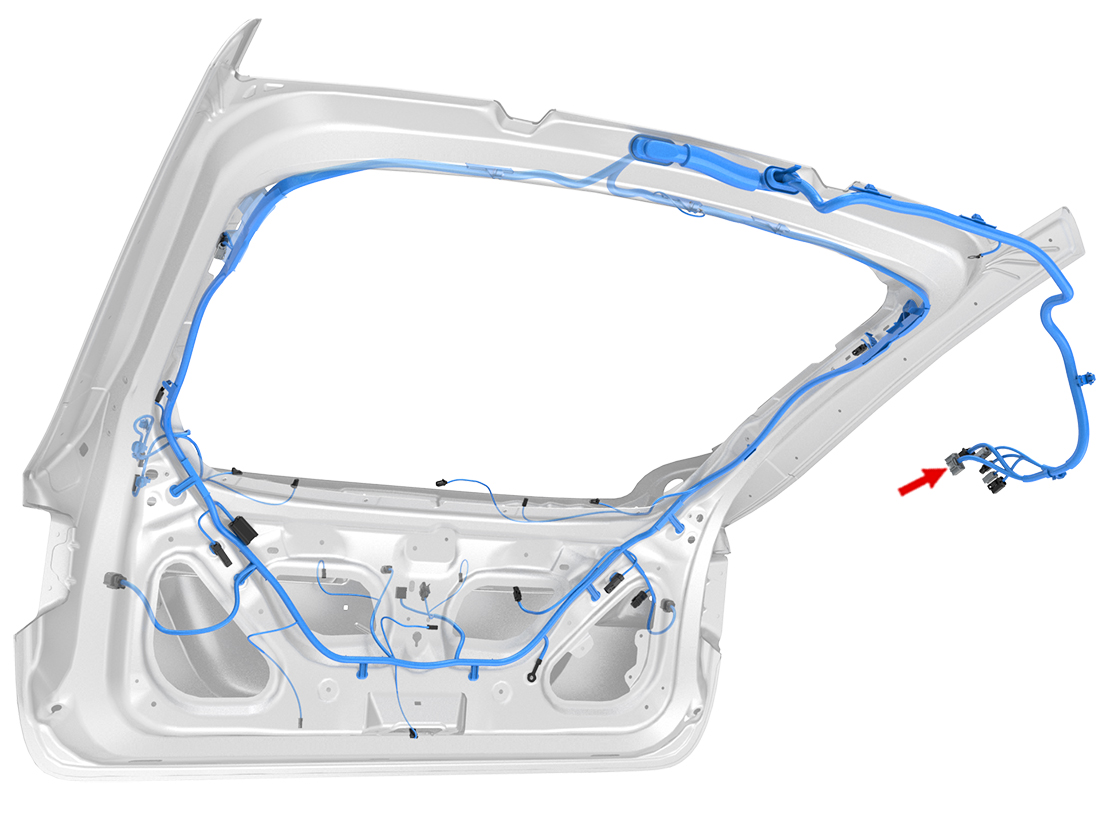

X954F - s-rhd-sop10
Location:
Location:
Location:
Connector Detail: Sumitomo 6098-5604
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7287-1918-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/YE | 0.35 | SN | X966M-7 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | RD | 0.5 | SN | X965M-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | RD/GN | 0.5 | SN | X965M-13 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | RD/BK | 0.5 | SN | X563-39 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 7 | SI | 0.35 | SN | Z91-SEC03-R | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | RD/GY | 0.35 | SN | X051-16 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 10 | GN | 0.5 | SN | X237-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | YE/WH | 0.5 | SN | Z7-+CPV01-R | Sumitomo 8100-3625 | 1099530-00-A | ||
| 12 | RD/VT | 0.35 | SN | X966M-9 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | WH/BK | 0.35 | SN | X966M-10 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | RD/GN | 0.35 | SN | X966M-19 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 15 | GY/WH | 0.35 | SN | X966M-20 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 16 | WH | 0.35 | SN | X051-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 17 | BK/VT | 0.35 | SN | X966M-18 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | VT/WH | 0.5 | SN | X965M-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 19 | BN/WH | 0.5 | SN | X965M-14 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 20 | RD | 0.35 | SN | X480-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 21 | BK | 0.35 | SN | X480-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 22 | VT | 0.5 | SN | X237-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 23 | YE | 0.5 | SN | Z8-+CPV02-R | Sumitomo 8100-3625 | 1099530-00-A | ||
| 24 | BK | 0.5 | SN | X966M-8 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 25 | VT | 0.35 | SN | X966M-16 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 26 | RD/WH | 1.5 | SN | X563-2 | Sumitomo 8240-0214 | 1099540-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X790-3 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 2 | GN | 0.75 | SN | X790-6 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 3 | GY/WH | 0.5 | SN | X341-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | VT/WH | 0.35 | SN | Z122-PLG26-L | Sumitomo 8100-3624 | 1099530-00-A | ||
| 5 | BU/WH | 0.5 | SN | X343-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | GN | 0.35 | SN | X357-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 7 | VT | 0.35 | SN | Z91-EXL30-R | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | RD/BK | 1 | SN | X358-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 11 | VT | 0.75 | SN | X790-9 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 12 | BK | 0.75 | SN | X790-12 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 13 | BU | 0.5 | SN | X341-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | VT | 0.5 | SN | X344-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | BU | 0.35 | SN | X357-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | GY | 0.35 | SN | X358-4 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | BK | 1 | SN | X358-5 | Sumitomo 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X790-3 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 2 | GN | 0.75 | SN | X790-6 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 3 | GY/WH | 0.5 | SN | X341-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | VT/WH | 0.35 | SN | Z122-PLG26-L | Sumitomo 8100-3624 | 1099530-00-A | ||
| 5 | BU/WH | 0.5 | SN | X343-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | GN | 0.35 | SN | X357-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 7 | VT | 0.35 | SN | Z91-EXL30-R | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | RD/BK | 1 | SN | X358-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 11 | VT | 0.75 | SN | X790-9 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 12 | BK | 0.75 | SN | X790-12 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 13 | BU | 0.5 | SN | X341-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | VT | 0.5 | SN | X344-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | BU | 0.35 | SN | X357-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | GY | 0.35 | SN | X358-4 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | BK | 1 | SN | X358-5 | Sumitomo 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/YE | 0.35 | SN | X966M-7 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | RD | 0.5 | SN | X965M-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | RD/GN | 0.5 | SN | X965M-13 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | RD/BK | 0.5 | SN | X563-39 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 7 | SI | 0.35 | SN | Z91-SEC03-R | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | RD/GY | 0.35 | SN | X051-16 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 10 | GN | 0.5 | SN | X237-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | YE/WH | 0.5 | SN | Z7-+CPV01-R | Sumitomo 8100-3625 | 1099530-00-A | ||
| 12 | RD/VT | 0.35 | SN | X966M-9 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | WH/BK | 0.35 | SN | X966M-10 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | RD/GN | 0.35 | SN | X966M-19 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 15 | GY/WH | 0.35 | SN | X966M-20 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 16 | WH | 0.35 | SN | X051-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 17 | BK/VT | 0.35 | SN | X966M-18 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | VT/WH | 0.5 | SN | X965M-6 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 19 | BN/WH | 0.5 | SN | X965M-14 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 20 | RD | 0.35 | SN | X480-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 21 | BK | 0.35 | SN | X480-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 22 | VT | 0.5 | SN | X237-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 23 | YE | 0.5 | SN | Z8-+CPV02-R | Sumitomo 8100-3625 | 1099530-00-A | ||
| 24 | BK | 0.5 | SN | X966M-8 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 25 | VT | 0.35 | SN | X966M-16 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 26 | RD/WH | 1.5 | SN | X563-2 | Sumitomo 8240-0214 | 1099540-00-A |
