X954M - s-rhd-sop10

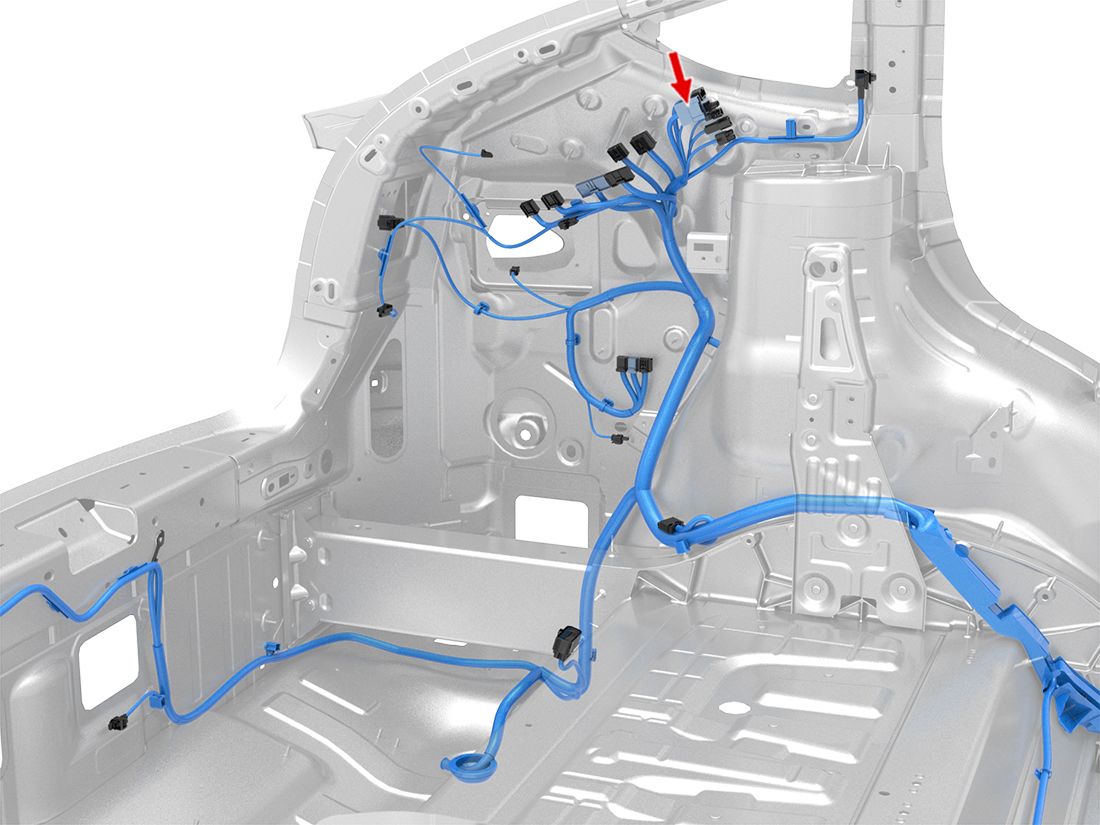

Location:
Location:
Location:
Connector Detail: SUMITOMO 6098-5594
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7286-1918-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/YE | 0.5 | SN | X025-22 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | RD | 0.5 | SN | X200-8 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | RD/GN | 0.5 | SN | X200-26 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | RD/BK | 0.5 | SN | X021-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 7 | SI | 0.35 | SN | X023-19 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | RD/GY | 0.35 | SN | X259-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | GN | 0.5 | SN | X201-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | YE/WH | 0.5 | SN | X776-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 12 | RD/VT | 0.5 | SN | X024-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 13 | WH/BK | 0.5 | SN | X024-8 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | RD/GN | 0.5 | SN | X024-15 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 15 | GY/WH | 0.5 | SN | X024-16 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 16 | WH | 0.35 | SN | X259-4 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 17 | BK/VT | 0.35 | SN | X948M-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | VT/WH | 0.5 | SN | X200-17 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 19 | BN/WH | 0.5 | SN | X200-35 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 20 | RD | 0.35 | SN | X023-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 21 | BK | 0.35 | SN | X023-5 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 22 | VT | 0.5 | SN | X201-8 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 23 | YE | 0.5 | SN | X776-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 24 | BK | 0.35 | SN | X025-20 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 25 | VT | 0.35 | SN | X021-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 26 | RD/WH | 1.5 | SN | X259-1 | Sumitomo 8230-4923 | 1099534-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X925M-3 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 2 | GN | 0.75 | SN | X925M-5 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 3 | GY/WH | 0.5 | SN | X071-31 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 4 | VT/WH | 0.35 | SN | X706-14 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 4 | VT/WH | 0.35 | SN | X706A-14 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 5 | BU/WH | 0.35 | SN | X071-17 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 6 | GN | 0.13 | SN | X071-25 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 7 | VT | 0.35 | SN | X070-17 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 9 | RD/BK | 1 | SN | X073-8 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 11 | VT | 0.75 | SN | X925M-4 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 12 | BK | 0.75 | SN | X925M-6 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 13 | BU | 0.5 | SN | X071-30 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 14 | VT | 0.35 | SN | X071-15 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 15 | BU | 0.13 | SN | X071-27 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 16 | GY | 0.13 | SN | X071-26 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 17 | BK | 1 | SN | X073-7 | SUMITOMO 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X925M-3 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 2 | GN | 0.75 | SN | X925M-5 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 3 | GY/WH | 0.5 | SN | X071-31 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 4 | VT/WH | 0.35 | SN | X706-14 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 4 | VT/WH | 0.35 | SN | X706A-14 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 5 | BU/WH | 0.35 | SN | X071-17 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 6 | GN | 0.13 | SN | X071-25 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 7 | VT | 0.35 | SN | X070-17 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 9 | RD/BK | 1 | SN | X073-8 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 11 | VT | 0.75 | SN | X925M-4 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 12 | BK | 0.75 | SN | X925M-6 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 13 | BU | 0.5 | SN | X071-30 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 14 | VT | 0.35 | SN | X071-15 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 15 | BU | 0.13 | SN | X071-27 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 16 | GY | 0.13 | SN | X071-26 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 17 | BK | 1 | SN | X073-7 | SUMITOMO 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/YE | 0.5 | SN | X025-22 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | RD | 0.5 | SN | X200-8 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | RD/GN | 0.5 | SN | X200-26 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | RD/BK | 0.5 | SN | X021-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 7 | SI | 0.35 | SN | X023-19 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | RD/GY | 0.35 | SN | X259-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | GN | 0.5 | SN | X201-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | YE/WH | 0.5 | SN | X776-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 12 | RD/VT | 0.5 | SN | X024-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 13 | WH/BK | 0.5 | SN | X024-8 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | RD/GN | 0.5 | SN | X024-15 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 15 | GY/WH | 0.5 | SN | X024-16 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 16 | WH | 0.35 | SN | X259-4 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 17 | BK/VT | 0.35 | SN | X948M-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | VT/WH | 0.5 | SN | X200-17 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 19 | BN/WH | 0.5 | SN | X200-35 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 20 | RD | 0.35 | SN | X023-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 21 | BK | 0.35 | SN | X023-5 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 22 | VT | 0.5 | SN | X201-8 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 23 | YE | 0.5 | SN | X776-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 24 | BK | 0.35 | SN | X025-20 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 25 | VT | 0.35 | SN | X021-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 26 | RD/WH | 1.5 | SN | X259-1 | Sumitomo 8230-4923 | 1099534-00-A |
