X955F - s-rhd-sop10

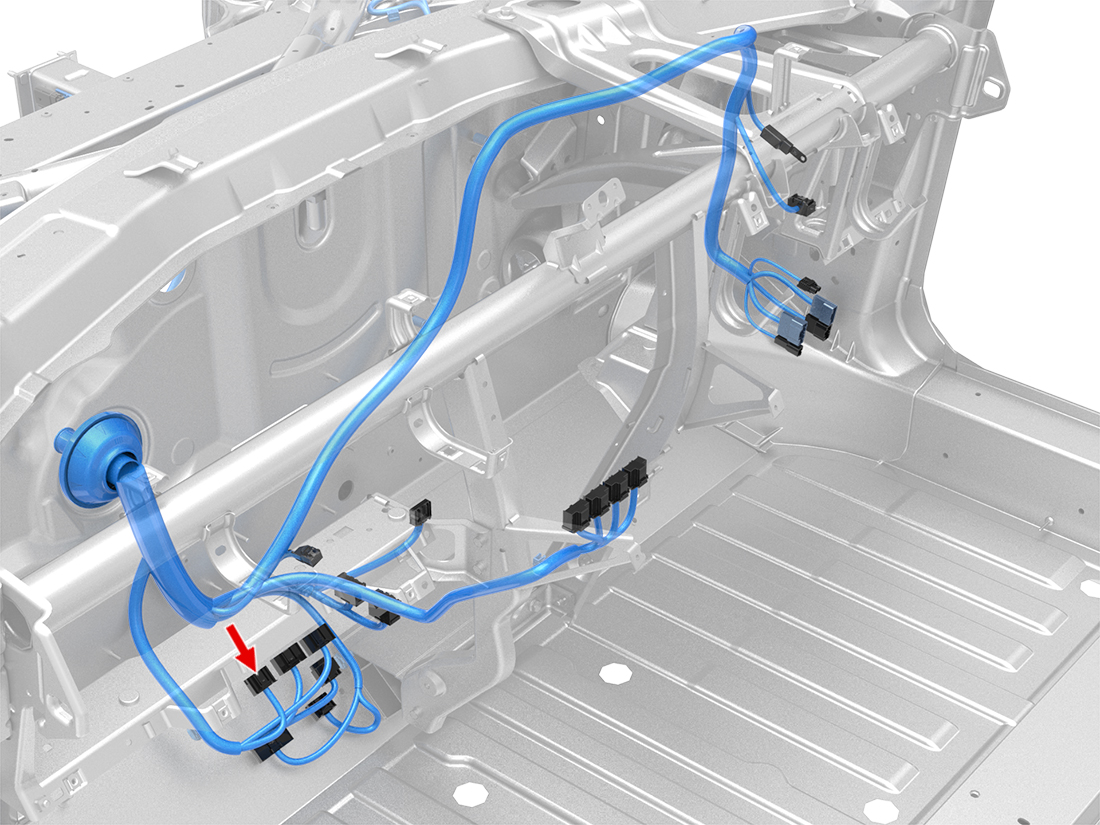

Location:
Location:
Location:
Connector Detail: Sumitomo 6098-3926
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-5627
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.35 | SN | X563-35 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | WH/BU | 0.35 | SN | X020-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | WH/RD | 0.35 | SN | X020-17 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | GN/WH | 0.35 | SN | X777-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 7 | BN/WH | 0.35 | SN | X540-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | RD | 0.5 | SN | X033-B | Sumitomo 8100-3625 | 1099530-00-A | ||
| 10 | VT | 0.5 | SN | X925F-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | RD/BK | 0.5 | SN | X030-A | Sumitomo 8240-0215 | 1099541-00-A | ||
| 12 | RD/GY | 0.75 | SN | X966M-14 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 13 | GY/WH | 0.35 | SN | X020-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | RD/BU | 0.35 | SN | X020-13 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | GN | 0.35 | SN | X777-15 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 17 | BN | 0.35 | SN | X540-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | RD | 0.35 | SN | X276-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 19 | RD/GN | 0.35 | SN | X277-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 20 | VT | 0.75 | SN | X966M-4 | Sumitomo 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | BN/WH | 0.5 | SN | X343-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | WH | 0.5 | SN | X271-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | RD | 0.5 | SN | X271-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | VT | 0.5 | SN | X271-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | WH | 0.35 | SN | X296-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BN | 0.35 | SN | X274-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | VT | 0.35 | SN | X347-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | WH | 0.35 | SN | X349-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | BU | 0.35 | SN | X342-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | BU/WH | 0.5 | SN | X344-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | BU | 0.5 | SN | X273-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | GN | 0.5 | SN | X273-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | GY | 0.5 | SN | X273-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 17 | GY/WH | 0.5 | SN | X340-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | BU | 0.35 | SN | X340-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 19 | GY | 0.35 | SN | X340-4 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 20 | VT | 0.35 | SN | X349-2 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 21 | GN | 0.35 | SN | X342-1 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | BN/WH | 0.5 | SN | X343-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | WH | 0.5 | SN | X271-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | RD | 0.5 | SN | X271-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | VT | 0.5 | SN | X271-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | WH | 0.35 | SN | X296-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BN | 0.35 | SN | X274-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | VT | 0.35 | SN | X347-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | WH | 0.35 | SN | X349-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | BU | 0.35 | SN | X342-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | BU/WH | 0.5 | SN | X344-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | BU | 0.5 | SN | X273-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | GN | 0.5 | SN | X273-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | GY | 0.5 | SN | X273-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 17 | GY/WH | 0.5 | SN | X340-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | BU | 0.35 | SN | X340-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 19 | GY | 0.35 | SN | X340-4 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 20 | VT | 0.35 | SN | X349-2 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 21 | GN | 0.35 | SN | X342-1 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.35 | SN | X563-35 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 2 | WH/BU | 0.35 | SN | X020-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | WH/RD | 0.35 | SN | X020-17 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | GN/WH | 0.35 | SN | X777-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 7 | BN/WH | 0.35 | SN | X540-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | RD | 0.5 | SN | X033-B | Sumitomo 8100-3625 | 1099530-00-A | ||
| 10 | VT | 0.5 | SN | X925F-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | RD/BK | 0.5 | SN | X030-A | Sumitomo 8240-0215 | 1099541-00-A | ||
| 12 | RD/GY | 0.75 | SN | X966M-14 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 13 | GY/WH | 0.35 | SN | X020-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | RD/BU | 0.35 | SN | X020-13 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | GN | 0.35 | SN | X777-15 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 17 | BN | 0.35 | SN | X540-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 18 | RD | 0.35 | SN | X276-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 19 | RD/GN | 0.35 | SN | X277-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 20 | VT | 0.75 | SN | X966M-4 | Sumitomo 8240-0213 | 1099539-00-A |
