X955M - s-rhd-sop10

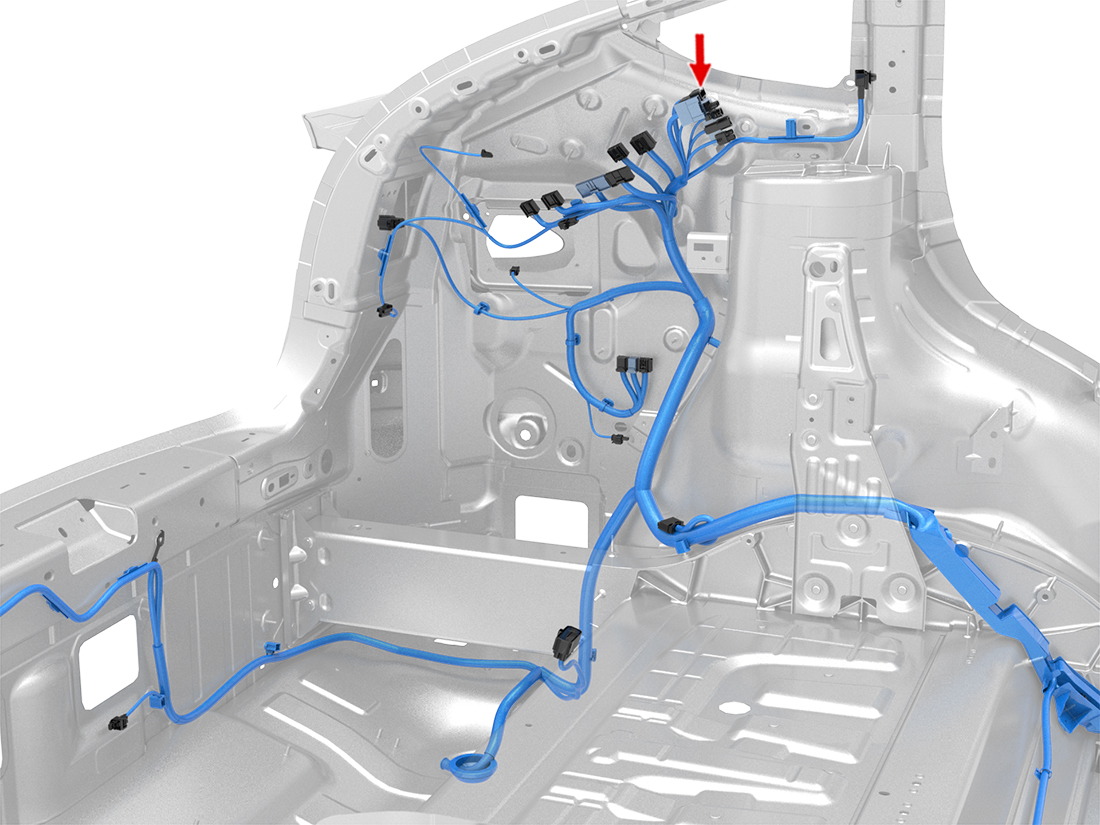

Location:
Location:
Location:
Connector Detail: SUMITOMO 6098-3886
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-5618
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.35 | SN | X022-7 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 2 | WH/BU | 0.35 | SN | X967M-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 3 | WH/RD | 0.35 | SN | X270-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | GN/WH | 0.35 | SN | X775-20 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 7 | BN/WH | 0.35 | SN | X776-10 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 9 | RD | 0.5 | SN | X021-23 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | VT | 0.5 | SN | X022-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | RD/BK | 0.5 | SN | X022-1 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 12 | RD/GY | 0.75 | SN | X025-32 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 13 | GY/WH | 0.35 | SN | X967M-16 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | RD/BU | 0.35 | SN | X270-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | GN | 0.35 | SN | X775-9 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 17 | BN | 0.35 | SN | X776-21 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | RD | 0.35 | SN | X943M-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 19 | RD/GN | 0.35 | SN | X944M-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 20 | VT | 0.75 | SN | X025-16 | Sumitomo 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | BN/WH | 0.35 | SN | X071-40 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 3 | WH | 0.13 | SN | X070-5 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 4 | RD | 0.13 | SN | X070-3 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 5 | VT | 0.13 | SN | X070-10 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 6 | WH | 0.13 | SN | X071-8 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 7 | GY | 0.13 | SN | X070-19 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 8 | VT | 0.13 | SN | X071-6 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 9 | WH | 0.13 | SN | X071-19 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 10 | BU | 0.13 | SN | X071-33 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 13 | BU/WH | 0.35 | SN | X071-38 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 14 | BU | 0.13 | SN | X070-22 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 15 | GN | 0.13 | SN | X070-18 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 16 | GY | 0.13 | SN | X070-27 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 17 | GY/WH | 0.5 | SN | X071-4 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 18 | BU | 0.13 | SN | X071-1 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 19 | GY | 0.13 | SN | X071-2 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 20 | VT | 0.13 | SN | X071-18 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 21 | GN | 0.13 | SN | X071-5 | SUMITOMO 8230-4878 | 1099529-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | BN/WH | 0.35 | SN | X071-40 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 3 | WH | 0.13 | SN | X070-5 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 4 | RD | 0.13 | SN | X070-3 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 5 | VT | 0.13 | SN | X070-10 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 6 | WH | 0.13 | SN | X071-8 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 7 | GY | 0.13 | SN | X070-19 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 8 | VT | 0.13 | SN | X071-6 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 9 | WH | 0.13 | SN | X071-19 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 10 | BU | 0.13 | SN | X071-33 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 13 | BU/WH | 0.35 | SN | X071-38 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 14 | BU | 0.13 | SN | X070-22 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 15 | GN | 0.13 | SN | X070-18 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 16 | GY | 0.13 | SN | X070-27 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 17 | GY/WH | 0.5 | SN | X071-4 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 18 | BU | 0.13 | SN | X071-1 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 19 | GY | 0.13 | SN | X071-2 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 20 | VT | 0.13 | SN | X071-18 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 21 | GN | 0.13 | SN | X071-5 | SUMITOMO 8230-4878 | 1099529-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 0.35 | SN | X022-7 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 2 | WH/BU | 0.35 | SN | X967M-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 3 | WH/RD | 0.35 | SN | X270-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | GN/WH | 0.35 | SN | X775-20 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 7 | BN/WH | 0.35 | SN | X776-10 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 9 | RD | 0.5 | SN | X021-23 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | VT | 0.5 | SN | X022-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | RD/BK | 0.5 | SN | X022-1 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 12 | RD/GY | 0.75 | SN | X025-32 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 13 | GY/WH | 0.35 | SN | X967M-16 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | RD/BU | 0.35 | SN | X270-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | GN | 0.35 | SN | X775-9 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 17 | BN | 0.35 | SN | X776-21 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | RD | 0.35 | SN | X943M-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 19 | RD/GN | 0.35 | SN | X944M-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 20 | VT | 0.75 | SN | X025-16 | Sumitomo 8230-4924 | 1099536-00-A |
