X956F - s-rhd-sop10

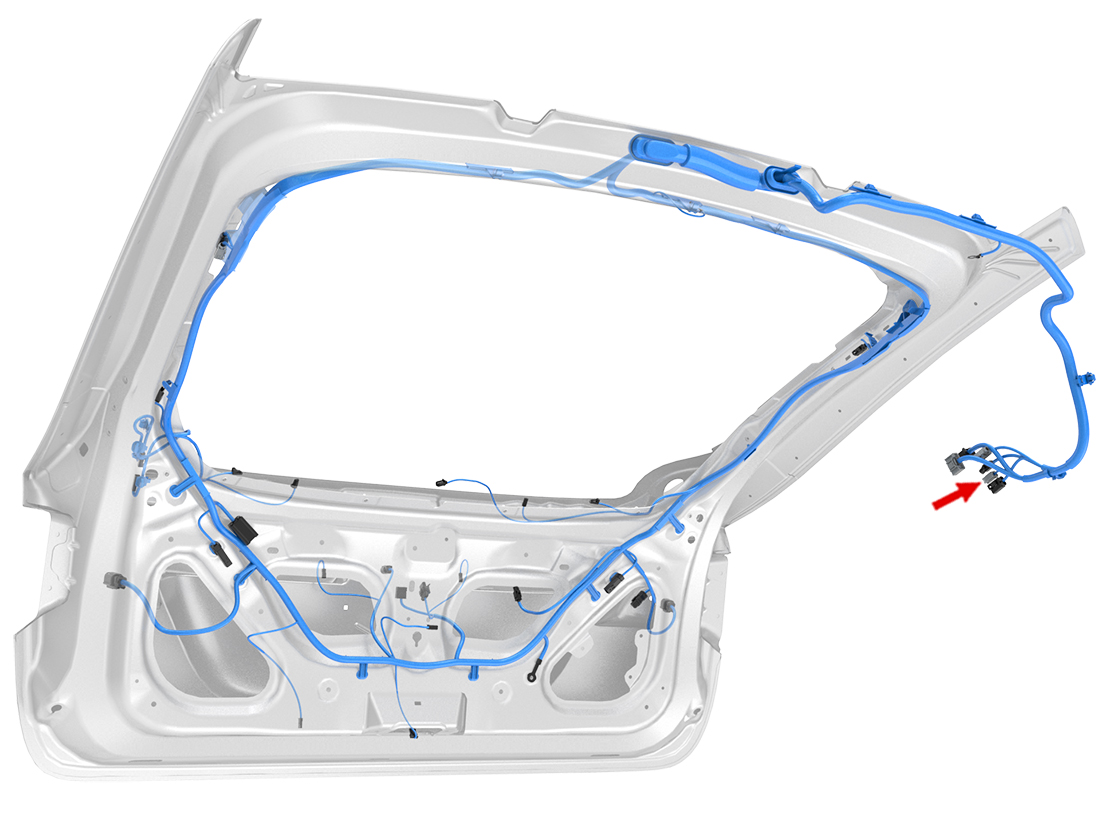

Location:
Connector Detail: Yazaki 7283-1210
Color: Natural
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X310-1 | Yazaki 7116-4032 | 1099557-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X310-1 | Yazaki 7116-4032 | 1099557-00-A |
