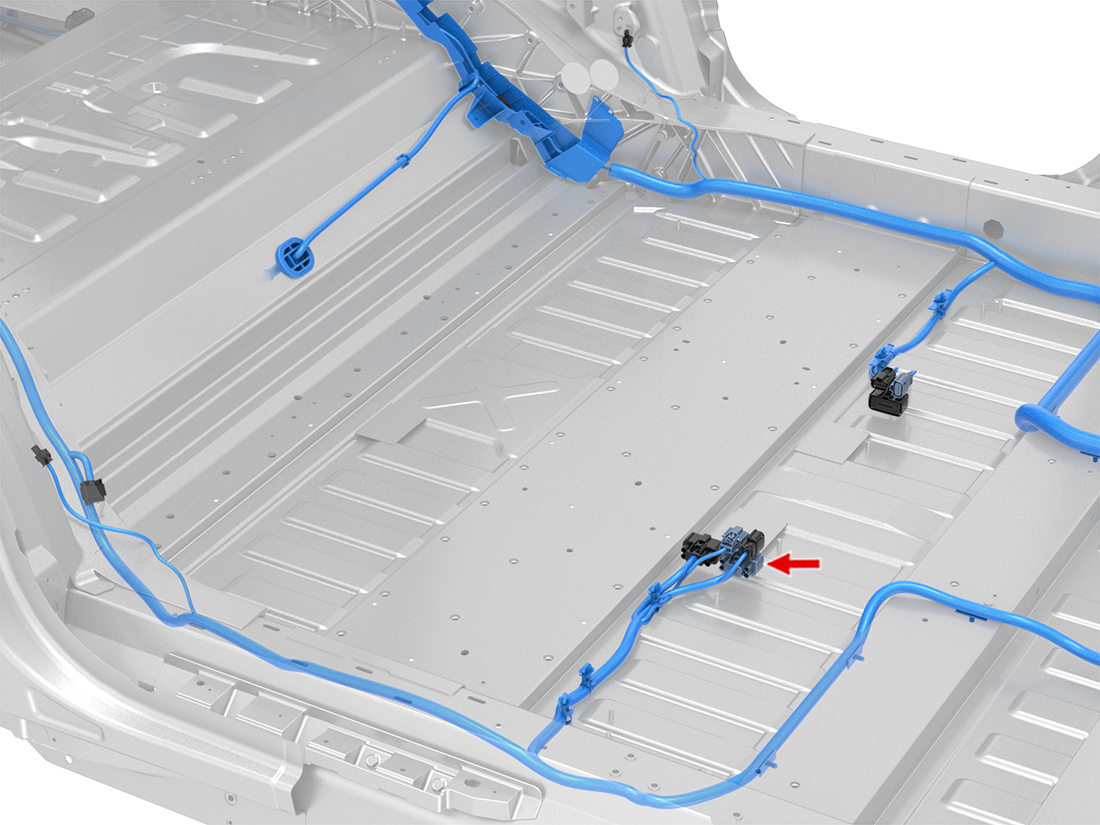

Location:
Connector Detail: MOLEX 34985-1601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 2 | SN | X043-7 | AMP 1326032-5 | YAZAKI 7158-3113-40 | 1116634-00-B | |
| 2 | BN/WH | 0.5 | SN | X708-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BN | 0.5 | SN | X708-15 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BU/WH | 0.5 | SN | X962-7 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | RD/WH | 0.5 | SN | X962-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | BK | 2 | SN | GND_C2-1 | AMP 1326032-5 | YAZAKI 7158-3113-40 | 1116634-00-B | |
| 9 | VT | 0.75 | SN | X962-1 | AMP 1326032-3 | YAZAKI 7158-3111-60 | 1108312-00-C | |
| 10 | BU | 0.5 | SN | X962-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | GN/WH | 0.5 | SN | X962-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 12 | BN | 0.5 | SN | X962-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 13 | BK | 0.75 | SN | X962-11 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 14 | GN | 0.5 | SN | X962-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | GY | 0.5 | SN | X962-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 2 | SN | X043-7 | AMP 1326032-5 | YAZAKI 7158-3113-40 | 1116634-00-B | |
| 2 | BN/WH | 0.5 | SN | X708-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BN | 0.5 | SN | X708-15 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BU/WH | 0.5 | SN | X962-7 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | RD/WH | 0.5 | SN | X962-4 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | BK | 2 | SN | GND_C2-1 | AMP 1326032-5 | YAZAKI 7158-3113-40 | 1116634-00-B | |
| 9 | VT | 0.75 | SN | X962-1 | AMP 1326032-3 | YAZAKI 7158-3111-60 | 1108312-00-C | |
| 10 | BU | 0.5 | SN | X962-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | GN/WH | 0.5 | SN | X962-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 12 | BN | 0.5 | SN | X962-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 13 | BK | 0.75 | SN | X962-11 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 14 | GN | 0.5 | SN | X962-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | GY | 0.5 | SN | X962-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099518-00-A | 1116485-00-A |
