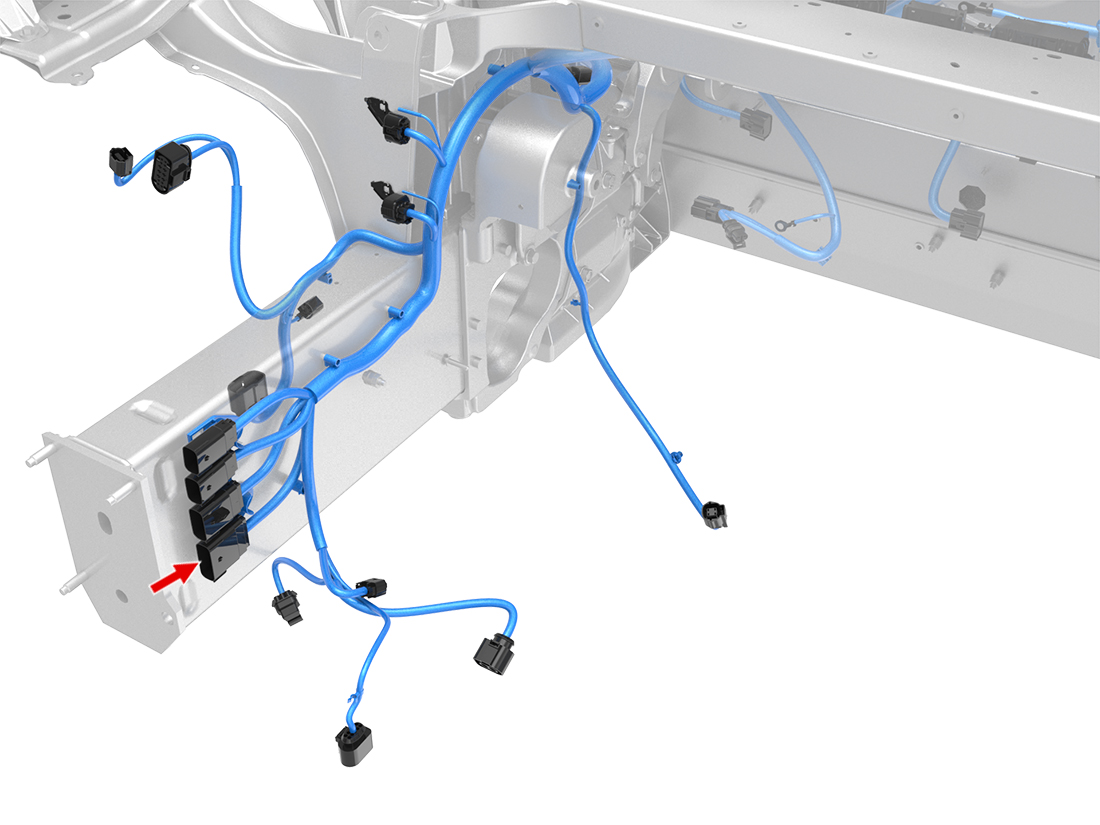

Location:
Connector Detail: Molex 33482-2102
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD/BU | 0.5 | SN | X563-12 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | GN | 0.35 | SN | Z40-HVC25-R | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | VT | 0.75 | SN | X955F-20 | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | BK | 0.75 | SN | G510-1 | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 7 | RD/YE | 0.35 | SN | X954F-2 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | BK | 0.5 | SN | X954F-24 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | RD/VT | 0.35 | SN | X954F-12 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | WH/BK | 0.35 | SN | X954F-13 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | VT/WH | 0.35 | SN | X953F-10 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | VT | 0.35 | SN | X953F-22 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 14 | RD/GY | 0.75 | SN | X955F-12 | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 15 | BK | 0.75 | SN | G510-1 | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 16 | VT | 0.35 | SN | X954F-25 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 17 | WH | 0.35 | SN | X020-20 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 18 | BK/VT | 0.35 | SN | X954F-17 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 19 | RD/GN | 0.35 | SN | X954F-14 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 20 | GY/WH | 0.35 | SN | X954F-15 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD/BU | 0.5 | SN | X563-12 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | GN | 0.35 | SN | Z40-HVC25-R | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | VT | 0.75 | SN | X955F-20 | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | BK | 0.75 | SN | G510-1 | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 7 | RD/YE | 0.35 | SN | X954F-2 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | BK | 0.5 | SN | X954F-24 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | RD/VT | 0.35 | SN | X954F-12 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | WH/BK | 0.35 | SN | X954F-13 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | VT/WH | 0.35 | SN | X953F-10 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | VT | 0.35 | SN | X953F-22 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 14 | RD/GY | 0.75 | SN | X955F-12 | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 15 | BK | 0.75 | SN | G510-1 | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 16 | VT | 0.35 | SN | X954F-25 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 17 | WH | 0.35 | SN | X020-20 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 18 | BK/VT | 0.35 | SN | X954F-17 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 19 | RD/GN | 0.35 | SN | X954F-14 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 20 | GY/WH | 0.35 | SN | X954F-15 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
