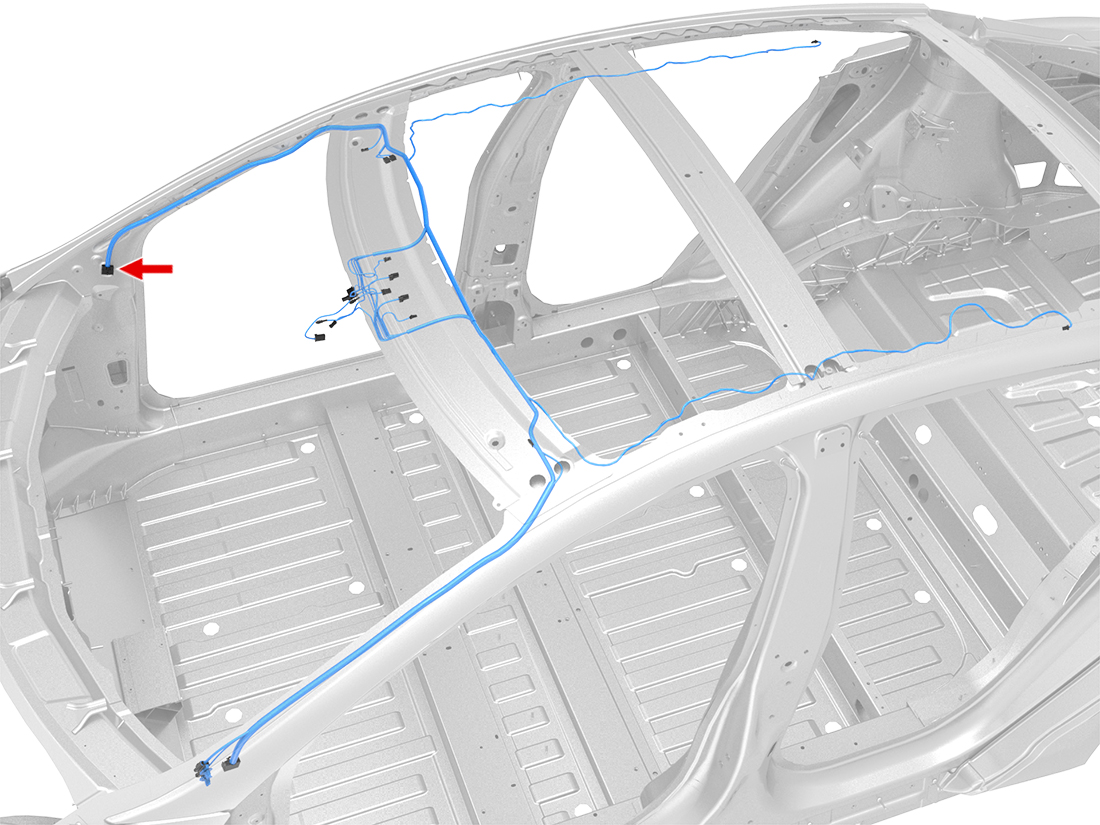

Location:
Connector Detail: Yazaki 7283-6388-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | VT/WH | 0.35 | SN | X075-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 3 | RD/VT | 0.35 | SN | X075-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 4 | YE | 0.35 | SN | X075-2 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 7 | OG | 0.35 | SN | X408A-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 8 | GN | 0.35 | SN | X408A-4 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 9 | BK/WH | 0.35 | SN | X408A-5 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 10 | BK | 0.75 | SN | Z62-+GDC12-R | Yazaki 7116-4721-02 | | 1099569-00-A | |
| 12 | WH | 0.35 | SN | X284-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 13 | GY | 0.35 | SN | X284-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 14 | BU | 0.35 | SN | X285-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 15 | RD/BK | 0.35 | SN | X285-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 16 | GY/WH | 0.35 | SN | X283-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 17 | YE/WH | 0.35 | SN | X283-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 18 | WH/BU | 0.35 | SN | X282-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 19 | RD/WH | 0.35 | SN | X282-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | VT/WH | 0.35 | SN | X075-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 3 | RD/VT | 0.35 | SN | X075-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 4 | YE | 0.35 | SN | X075-2 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 7 | OG | 0.35 | SN | X408A-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 8 | GN | 0.35 | SN | X408A-4 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 9 | BK/WH | 0.35 | SN | X408A-5 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 10 | BK | 0.75 | SN | Z62-+GDC12-R | Yazaki 7116-4721-02 | | 1099569-00-A | |
| 12 | WH | 0.35 | SN | X284-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 13 | GY | 0.35 | SN | X284-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 14 | BU | 0.35 | SN | X285-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 15 | RD/BK | 0.35 | SN | X285-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 16 | GY/WH | 0.35 | SN | X283-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 17 | YE/WH | 0.35 | SN | X283-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 18 | WH/BU | 0.35 | SN | X282-3 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
| 19 | RD/WH | 0.35 | SN | X282-1 | YAZAKI 7116-4720-02 | | 1099568-00-B | |
