X970F - s-rhd-sop10

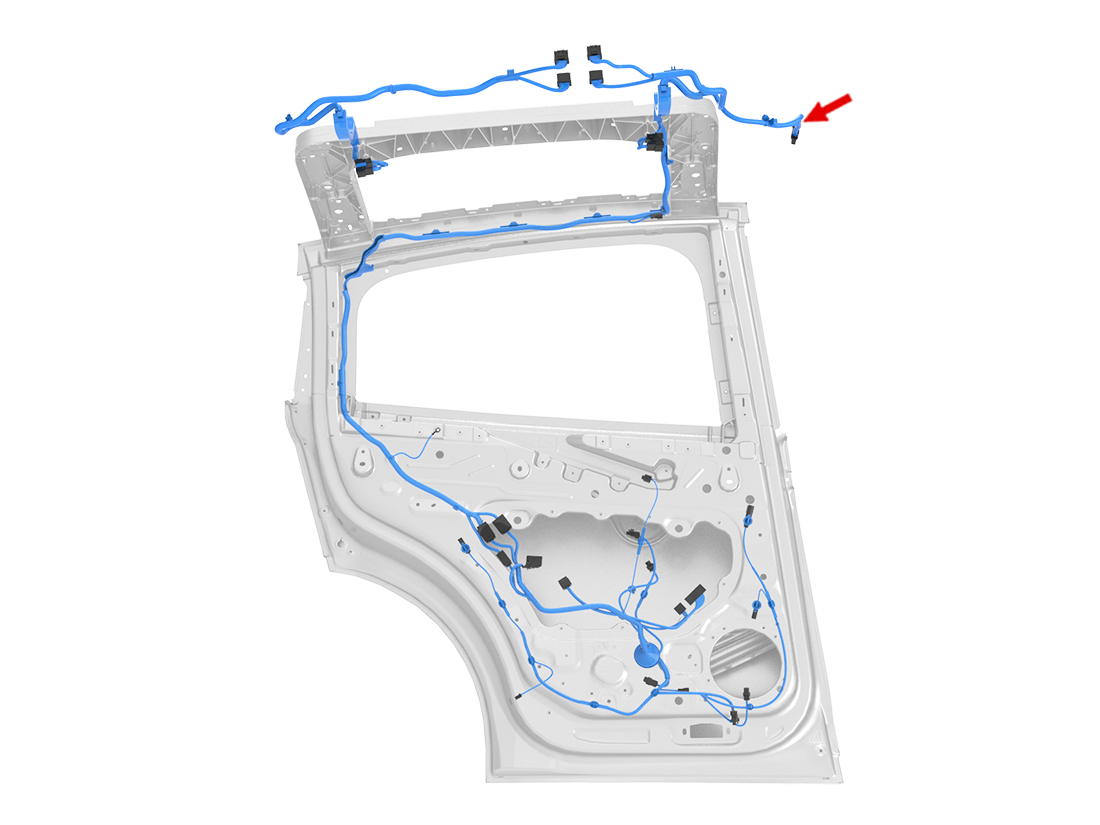

Location:
Location:
Connector Detail: Sumitomo 6098-5662
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-6083
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 1.5 | SN | X423-5 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 2 | RD | 1.5 | SN | X426-5 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 3 | RD | 0.5 | SN | Z1-+PRM13_B-L | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | GY/WH | 0.5 | SN | X150-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | BU | 0.75 | SN | X423-6 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 7 | GN | 0.75 | SN | X423-19 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 8 | VT | 1.5 | SN | X423-17 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 9 | RD/BK | 1.5 | SN | X426-6 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 10 | GY | 0.5 | SN | X150-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | VT | 0.75 | SN | X423-18 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 12 | BK | 0.75 | SN | X423-7 | Sumitomo 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X973F-2 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 2 | RD/GN | 2 | SN | X973F-1 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 3 | RD | 1.5 | SN | X973F-10 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 4 | GY | 1.5 | SN | X973F-18 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 5 | BN | 0.35 | SN | X973F-7 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 6 | BK/WH | 2 | SN | X973F-11 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 8 | OG | 0.35 | SN | X973F-8 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | RD | 0.35 | SN | X973F-16 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 10 | BK | 0.35 | SN | X973F-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 11 | BK | 0.35 | SN | X973F-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 12 | BK | 1 | SN | - | Sumitomo 8240-0213 | 1099539-00-A | ||
| 14 | GN | 0.35 | SN | X973F-4 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 15 | VT | 0.35 | SN | X973F-5 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 16 | GY/WH | 0.35 | SN | X972F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | GY | 0.35 | SN | X972F-22 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X973F-2 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 2 | RD/GN | 2 | SN | X973F-1 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 3 | RD | 1.5 | SN | X973F-10 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 4 | GY | 1.5 | SN | X973F-18 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 5 | BN | 0.35 | SN | X973F-7 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 6 | BK/WH | 2 | SN | X973F-11 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 8 | OG | 0.35 | SN | X973F-8 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | RD | 0.35 | SN | X973F-16 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 10 | BK | 0.35 | SN | X973F-3 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 11 | BK | 0.35 | SN | X973F-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 12 | BK | 1 | SN | - | Sumitomo 8240-0213 | 1099539-00-A | ||
| 14 | GN | 0.35 | SN | X973F-4 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 15 | VT | 0.35 | SN | X973F-5 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 16 | GY/WH | 0.35 | SN | X972F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | GY | 0.35 | SN | X972F-22 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 1.5 | SN | X423-5 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 2 | RD | 1.5 | SN | X426-5 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 3 | RD | 0.5 | SN | Z1-+PRM13_B-L | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | GY/WH | 0.5 | SN | X150-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | BU | 0.75 | SN | X423-6 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 7 | GN | 0.75 | SN | X423-19 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 8 | VT | 1.5 | SN | X423-17 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 9 | RD/BK | 1.5 | SN | X426-6 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 10 | GY | 0.5 | SN | X150-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | VT | 0.75 | SN | X423-18 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 12 | BK | 0.75 | SN | X423-7 | Sumitomo 8240-0213 | 1099539-00-A |
