X970M - s-rhd-sop10

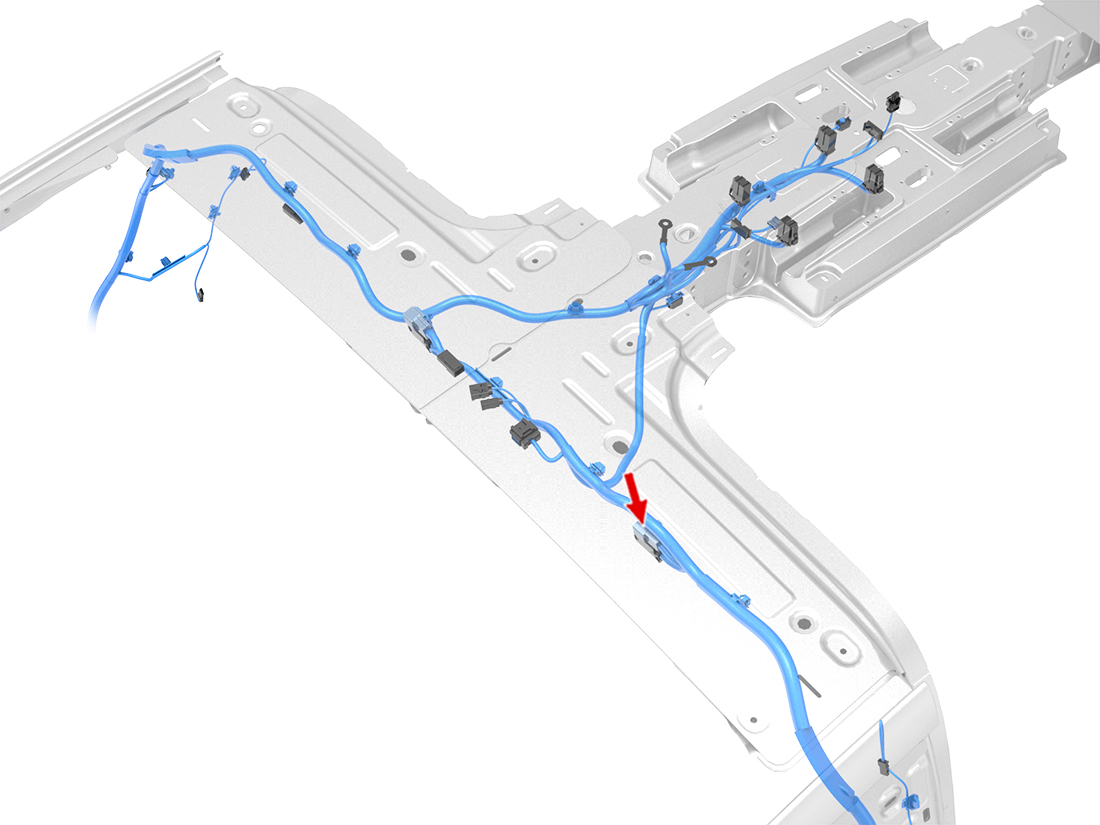

Location:
Location:
Connector Detail: SUMITOMO 6098-5653
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-6055
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 1.5 | SN | X422-1 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 2 | RD | 1.5 | SN | X946M-10 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 3 | RD | 0.5 | SN | X141-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | GY/WH | 0.5 | SN | X129B-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | BU | 0.75 | SN | X922M-1 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 7 | GN | 0.75 | SN | X922M-11 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 8 | VT | 1.5 | SN | X422-2 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 9 | RD/BK | 1.5 | SN | X946M-18 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 10 | GY | 0.5 | SN | X129B-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | VT | 0.75 | SN | X922M-2 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 12 | BK | 0.75 | SN | X922M-12 | Sumitomo 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X020-2 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 2 | RD/GN | 2 | SN | X020-5 | SUMITOMO 8230-4923 | 1099534-00-A | ||
| 3 | RD | 1.5 | SN | X925M-7 | SUMITOMO 8230-4923 | 1099534-00-A | ||
| 4 | GY | 1.5 | SN | X925M-13 | SUMITOMO 8230-4923 | 1099534-00-A | ||
| 5 | BN | 0.35 | SN | X971M-5 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 6 | BK/WH | 2 | SN | GND_LB-1 | SUMITOMO 8230-4923 | 1099534-00-A | ||
| 8 | OG | 0.35 | SN | X201-9 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 9 | RD | 0.35 | SN | X201-10 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 10 | BK | 0.35 | SN | X925M-17 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 11 | BK | 0.35 | SN | X926M-7 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 12 | BK | 1 | SN | GND_LB-1 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 14 | GN | 0.35 | SN | X482-2 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 15 | VT | 0.35 | SN | X971M-17 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 16 | GY/WH | 0.35 | SN | X971M-14 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 17 | GY | 0.35 | SN | X971M-15 | SUMITOMO 8100-3622 | 1099529-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X020-2 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 2 | RD/GN | 2 | SN | X020-5 | SUMITOMO 8230-4923 | 1099534-00-A | ||
| 3 | RD | 1.5 | SN | X925M-7 | SUMITOMO 8230-4923 | 1099534-00-A | ||
| 4 | GY | 1.5 | SN | X925M-13 | SUMITOMO 8230-4923 | 1099534-00-A | ||
| 5 | BN | 0.35 | SN | X971M-5 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 6 | BK/WH | 2 | SN | GND_LB-1 | SUMITOMO 8230-4923 | 1099534-00-A | ||
| 8 | OG | 0.35 | SN | X201-9 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 9 | RD | 0.35 | SN | X201-10 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 10 | BK | 0.35 | SN | X925M-17 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 11 | BK | 0.35 | SN | X926M-7 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 12 | BK | 1 | SN | GND_LB-1 | SUMITOMO 8230-4924 | 1099536-00-A | ||
| 14 | GN | 0.35 | SN | X482-2 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 15 | VT | 0.35 | SN | X971M-17 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 16 | GY/WH | 0.35 | SN | X971M-14 | SUMITOMO 8100-3622 | 1099529-00-A | ||
| 17 | GY | 0.35 | SN | X971M-15 | SUMITOMO 8100-3622 | 1099529-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 1.5 | SN | X422-1 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 2 | RD | 1.5 | SN | X946M-10 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 3 | RD | 0.5 | SN | X141-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | GY/WH | 0.5 | SN | X129B-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | BU | 0.75 | SN | X922M-1 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 7 | GN | 0.75 | SN | X922M-11 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 8 | VT | 1.5 | SN | X422-2 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 9 | RD/BK | 1.5 | SN | X946M-18 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 10 | GY | 0.5 | SN | X129B-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | VT | 0.75 | SN | X922M-2 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 12 | BK | 0.75 | SN | X922M-12 | Sumitomo 8230-4924 | 1099536-00-A |
