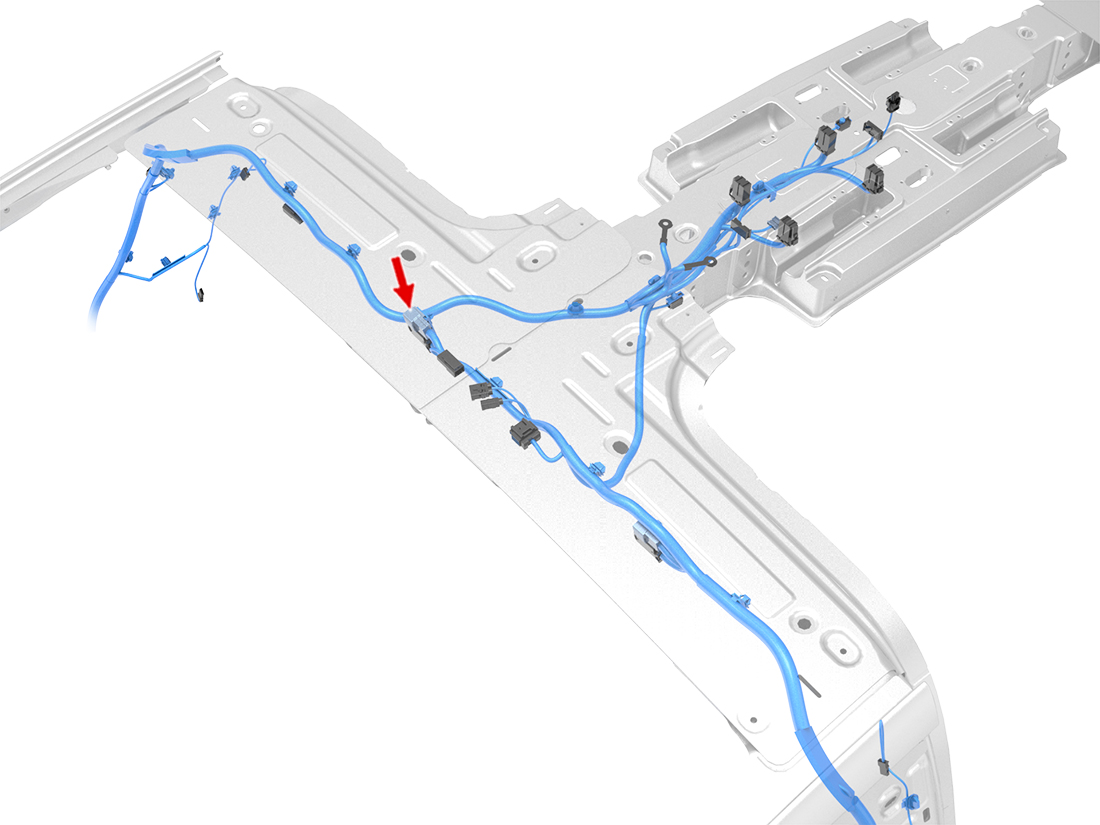

Location:
Connector Detail: SUMITOMO 6098-5650
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 0.75 | SN | X023-3 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 2 | RD/GN | 2 | SN | X024-7 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 3 | RD | 1.5 | SN | X925M-12 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 4 | BU | 1.5 | SN | X925M-18 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 5 | BN | 0.35 | SN | X970M-5 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 6 | BK/WH | 2 | SN | GND_LB-1 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 7 | BK/GY | 0.35 | SN | X976M-4 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 8 | OG | 0.35 | SN | X201-12 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 9 | GN | 0.35 | SN | X201-11 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 10 | BK | 0.35 | SN | X927M-3 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 11 | BK | 0.35 | SN | X927M-5 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 12 | BK | 1 | SN | GND_LB-1 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 14 | GY/WH | 0.35 | SN | X970M-16 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 15 | GY | 0.35 | SN | X970M-17 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 16 | BU/WH | 0.35 | SN | X976M-2 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 17 | VT | 0.35 | SN | X970M-15 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 0.75 | SN | X023-3 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 2 | RD/GN | 2 | SN | X024-7 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 3 | RD | 1.5 | SN | X925M-12 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 4 | BU | 1.5 | SN | X925M-18 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 5 | BN | 0.35 | SN | X970M-5 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 6 | BK/WH | 2 | SN | GND_LB-1 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 7 | BK/GY | 0.35 | SN | X976M-4 | SUMITOMO 8230-4925 | | 1099537-00-A | |
| 8 | OG | 0.35 | SN | X201-12 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 9 | GN | 0.35 | SN | X201-11 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 10 | BK | 0.35 | SN | X927M-3 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 11 | BK | 0.35 | SN | X927M-5 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 12 | BK | 1 | SN | GND_LB-1 | SUMITOMO 8230-4924 | | 1099536-00-A | |
| 14 | GY/WH | 0.35 | SN | X970M-16 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 15 | GY | 0.35 | SN | X970M-17 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 16 | BU/WH | 0.35 | SN | X976M-2 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 17 | VT | 0.35 | SN | X970M-15 | SUMITOMO 8100-3622 | | 1099529-00-A | |
