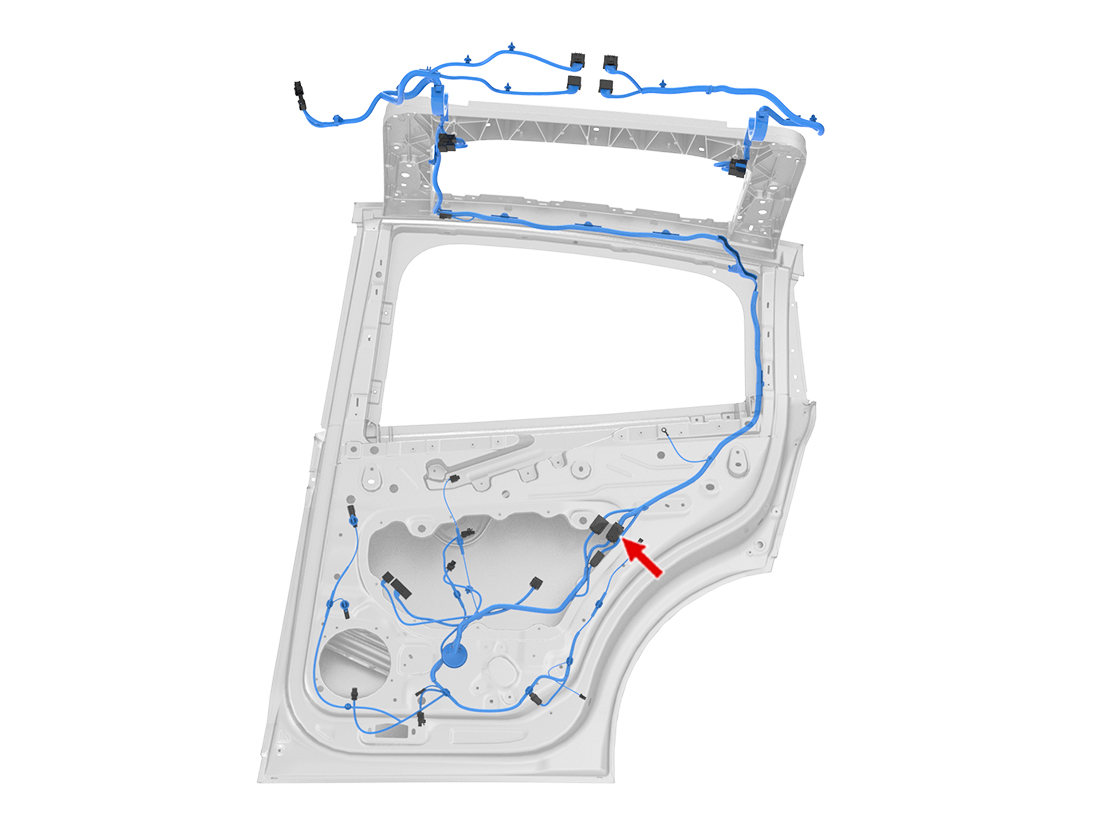

Location:
Connector Detail: Sumitomo 6098-3926
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 8 | BN | 0.5 | SN | X470-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | BN | 0.5 | SN | X469-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | BU | 0.5 | SN | X470-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | BU | 0.5 | SN | X469-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | GY | 0.35 | SN | X662-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | GY | 0.35 | SN | X451-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | VT | 0.35 | SN | X451-18 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 17 | VT | 0.35 | SN | X471-2 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 20 | GY/WH | 0.35 | SN | X662-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | GY/WH | 0.35 | SN | X451-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 8 | BN | 0.5 | SN | X470-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | BN | 0.5 | SN | X469-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | BU | 0.5 | SN | X470-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | BU | 0.5 | SN | X469-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | GY | 0.35 | SN | X662-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | GY | 0.35 | SN | X451-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | VT | 0.35 | SN | X451-18 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 17 | VT | 0.35 | SN | X471-2 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 20 | GY/WH | 0.35 | SN | X662-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | GY/WH | 0.35 | SN | X451-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
