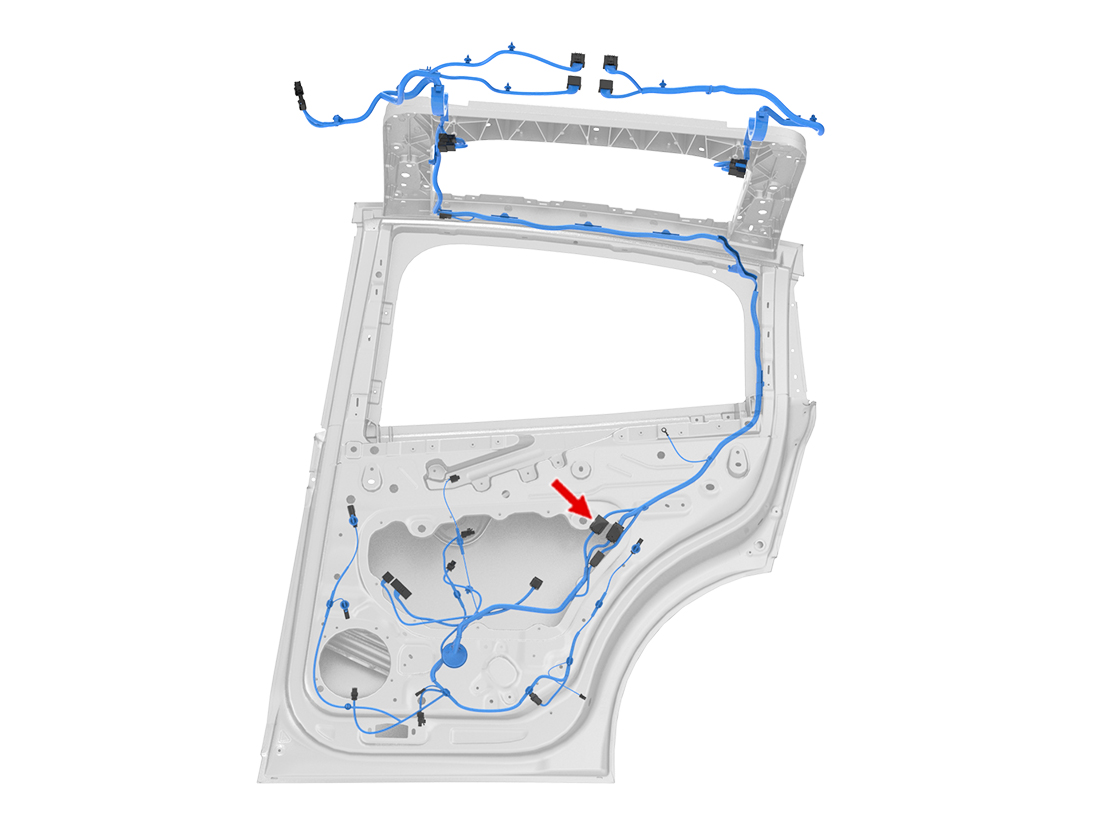

Location:
Connector Detail: Sumitomo 6098-5609
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 2 | SN | X463-3 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 2 | BU | 0.75 | SN | X453-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 3 | BK | 0.35 | SN | X451-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | BK/GY | 0.35 | SN | X471-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 5 | BU/WH | 0.35 | SN | X471-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | BN/WH | 0.35 | SN | X451-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | BN | 0.35 | SN | X451-26 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | OG | 0.35 | SN | X242-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD | 1.5 | SN | GND_JC_RRD_F-2 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 11 | BK/WH | 2 | SN | X463-4 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 13 | BK | 0.35 | SN | X451-11 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 15 | BN | 0.35 | SN | X451-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X242-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | BK | 1 | SN | GND_JC_RRD_F-10 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 18 | BU | 1.5 | SN | GND_JC_RRD_F-5 | Sumitomo 8240-0214 | | 1099540-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 2 | SN | X463-3 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 2 | BU | 0.75 | SN | X453-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 3 | BK | 0.35 | SN | X451-10 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | BK/GY | 0.35 | SN | X471-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 5 | BU/WH | 0.35 | SN | X471-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | BN/WH | 0.35 | SN | X451-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 7 | BN | 0.35 | SN | X451-26 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | OG | 0.35 | SN | X242-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD | 1.5 | SN | GND_JC_RRD_F-2 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 11 | BK/WH | 2 | SN | X463-4 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 13 | BK | 0.35 | SN | X451-11 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 15 | BN | 0.35 | SN | X451-6 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X242-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | BK | 1 | SN | GND_JC_RRD_F-10 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 18 | BU | 1.5 | SN | GND_JC_RRD_F-5 | Sumitomo 8240-0214 | | 1099540-00-A | |
