X976F - s-rhd-sop10

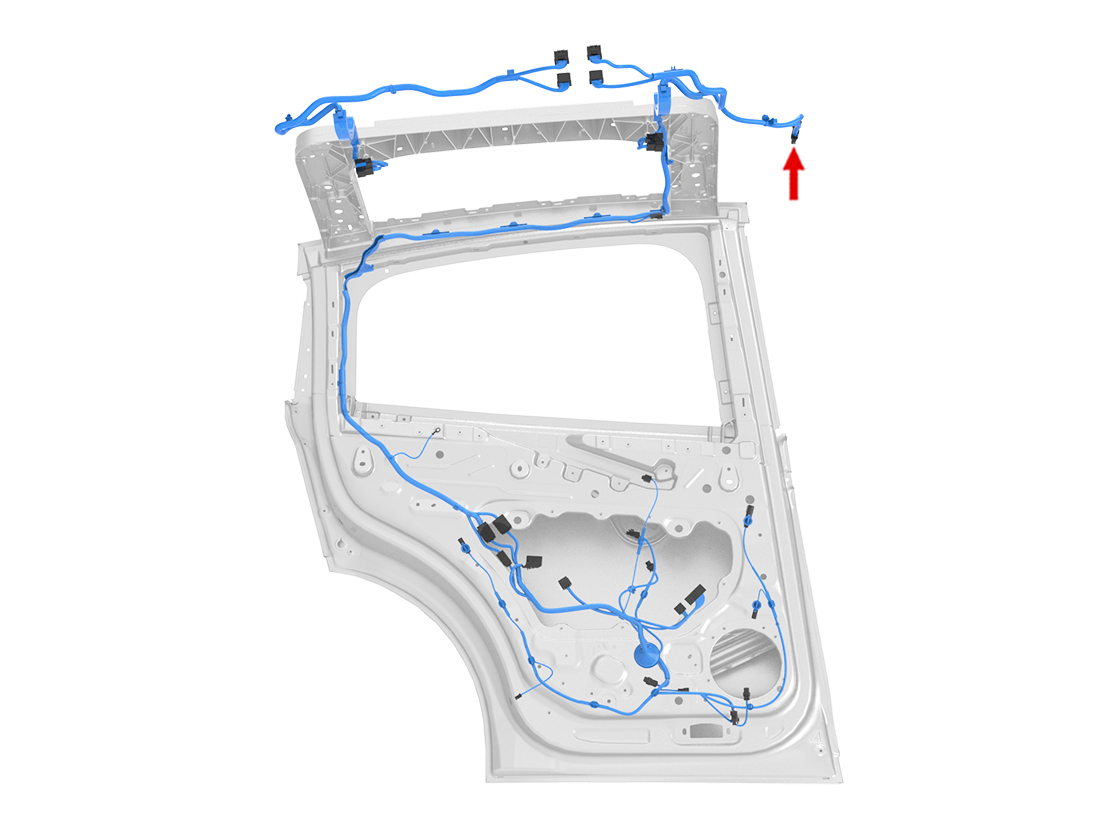

Location:
Location:
Connector Detail: Molex 33472-2001
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-3926
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | OG | 0.35 | SN | X290-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BN/WH | 0.35 | SN | X776-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD/WH | 0.35 | SN | X778-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | GN/WH | 0.35 | SN | X778-7 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | VT | 0.35 | SN | X045-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | WH/BK | 0.35 | SN | X044-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | WH/BK | 0.35 | SN | X049-5 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | RD/GY | 0.35 | SN | X035-4 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | RD/YE | 0.5 | SN | X036-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | BU/WH | 0.35 | SN | X049-8 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 13 | BN | 0.35 | SN | X776-22 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 14 | RD | 0.35 | SN | X778-13 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | GN | 0.35 | SN | X778-18 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 16 | WH | 0.35 | SN | X045-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 16 | WH | 0.35 | SN | X049-4 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 17 | GN | 0.35 | SN | X049-6 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 18 | GY | 0.5 | SN | X035-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 19 | YE/WH | 0.5 | SN | X953M-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 20 | BU | 0.35 | SN | X049-7 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | GY | 0.35 | SN | X972F-19 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 4 | GY/WH | 0.35 | SN | X972F-12 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | GY | 0.35 | SN | X972F-2 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | BK/GY | 0.35 | SN | X972F-17 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | BU/WH | 0.35 | SN | X972F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | BN | 0.35 | SN | X973F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 18 | RD | 0.35 | SN | X972F-4 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 20 | BN/WH | 0.35 | SN | X973F-6 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | GY | 0.35 | SN | X972F-19 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 4 | GY/WH | 0.35 | SN | X972F-12 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | GY | 0.35 | SN | X972F-2 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | BK/GY | 0.35 | SN | X972F-17 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | BU/WH | 0.35 | SN | X972F-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | BN | 0.35 | SN | X973F-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 18 | RD | 0.35 | SN | X972F-4 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 20 | BN/WH | 0.35 | SN | X973F-6 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | OG | 0.35 | SN | X290-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BN/WH | 0.35 | SN | X776-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | RD/WH | 0.35 | SN | X778-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | GN/WH | 0.35 | SN | X778-7 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | VT | 0.35 | SN | X045-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | WH/BK | 0.35 | SN | X044-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | RD/GY | 0.35 | SN | X035-4 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | RD/YE | 0.5 | SN | X036-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 13 | BN | 0.35 | SN | X776-22 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 14 | RD | 0.35 | SN | X778-13 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | GN | 0.35 | SN | X778-18 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 16 | WH | 0.35 | SN | X045-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 18 | GY | 0.5 | SN | X035-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 19 | YE/WH | 0.5 | SN | X953M-11 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
