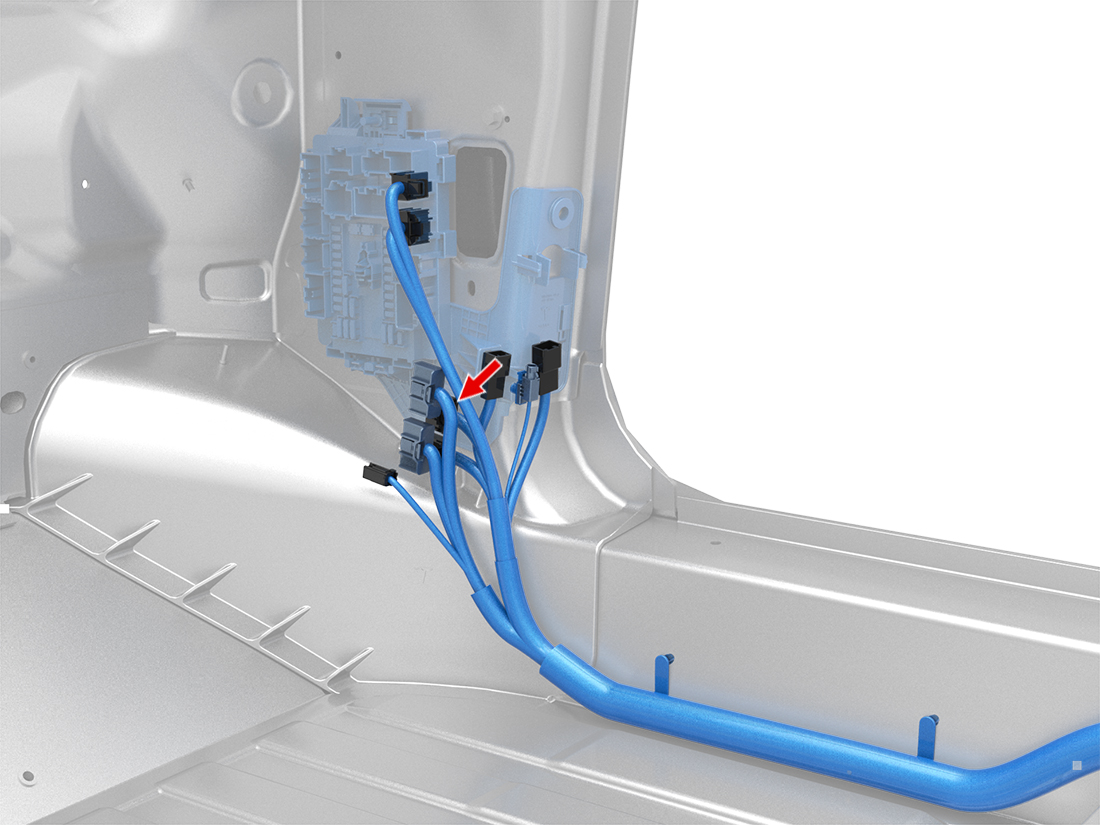

Location:
Connector Detail: Sumitomo 6098-3925
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | RD/WH | 0.35 | SN | X779-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BK/VT | 0.35 | SN | X272-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | YE/WH | 0.35 | SN | X272-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/BK | 0.35 | SN | X921M-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | BN | 0.35 | SN | X129B-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD/VT | 0.35 | SN | X129B-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD/GN | 0.35 | SN | X129B-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | WH | 0.35 | SN | X129B-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | RD | 0.35 | SN | X779-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | WH/BK | 0.35 | SN | X921M-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | VT | 0.35 | SN | X921M-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | BK/WH | 0.35 | SN | X141-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | OG | 0.35 | SN | Z72-SEC46-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | BN/WH | 0.35 | SN | X129B-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | OG/BK | 0.35 | SN | X129B-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | BU/WH | 0.35 | SN | X129B-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | RD/YE | 0.35 | SN | X129B-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | RD/WH | 0.35 | SN | X779-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BK/VT | 0.35 | SN | X272-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | YE/WH | 0.35 | SN | X272-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/BK | 0.35 | SN | X921M-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | BN | 0.35 | SN | X129B-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD/VT | 0.35 | SN | X129B-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD/GN | 0.35 | SN | X129B-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | WH | 0.35 | SN | X129B-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | RD | 0.35 | SN | X779-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | WH/BK | 0.35 | SN | X921M-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | VT | 0.35 | SN | X921M-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | BK/WH | 0.35 | SN | X141-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | OG | 0.35 | SN | Z72-SEC46-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | BN/WH | 0.35 | SN | X129B-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | OG/BK | 0.35 | SN | X129B-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | BU/WH | 0.35 | SN | X129B-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | RD/YE | 0.35 | SN | X129B-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
