X977M - s-rhd-sop10

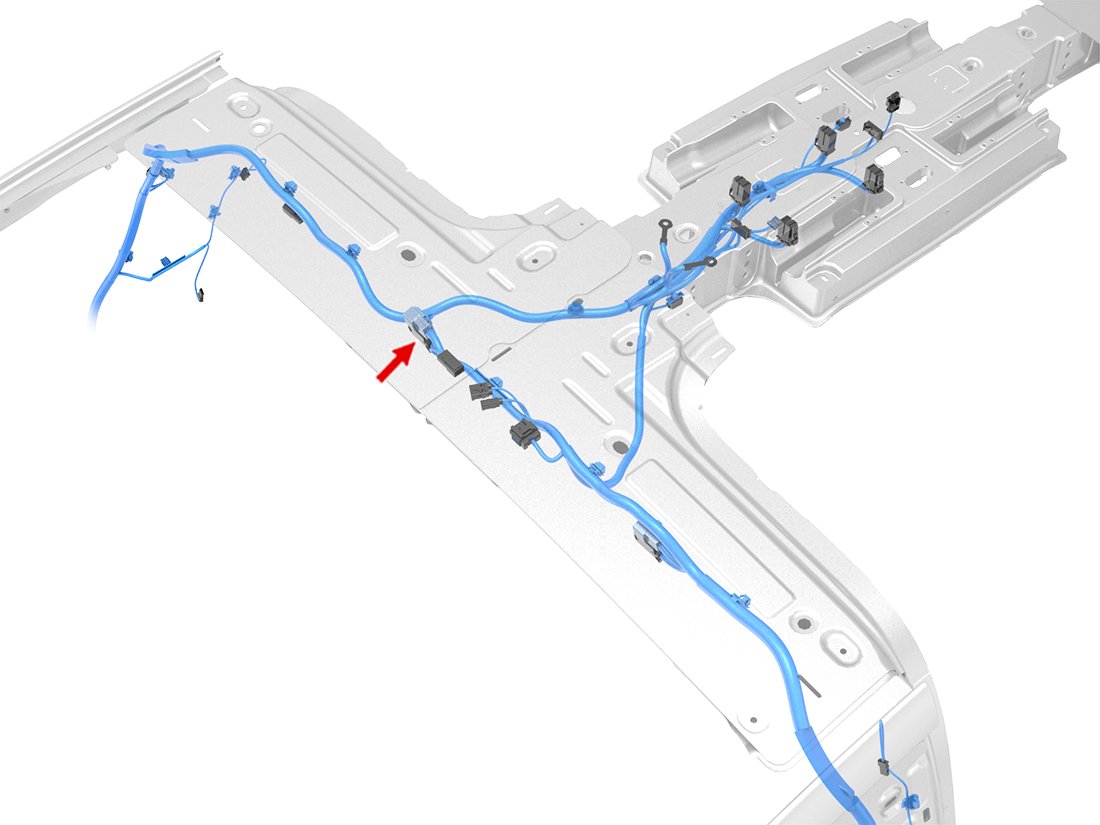

Location:
Location:
Connector Detail: Sumitomo 6098-3885
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: SUMITOMO 6098-3926
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/WH | 0.35 | SN | X777-10 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | BK/VT | 0.35 | SN | X020-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | YE/WH | 0.35 | SN | X020-14 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 7 | RD/BK | 0.5 | SN | X020-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | BN | 0.35 | SN | X963M-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 9 | RD/VT | 0.35 | SN | X963M-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | RD/GN | 0.35 | SN | X963M-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | WH | 0.35 | SN | X963M-4 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | RD | 0.35 | SN | X777-21 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 15 | WH/BK | 0.5 | SN | X020-23 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | VT | 0.5 | SN | X020-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 17 | BK/WH | 0.35 | SN | X020-19 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | OG | 0.35 | SN | X020-12 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 19 | BN/WH | 0.35 | SN | X963M-5 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 20 | OG/BK | 0.35 | SN | X963M-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 21 | BU/WH | 0.35 | SN | X963M-8 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 22 | RD/YE | 0.35 | SN | X963M-7 | Sumitomo 8100-3623 | 1099529-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.13 | SN | X976M-15 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 2 | WH | 0.13 | SN | X070-21 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 3 | BN | 0.13 | SN | X976M-22 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 4 | BN | 0.13 | SN | X070-20 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 6 | BU | 0.35 | SN | X685-13 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 8 | WH | 0.13 | SN | X701-10 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 9 | WH | 0.13 | SN | X685-7 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 10 | GY | 0.13 | SN | X701-21 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 11 | GY | 0.13 | SN | X685-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 12 | GN/WH | 0.35 | SN | X706-10 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 12 | GN/WH | 0.35 | SN | X706A-10 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 13 | GN/WH | 0.35 | SN | X148-3 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 15 | GN | 0.35 | SN | X703-1 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 17 | BN | 0.35 | SN | X685-12 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 19 | GN | 0.35 | SN | X706-21 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 19 | GN | 0.35 | SN | X706A-21 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 20 | GN | 0.35 | SN | X148-4 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 22 | GN/WH | 0.35 | SN | X703-12 | SUMITOMO 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 0.13 | SN | X976M-15 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 2 | WH | 0.13 | SN | X070-21 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 3 | BN | 0.13 | SN | X976M-22 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 4 | BN | 0.13 | SN | X070-20 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 6 | BU | 0.35 | SN | X685-13 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 8 | WH | 0.13 | SN | X701-10 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 9 | WH | 0.13 | SN | X685-7 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 10 | GY | 0.13 | SN | X701-21 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 11 | GY | 0.13 | SN | X685-6 | SUMITOMO 8240-0182 | 1099530-00-A | ||
| 12 | GN/WH | 0.35 | SN | X706-10 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 12 | GN/WH | 0.35 | SN | X706A-10 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 13 | GN/WH | 0.35 | SN | X148-3 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 15 | GN | 0.35 | SN | X703-1 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 17 | BN | 0.35 | SN | X685-12 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 19 | GN | 0.35 | SN | X706-21 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 19 | GN | 0.35 | SN | X706A-21 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 20 | GN | 0.35 | SN | X148-4 | SUMITOMO 8100-3624 | 1099530-00-A | ||
| 22 | GN/WH | 0.35 | SN | X703-12 | SUMITOMO 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/WH | 0.35 | SN | X777-10 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | BK/VT | 0.35 | SN | X020-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | YE/WH | 0.35 | SN | X020-14 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 7 | RD/BK | 0.5 | SN | X020-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | BN | 0.35 | SN | X963M-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 9 | RD/VT | 0.35 | SN | X963M-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | RD/GN | 0.35 | SN | X963M-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | WH | 0.35 | SN | X963M-4 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | RD | 0.35 | SN | X777-21 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 15 | WH/BK | 0.5 | SN | X020-23 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | VT | 0.5 | SN | X020-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 17 | BK/WH | 0.35 | SN | X020-19 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | OG | 0.35 | SN | X020-12 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 19 | BN/WH | 0.35 | SN | X963M-5 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 20 | OG/BK | 0.35 | SN | X963M-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 21 | BU/WH | 0.35 | SN | X963M-8 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 22 | RD/YE | 0.35 | SN | X963M-7 | Sumitomo 8100-3623 | 1099529-00-A |
