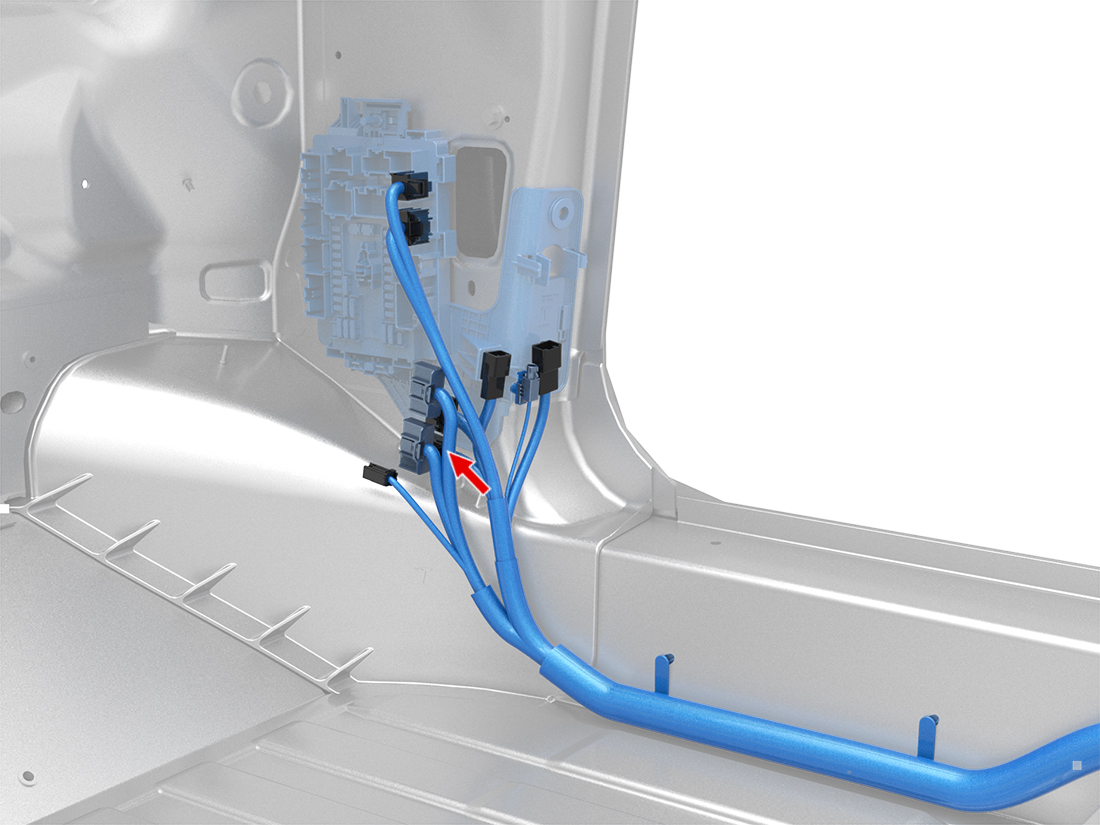

Location:
Connector Detail: Sumitomo 6098-6102
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X932M-5 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 2 | RD/GN | 0.5 | SN | X932M-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | VT | 0.5 | SN | X932M-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | RD/VT | 0.5 | SN | X932M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | BN | 0.5 | SN | X932M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | BK/WH | 0.5 | SN | X932M-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/GY | 2 | SN | X101-8 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 8 | GN | 0.5 | SN | X932M-6 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 9 | BK | 0.5 | SN | X932M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | GY/WH | 0.5 | SN | X932M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | WH | 0.5 | SN | X932M-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X932M-5 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 2 | RD/GN | 0.5 | SN | X932M-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | VT | 0.5 | SN | X932M-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | RD/VT | 0.5 | SN | X932M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | BN | 0.5 | SN | X932M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | BK/WH | 0.5 | SN | X932M-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/GY | 2 | SN | X101-8 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 8 | GN | 0.5 | SN | X932M-6 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 9 | BK | 0.5 | SN | X932M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | GY/WH | 0.5 | SN | X932M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | WH | 0.5 | SN | X932M-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
