X986F - s-rhd-sop10

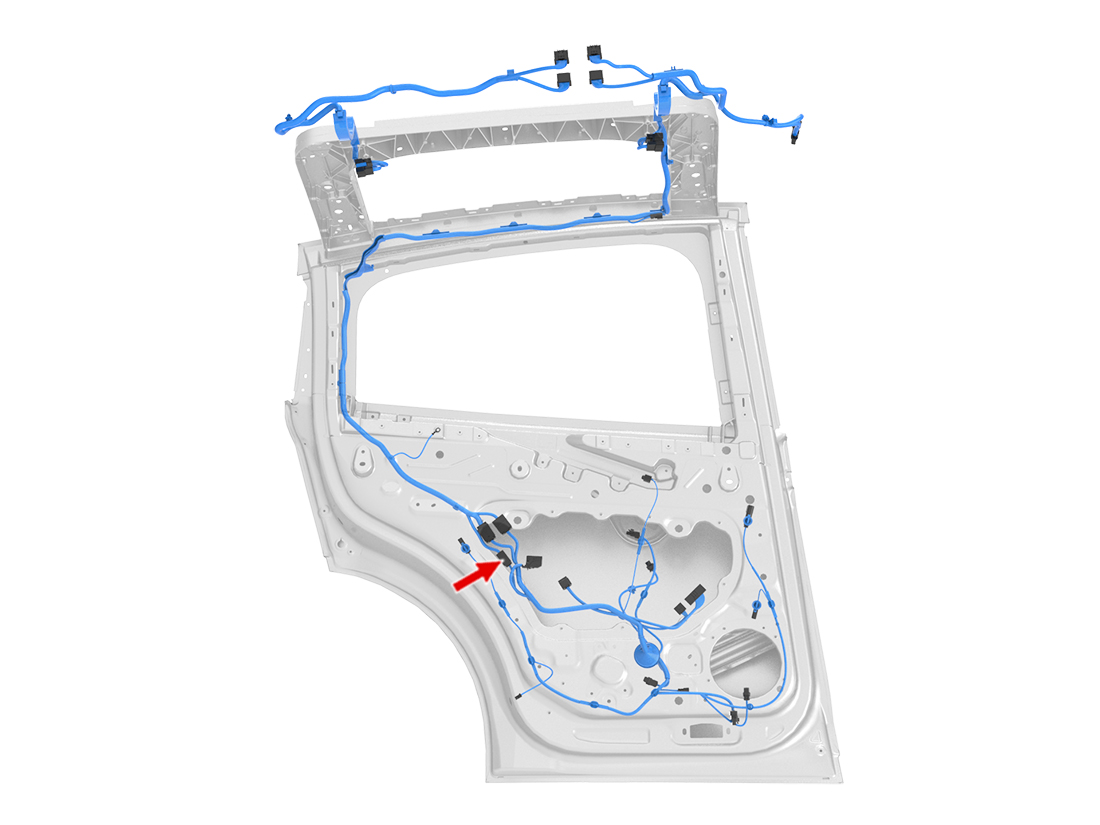

Location:
Connector Detail: Sumitomo 6098-3917
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | GN | 0.35 | SN | X447-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | VT | 0.35 | SN | X447-7 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | GN | 0.35 | SN | X447-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | VT | 0.35 | SN | X447-7 | Sumitomo 8100-3624 | 1099530-00-A |
