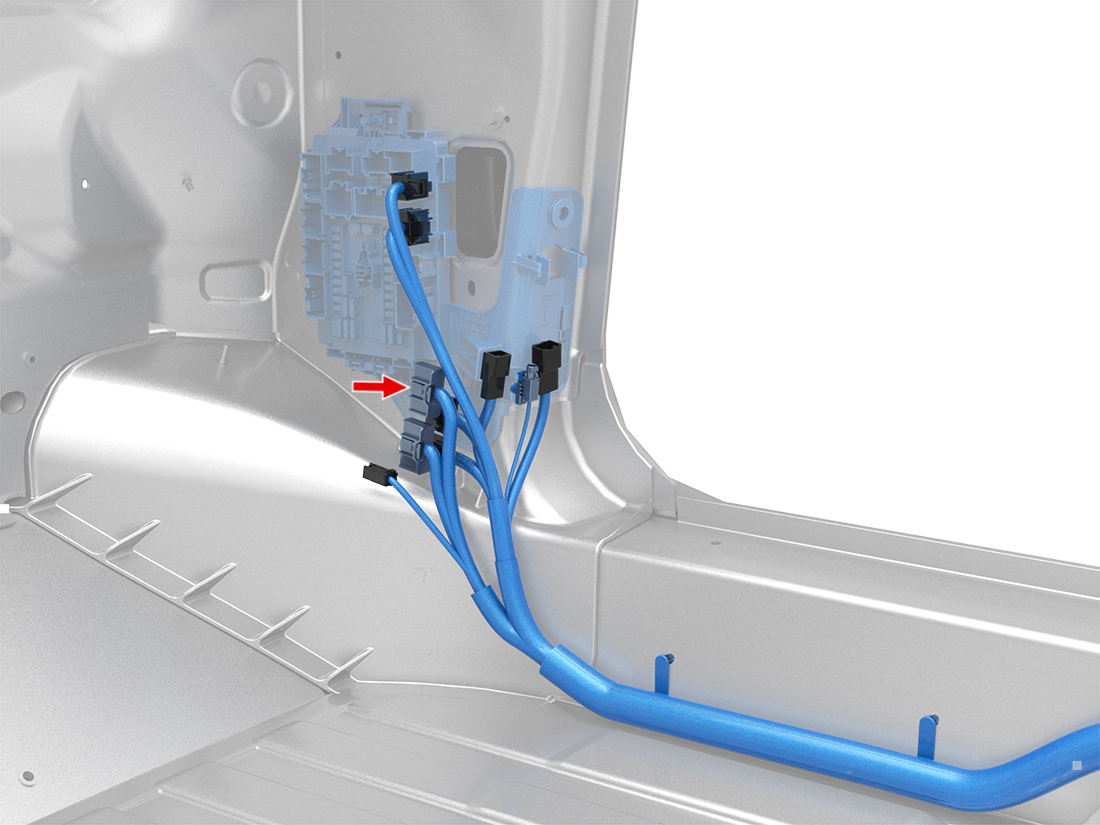

Location:
Connector Detail: Yazaki 7287-1918
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD/WH | 0.5 | SN | X220-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | WH/RD | 0.5 | SN | X218-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | VT | 0.5 | SN | X207-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | RD/GN | 0.5 | SN | X209-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | WH/BK | 0.5 | SN | X221-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | BU | 0.5 | SN | X221-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | RD | 0.35 | SN | X482-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | SI | 0.35 | SN | Z4-SEC09-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | YE | 0.35 | SN | Z84-SEC14-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | WH/RD | 0.35 | SN | X921M-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | BN | 0.35 | SN | X921M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | GY/WH | 0.35 | SN | X921M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BK/GY | 0.5 | SN | X220-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | WH/BU | 0.5 | SN | X218-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | RD/BU | 0.5 | SN | X207-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | BK/WH | 0.5 | SN | X209-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | RD/GY | 0.35 | SN | X921M-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | BK | 0.35 | SN | X482-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | WH/BU | 0.35 | SN | X774-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 23 | BU | 0.35 | SN | X774-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 24 | BN/WH | 0.35 | SN | Z48-EXL25-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 25 | OG | 0.35 | SN | X921M-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 26 | RD/BK | 0.35 | SN | X272-4 | Sumitomo 8240-0215 | | 1099541-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD/WH | 0.5 | SN | X220-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | WH/RD | 0.5 | SN | X218-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | VT | 0.5 | SN | X207-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | RD/GN | 0.5 | SN | X209-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | WH/BK | 0.5 | SN | X221-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | BU | 0.5 | SN | X221-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | RD | 0.35 | SN | X482-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | SI | 0.35 | SN | Z4-SEC09-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | YE | 0.35 | SN | Z84-SEC14-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | WH/RD | 0.35 | SN | X921M-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | BN | 0.35 | SN | X921M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | GY/WH | 0.35 | SN | X921M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BK/GY | 0.5 | SN | X220-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | WH/BU | 0.5 | SN | X218-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | RD/BU | 0.5 | SN | X207-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | BK/WH | 0.5 | SN | X209-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | RD/GY | 0.35 | SN | X921M-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | BK | 0.35 | SN | X482-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | WH/BU | 0.35 | SN | X774-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 23 | BU | 0.35 | SN | X774-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 24 | BN/WH | 0.35 | SN | Z48-EXL25-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 25 | OG | 0.35 | SN | X921M-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 26 | RD/BK | 0.35 | SN | X272-4 | Sumitomo 8240-0215 | | 1099541-00-A | |
