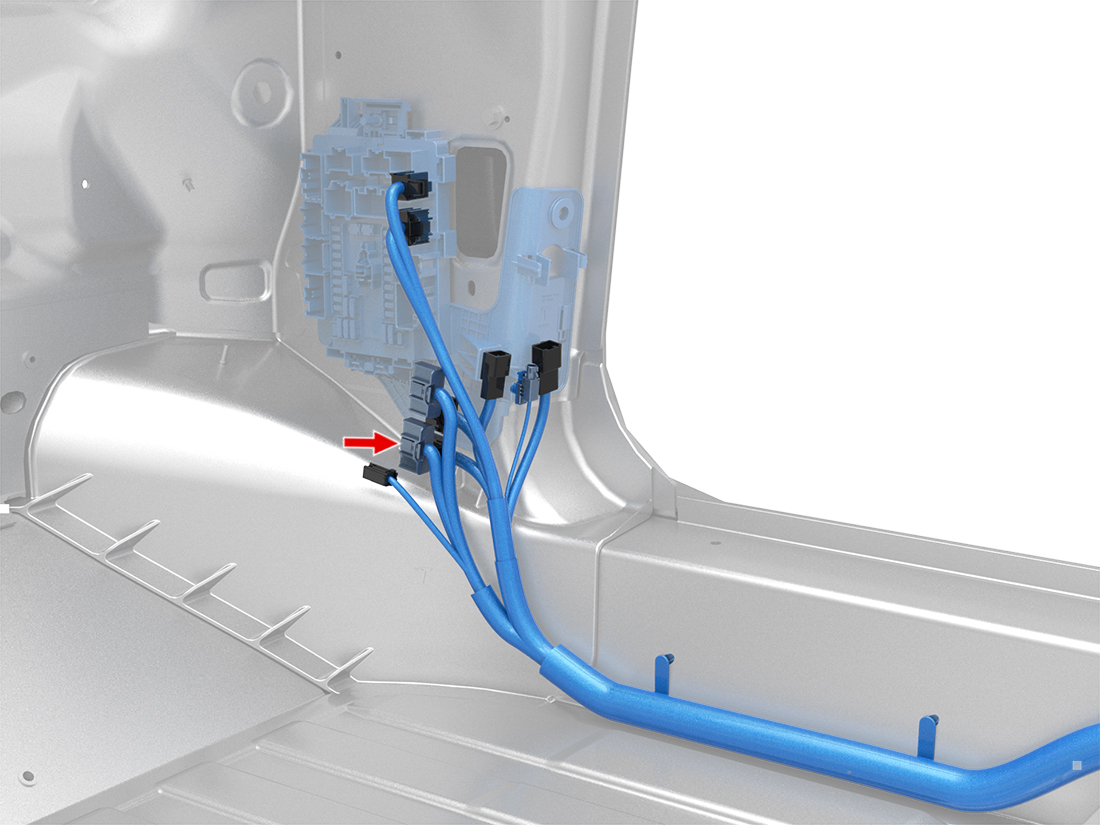

Location:
Connector Detail: Yazaki 7287-1918-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | OG | 0.5 | SN | X931M-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | GY | 0.5 | SN | X931M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | GN | 0.5 | SN | X931M-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | BN/WH | 0.35 | SN | X774-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | WH | 0.35 | SN | X946M-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | GN/WH | 0.5 | SN | X931M-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | RD/BU | 0.5 | SN | X130B-14 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 17 | BU/WH | 0.5 | SN | X931M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | BU | 0.5 | SN | X931M-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | BK/VT | 0.5 | SN | X931M-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BN | 0.35 | SN | X774-20 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 23 | RD/VT | 0.5 | SN | X932M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 24 | BN | 0.5 | SN | X932M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 25 | GY/WH | 0.5 | SN | X932M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | OG | 0.5 | SN | X931M-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | GY | 0.5 | SN | X931M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | GN | 0.5 | SN | X931M-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | BN/WH | 0.35 | SN | X774-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | WH | 0.35 | SN | X946M-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | GN/WH | 0.5 | SN | X931M-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | RD/BU | 0.5 | SN | X130B-14 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 17 | BU/WH | 0.5 | SN | X931M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | BU | 0.5 | SN | X931M-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | BK/VT | 0.5 | SN | X931M-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BN | 0.35 | SN | X774-20 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 23 | RD/VT | 0.5 | SN | X932M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 24 | BN | 0.5 | SN | X932M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 25 | GY/WH | 0.5 | SN | X932M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
