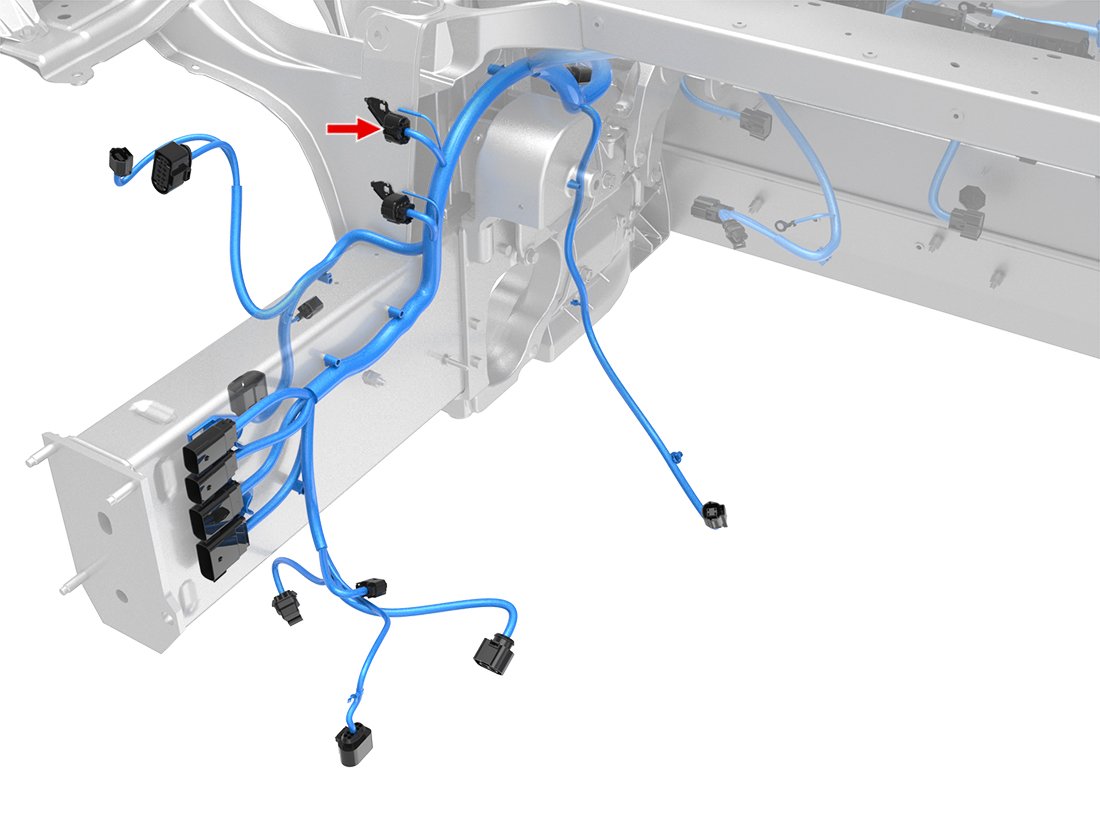

G510 - s-rhd-sop11
Connector Detail: CPT KCRT1384-0200AA
Color:
Serviceability:
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 0.35 | | X071-C | - |
| 1 | BK | 1 | | X077-2 | - |
| 1 | BK | 5 | | X081-3 | - |
| 1 | BK | 0.5 | | X085A-4 | - |
| 1 | BK | 3 | | X086A-1 | - |
| 1 | BK | 4 | | X190A-2 | - |
| 1 | BK | 0.75 | | X964M-12 | - |
| 1 | BK | 0.5 | | X965M-4 | - |
| 1 | BK | 0.75 | | X966M-15 | - |
| 1 | BK | 0.75 | | X966M-5 | - |
| 1 | BK | 1 | | Z92-GDB06-R | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 0.35 | | X071-C | - |
| 1 | BK | 1 | | X077-2 | - |
| 1 | BK | 5 | | X081-3 | - |
| 1 | BK | 0.5 | | X085A-4 | - |
| 1 | BK | 3 | | X086A-1 | - |
| 1 | BK | 4 | | X190A-2 | - |
| 1 | BK | 0.75 | | X964M-12 | - |
| 1 | BK | 0.5 | | X965M-4 | - |
| 1 | BK | 0.75 | | X966M-15 | - |
| 1 | BK | 0.75 | | X966M-5 | - |
| 1 | BK | 1 | | Z92-GDB06-L | - |
