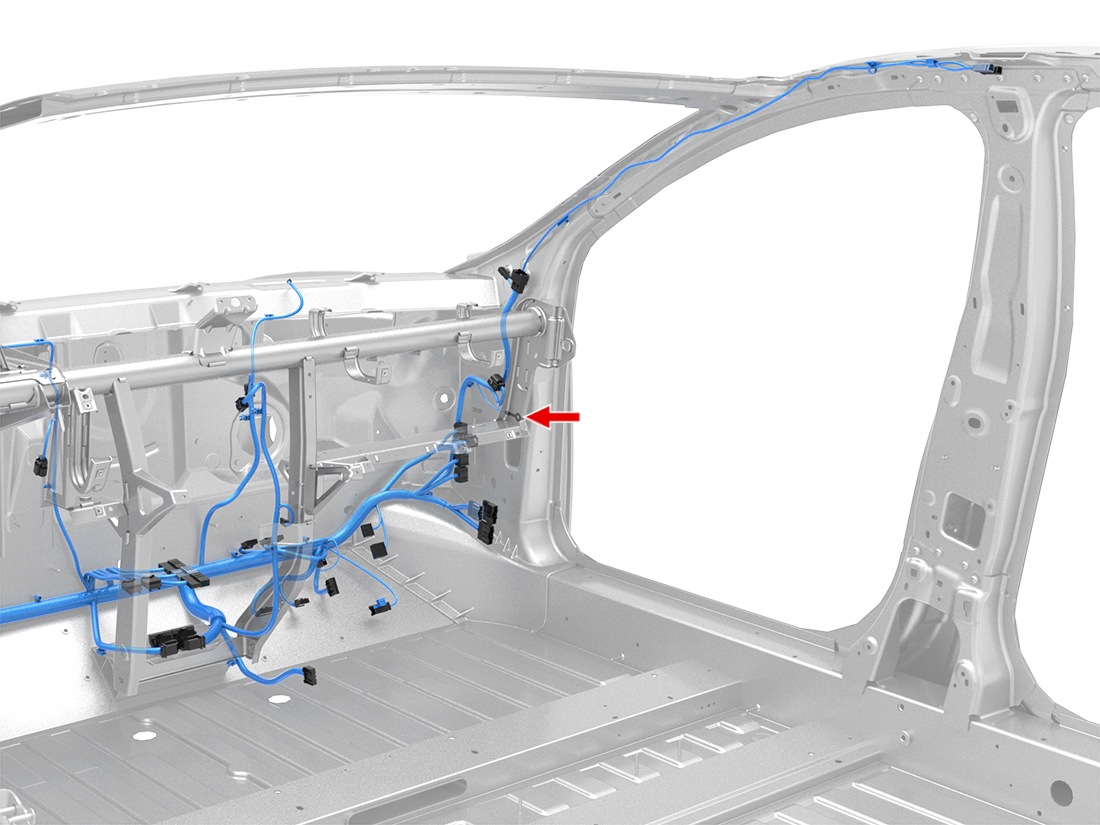

Connector Detail: YAZAKI 7009-2154
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 2 | SN | G660-1 | - |
| 1 | BK | 0.35 | SN | X055-10 | - |
| 1 | BK | 0.35 | SN | X055-9 | - |
| 1 | BK | 2 | SN | X056F-2 | - |
| 1 | BK | 0.5 | SN | X087-1 | - |
| 1 | BK | 1 | SN | X096-2 | - |
| 1 | BK | 2 | SN | X405-7 | - |
| 1 | BK | 0.5 | SN | X579-6 | - |
| 1 | BK | 2 | SN | X919M-2 | - |
| 1 | BK | 2 | SN | X944M-11 | - |
| 1 | BK | 0.35 | SN | X944M-13 | - |
| 1 | BK | 2 | SN | X949M-1 | - |
| 1 | BK | 0.75 | SN | X967M-10 | - |
| 1 | BK/WH | 0.35 | SN | X967M-9 | - |
| 1 | BK | 0.75 | SN | X982F-10 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 2 | SN | G660-1 | - |
| 1 | BK | 0.35 | SN | X055-10 | - |
| 1 | BK | 0.35 | SN | X055-9 | - |
| 1 | BK | 2 | SN | X056F-2 | - |
| 1 | BK | 0.5 | SN | X087-1 | - |
| 1 | BK | 1 | SN | X096-2 | - |
| 1 | BK | 2 | SN | X405-7 | - |
| 1 | BK | 0.5 | SN | X579-6 | - |
| 1 | BK | 2 | SN | X919M-2 | - |
| 1 | BK | 0.35 | SN | X943M-13 | - |
| 1 | BK | 2 | SN | X944M-11 | - |
| 1 | BK | 2 | SN | X949M-1 | - |
| 1 | BK | 0.75 | SN | X967M-10 | - |
| 1 | BK/WH | 0.35 | SN | X967M-9 | - |
| 1 | BK | 0.75 | SN | X982F-10 | - |
