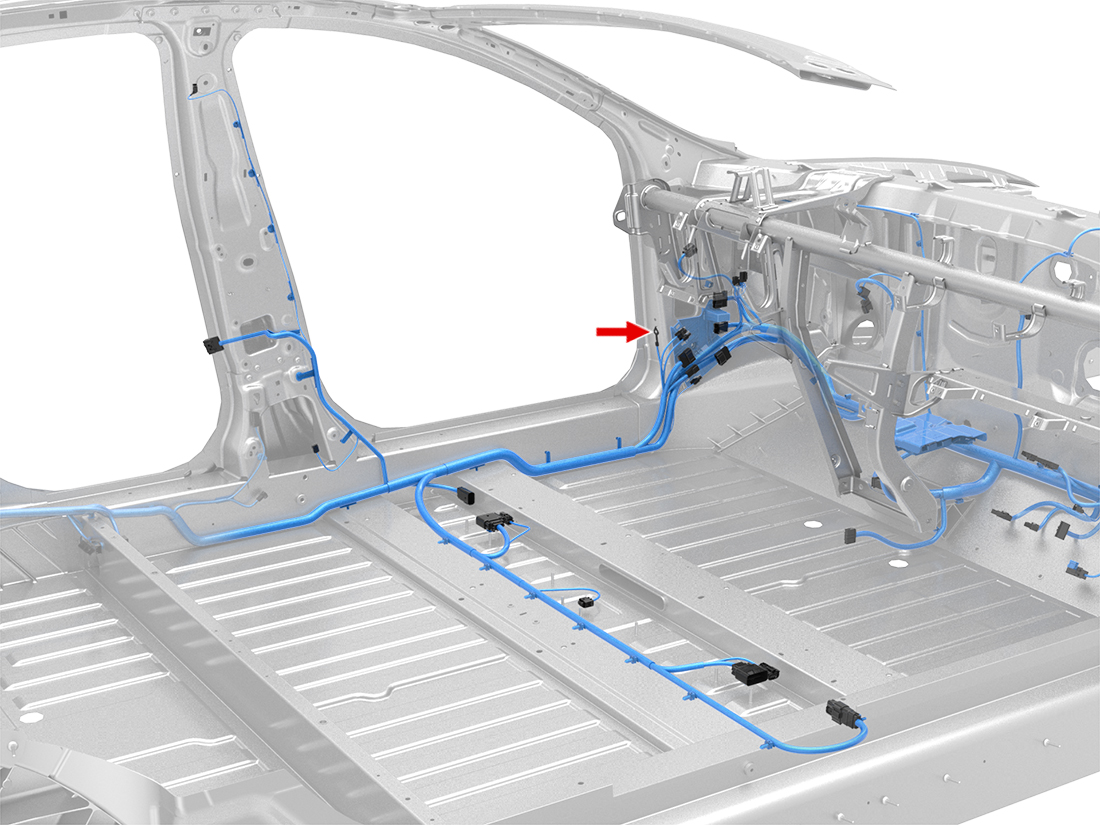

Connector Detail: YAZAKI 7009-2154
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 2 | SN | G640-1 | - |
| 1 | BK | 0.35 | SN | X022-6 | - |
| 1 | BK | 0.35 | SN | X108-1 | - |
| 1 | BK | 0.5 | SN | X200-19 | - |
| 1 | BK | 0.5 | SN | X362-8 | - |
| 1 | BK | 0.35 | SN | X910M-11 | - |
| 1 | BK | 0.35 | SN | X911M-4 | - |
| 1 | BK | 0.5 | SN | X912F-3 | - |
| 1 | BK | 0.35 | SN | X915M-5 | - |
| 1 | BK | 0.35 | SN | X916M-4 | - |
| 1 | BK | 0.5 | SN | X917F-3 | - |
| 1 | BK | 2 | SN | X943M-11 | - |
| 1 | BK | 1.5 | SN | X947M-3 | - |
| 1 | BK | 1.5 | SN | X947M-4 | - |
| 1 | BK | 1 | SN | X948M-12 | - |
| 1 | BK | 2 | SN | X948M-18 | - |
| 1 | BK | 1 | SN | X949M-15 | - |
| 1 | BK | 1 | SN | X982F-18 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 2 | SN | G640-1 | - |
| 1 | BK | 0.35 | SN | X022-6 | - |
| 1 | BK | 0.35 | SN | X108-1 | - |
| 1 | BK | 0.5 | SN | X200-19 | - |
| 1 | BK | 0.5 | SN | X362-8 | - |
| 1 | BK | 0.35 | SN | X910M-5 | - |
| 1 | BK | 0.35 | SN | X911M-4 | - |
| 1 | BK | 0.5 | SN | X912F-3 | - |
| 1 | BK | 0.35 | SN | X915M-11 | - |
| 1 | BK | 0.35 | SN | X916M-4 | - |
| 1 | BK | 0.5 | SN | X917F-3 | - |
| 1 | BK | 2 | SN | X943M-11 | - |
| 1 | BK | 1.5 | SN | X947M-3 | - |
| 1 | BK | 1.5 | SN | X947M-4 | - |
| 1 | BK | 1 | SN | X948M-12 | - |
| 1 | BK | 2 | SN | X948M-18 | - |
| 1 | BK | 1 | SN | X949M-15 | - |
| 1 | BK | 1 | SN | X982F-18 | - |
