X014 - s-rhd-sop11

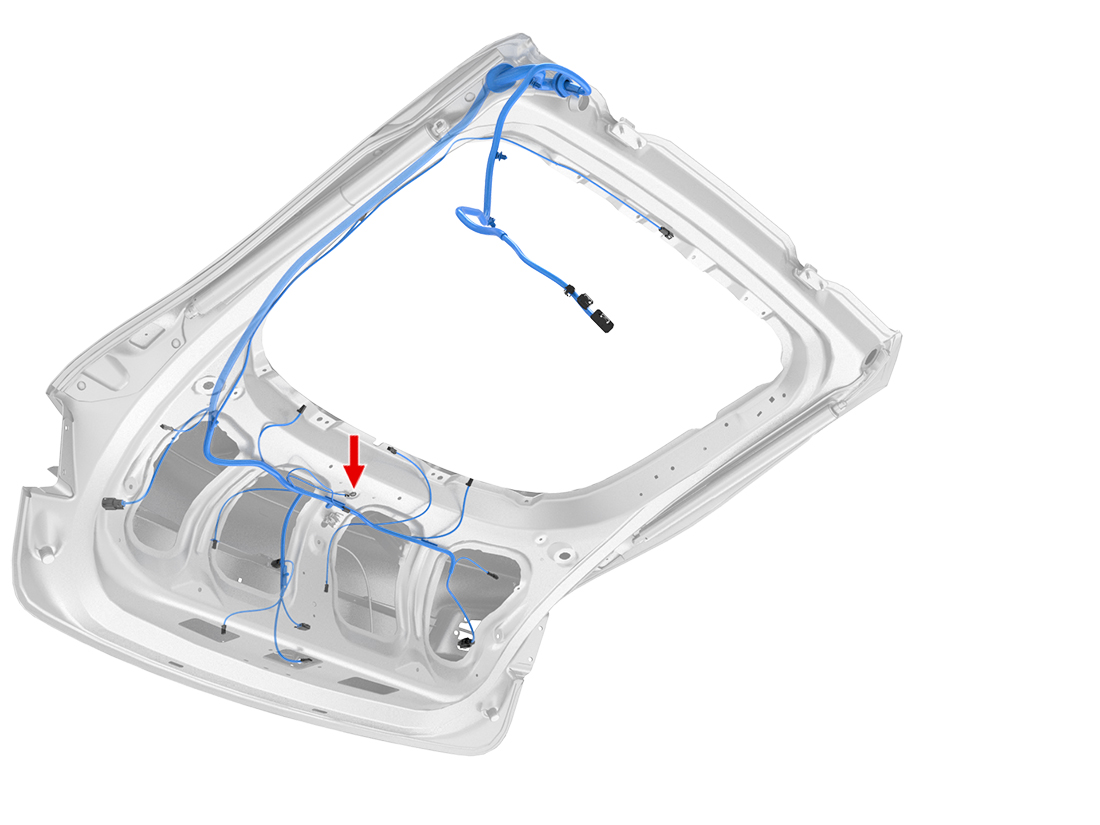

Location:
Connector Detail: YAZAKI 7009-1323-02
Color: SN
Serviceability: Not Serviceable
Cavity
Color
Size
Plate
Destination
Terminal
1
BK
1
SN
Z46-GDL01-R
-
Cavity
Color
Size
Plate
Destination
Terminal
1
BK
1
SN
Z46-GDL01-R
-
