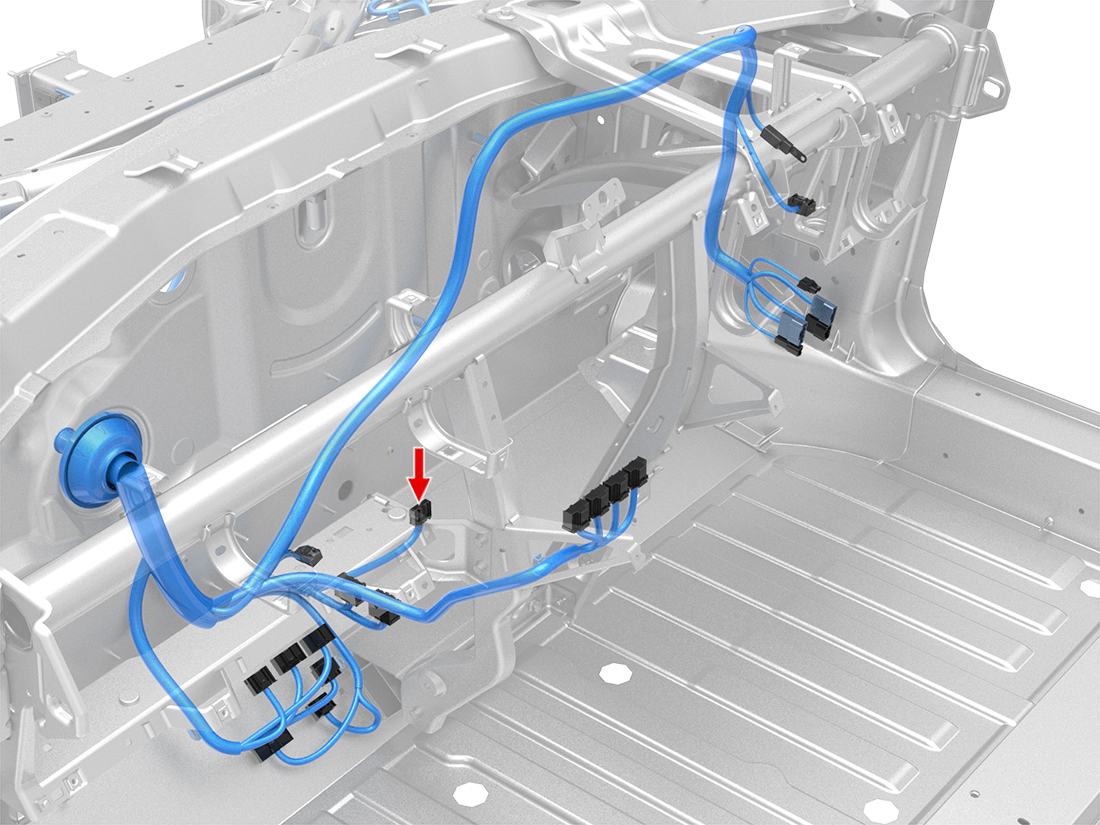

Connector Detail: JAE MX34024SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/RD | 0.35 | SN | X964M-6 | JAE M34S75C4F1 | | 1099499-00-B | |
| 2 | YE | 0.35 | SN | X964M-3 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | RD/BK | 0.5 | SN | X977M-7 | JAE M34S75C4F2 | | 1099500-00-A | |
| 4 | WH/BU | 0.35 | SN | X955F-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 5 | GY/WH | 0.35 | SN | X955F-13 | JAE M34S75C4F1 | | 1099499-00-B | |
| 6 | VT | 0.5 | SN | X977M-16 | JAE M34S75C4F2 | | 1099500-00-A | |
| 7 | BN | 0.35 | SN | X261-7 | JAE M34S75C4F1 | | 1099499-00-B | |
| 8 | VT | 0.35 | SN | X262-7 | JAE M34S75C4F1 | | 1099499-00-B | |
| 9 | RD/WH | 0.35 | SN | X964M-5 | JAE M34S75C4F1 | | 1099499-00-B | |
| 10 | BU | 0.35 | SN | X964M-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 11 | GN/WH | 0.35 | SN | X964M-1 | JAE M34S75C4F1 | | 1099499-00-B | |
| 12 | OG | 0.35 | SN | X977M-18 | JAE M34S75C4F1 | | 1099499-00-B | |
| 13 | RD/BU | 0.35 | SN | X955F-14 | JAE M34S75C4F1 | | 1099499-00-B | |
| 14 | YE/WH | 0.35 | SN | X977M-5 | JAE M34S75C4F1 | | 1099499-00-B | |
| 17 | WH/RD | 0.35 | SN | X955F-3 | JAE M34S75C4F1 | | 1099499-00-B | |
| 18 | BK/VT | 0.35 | SN | X977M-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 19 | BK/WH | 0.35 | SN | X977M-17 | JAE M34S75C4F1 | | 1099499-00-B | |
| 20 | WH | 0.35 | SN | X966M-17 | JAE M34S75C4F1 | | 1099499-00-B | |
| 21 | GY | 0.35 | SN | X261-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 22 | GN | 0.35 | SN | X262-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 23 | WH/BK | 0.5 | SN | X977M-15 | JAE M34S75C4F2 | | 1099500-00-A | |
| 24 | BU/WH | 0.35 | SN | X964M-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/RD | 0.35 | SN | X964M-6 | JAE M34S75C4F1 | | 1099499-00-B | |
| 2 | YE | 0.35 | SN | X964M-3 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | RD/BK | 0.5 | SN | X977M-7 | JAE M34S75C4F2 | | 1099500-00-A | |
| 4 | WH/BU | 0.35 | SN | X955F-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 5 | GY/WH | 0.35 | SN | X955F-13 | JAE M34S75C4F1 | | 1099499-00-B | |
| 6 | VT | 0.5 | SN | X977M-16 | JAE M34S75C4F2 | | 1099500-00-A | |
| 7 | BN | 0.35 | SN | X261-7 | JAE M34S75C4F1 | | 1099499-00-B | |
| 8 | VT | 0.35 | SN | X262-7 | JAE M34S75C4F1 | | 1099499-00-B | |
| 9 | RD/WH | 0.35 | SN | X964M-5 | JAE M34S75C4F1 | | 1099499-00-B | |
| 10 | BU | 0.35 | SN | X964M-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 11 | GN/WH | 0.35 | SN | X964M-1 | JAE M34S75C4F1 | | 1099499-00-B | |
| 12 | OG | 0.35 | SN | X977M-18 | JAE M34S75C4F1 | | 1099499-00-B | |
| 13 | RD/BU | 0.35 | SN | X955F-14 | JAE M34S75C4F1 | | 1099499-00-B | |
| 14 | YE/WH | 0.35 | SN | X977M-5 | JAE M34S75C4F1 | | 1099499-00-B | |
| 17 | WH/RD | 0.35 | SN | X955F-3 | JAE M34S75C4F1 | | 1099499-00-B | |
| 18 | BK/VT | 0.35 | SN | X977M-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 19 | BK/WH | 0.35 | SN | X977M-17 | JAE M34S75C4F1 | | 1099499-00-B | |
| 20 | WH | 0.35 | SN | X966M-17 | JAE M34S75C4F1 | | 1099499-00-B | |
| 21 | GY | 0.35 | SN | X261-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 22 | GN | 0.35 | SN | X262-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 23 | WH/BK | 0.5 | SN | X977M-15 | JAE M34S75C4F2 | | 1099500-00-A | |
| 24 | BU/WH | 0.35 | SN | X964M-4 | JAE M34S75C4F1 | | 1099499-00-B | |
