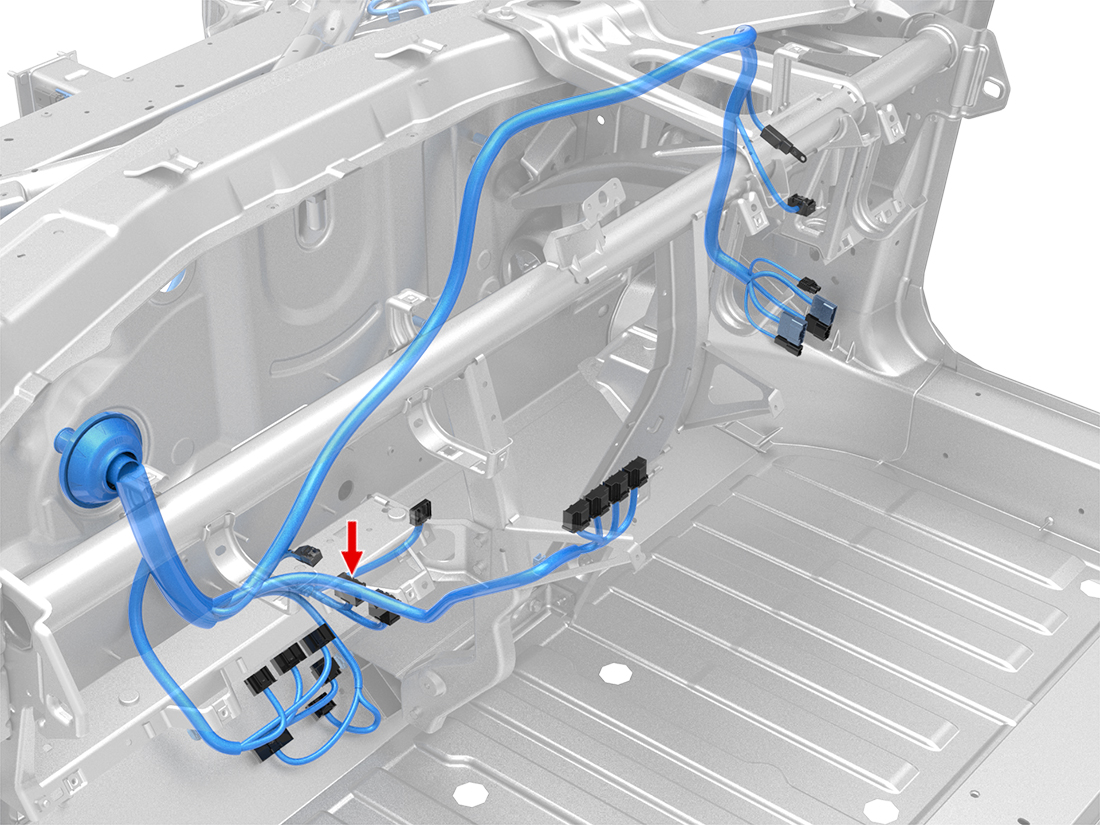

Connector Detail: YAZAKI 7283-6467-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | 2 | SN | G520-1 | YAZAKI 7116-4272-02 | | 1099564-00-A | |
| 2 | RD/BK | 1 | SN | X261-6 | YAZAKI 7116-4271-02 | | 1099563-00-A | |
| 4 | RD/GY | 1 | SN | X262-6 | YAZAKI 7116-4271-02 | | 1099563-00-A | |
| 5 | BU | 0.5 | SN | X563-41 | YAZAKI 7116-4270-02 | | 1099562-00-A | |
| 6 | RD/WH | 2 | SN | X563-25 | YAZAKI 7116-4272-02 | | 1099564-00-A | |
