X030 - s-rhd-sop11

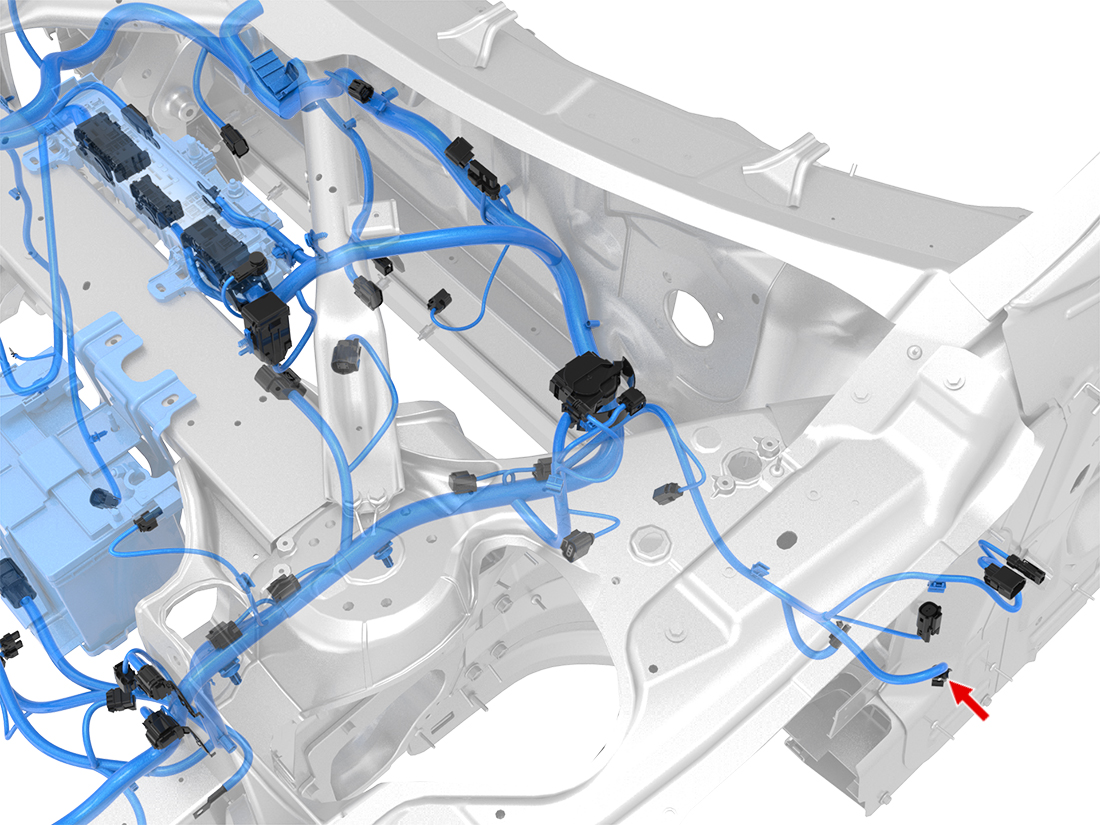

Location:
Connector Detail: DELPHI 12052641
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | RD/BK | 0.5 | SN | X955F-11 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| B | BK | 0.5 | SN | G500-1 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | RD/BK | 0.5 | SN | X955F-11 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| B | BK | 0.5 | SN | G500-1 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B |
