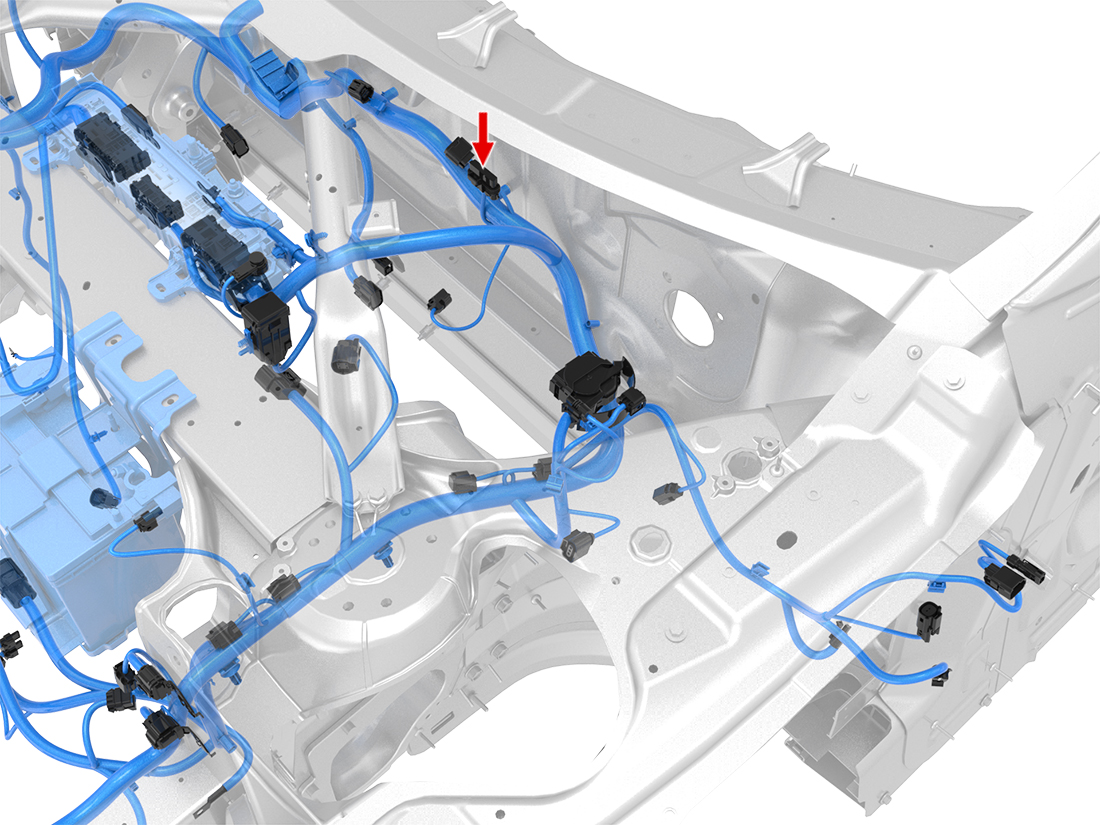

Connector Detail: DELPHI 12084891
Color: DarkGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| B | VT | 1 | SN | X563-36 | DELPHI 12077411 | DELPHI 15324985 | 1099476-00-B | |
| C | BK | 2 | SN | G520-1 | DELPHI 12077412 | DELPHI 15324982 | 1116663-00-B | |
| D | BN | 2 | SN | X563-26 | DELPHI 12077412 | DELPHI 15324982 | 1116663-00-B | |
| E | RD | 1 | SN | X563-37 | DELPHI 12077411 | DELPHI 15324985 | 1099476-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| B | VT | 1 | SN | X563-36 | DELPHI 12077411 | DELPHI 15324985 | 1099476-00-B | |
| C | BK | 2 | SN | G520-1 | DELPHI 12077412 | DELPHI 15324982 | 1116663-00-B | |
| D | BN | 2 | SN | X563-26 | DELPHI 12077412 | DELPHI 15324982 | 1116663-00-B | |
| E | RD | 1 | SN | X563-37 | DELPHI 12077411 | DELPHI 15324985 | 1099476-00-B | |
