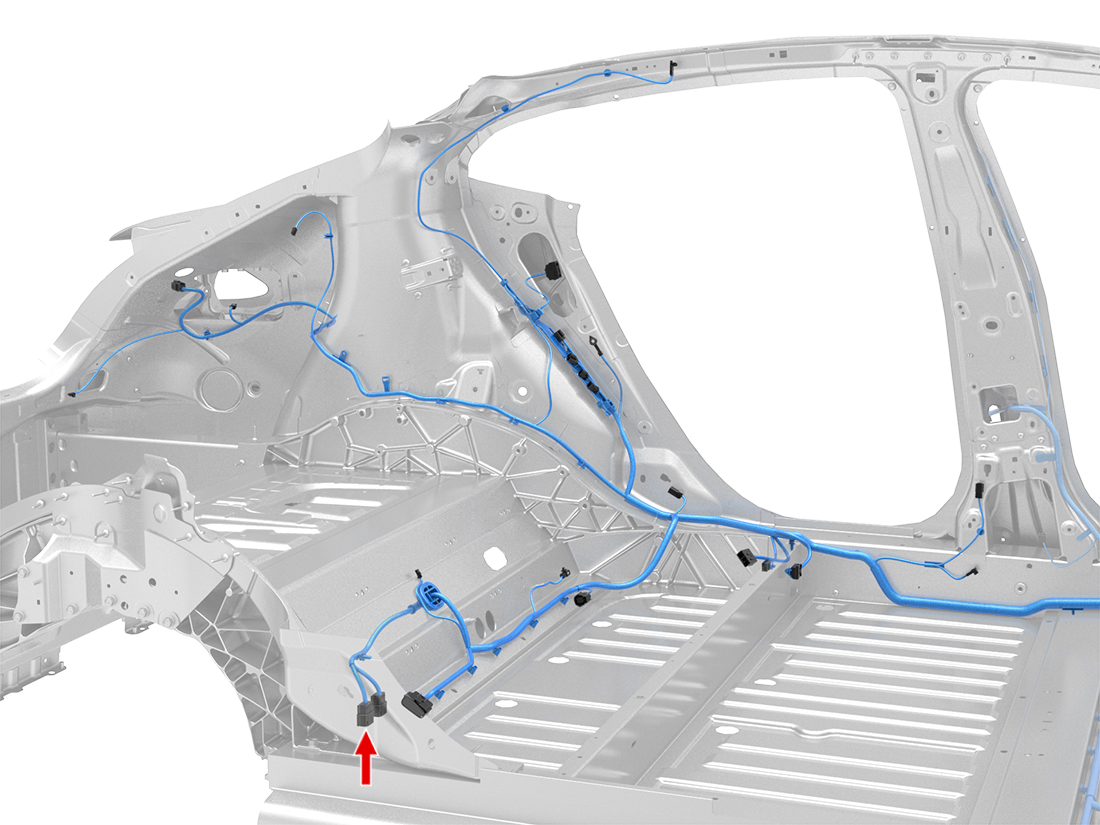

Connector Detail: MOLEX 33472-1201
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.5 | SN | X976F-18 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | RD/BU | 0.35 | SN | X571-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | RD/GY | 0.35 | SN | X976F-8 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | GN | 0.75 | SN | Z79-BMS01_C-R | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | RD/BK | 0.35 | SN | X953M-13 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | YE | 0.5 | SN | X953M-12 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | BK | 0.5 | SN | G720-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.5 | SN | X976F-18 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | RD/BU | 0.35 | SN | X571-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | RD/GY | 0.35 | SN | X976F-8 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | GN | 0.75 | SN | Z78-BMS01_C-R | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | RD/BK | 0.35 | SN | X953M-13 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | YE | 0.5 | SN | X953M-12 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | BK | 0.5 | SN | G720-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
