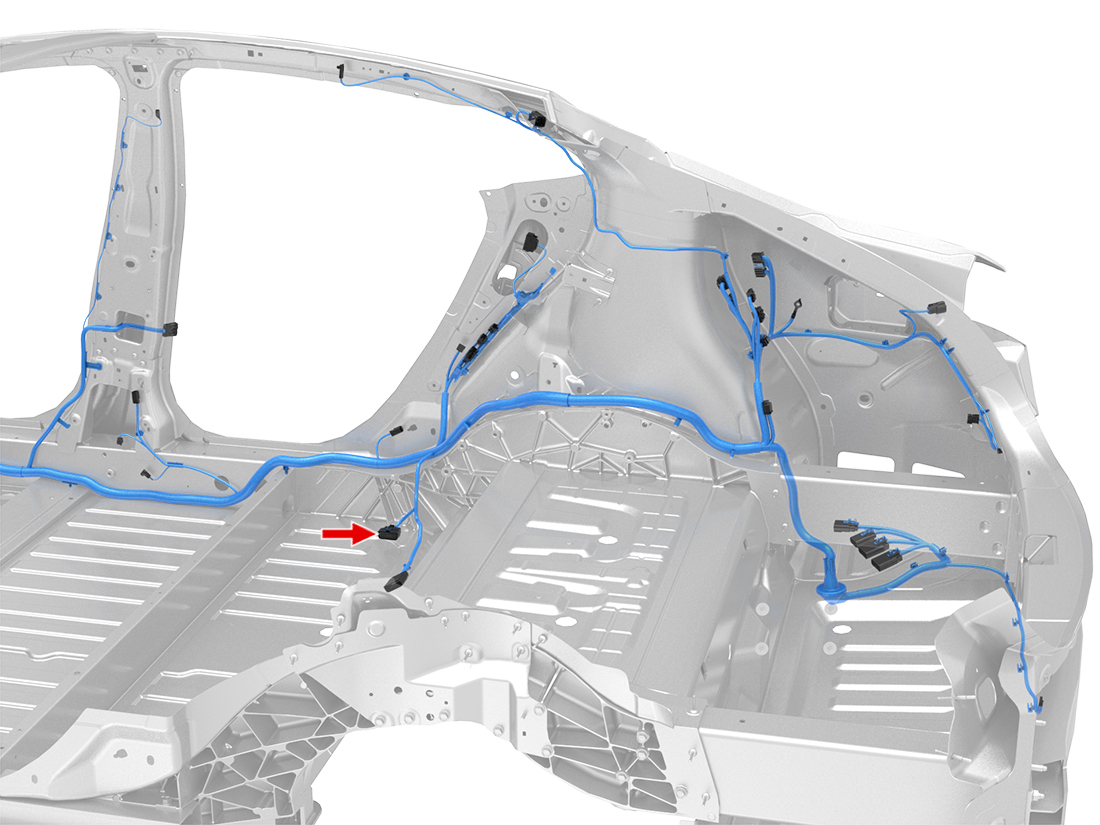

Connector Detail: MOLEX 33472-2006
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BU | 0.5 | SN | X573-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | WH/BK | 0.35 | SN | X976M-7 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | YE/WH | 0.5 | SN | X976M-19 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X779-16 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | VT | 0.35 | SN | X976M-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | RD/GY | 0.35 | SN | X976M-8 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | GN | 0.35 | SN | X976M-17 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | BU | 0.35 | SN | X976M-20 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 11 | BK | 0.5 | SN | G700-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | VT/WH | 0.75 | SN | X931M-14 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 13 | YE | 0.5 | SN | X931M-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 14 | RD/WH | 0.5 | SN | X779-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 15 | WH | 0.35 | SN | X976M-16 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 16 | GY | 0.5 | SN | X976M-18 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 19 | BU/WH | 0.35 | SN | X976M-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BU | 0.5 | SN | X573-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | WH/BK | 0.35 | SN | X976M-7 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | YE/WH | 0.5 | SN | X976M-19 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X779-16 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | VT | 0.35 | SN | X976M-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | RD/GY | 0.35 | SN | X976M-8 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 8 | GN | 0.35 | SN | X976M-17 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 9 | BU | 0.35 | SN | X976M-20 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 11 | BK | 0.5 | SN | G700-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 12 | VT/WH | 0.75 | SN | X931M-14 | MOLEX 33012-3002 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 13 | YE | 0.5 | SN | X931M-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 14 | RD/WH | 0.5 | SN | X779-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 15 | WH | 0.35 | SN | X976M-16 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 16 | GY | 0.5 | SN | X976M-18 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 19 | BU/WH | 0.35 | SN | X976M-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
