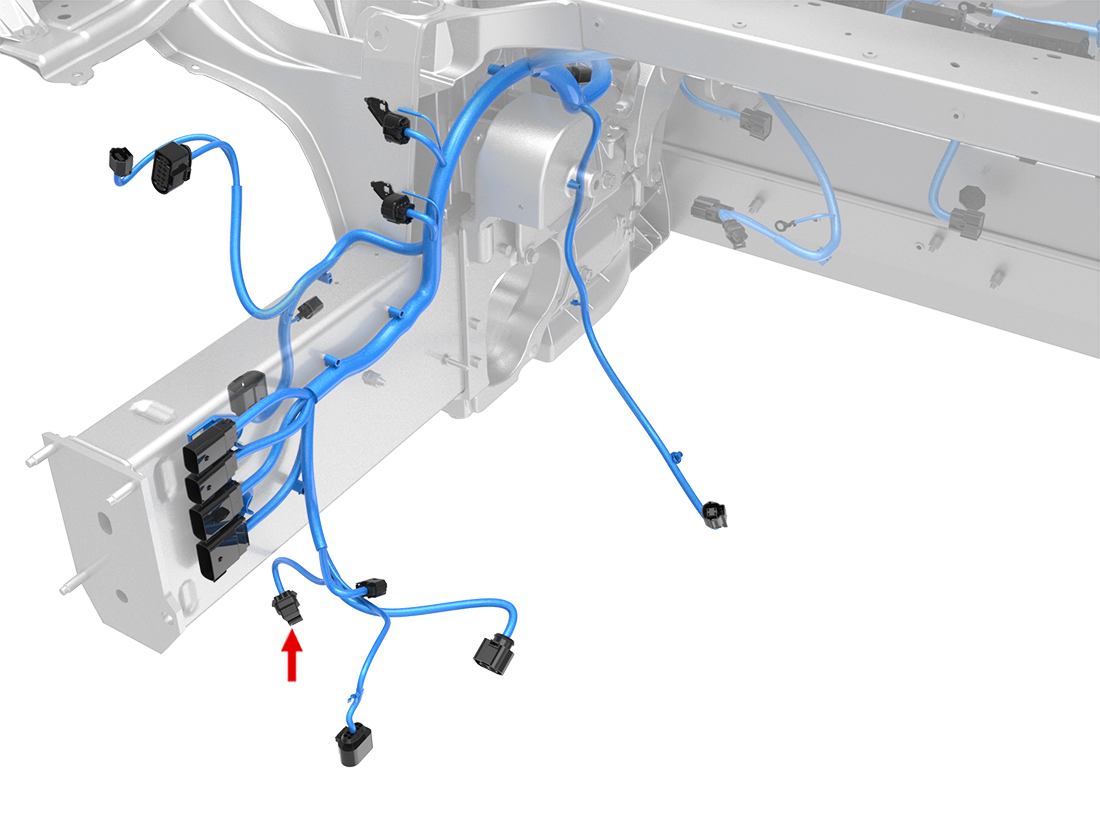

Connector Detail: DELPHI 35027669
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| A | RD/GY | 0.35 | SN | X050-15 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| C | BK | 0.35 | SN | G510-1 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| D | BK/GY | 0.35 | SN | X052-17 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| F | YE/WH | 0.35 | SN | X052-7 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| A | RD/GY | 0.35 | SN | X050-15 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| C | BK | 0.35 | SN | G510-1 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| D | BK/GY | 0.35 | SN | X052-17 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
| F | YE/WH | 0.35 | SN | X052-7 | DELPHI 12084200 | DELPHI 15324974 | 1099477-00-B | |
