2012-2020 Model S Connector Reference
Skip to main content
X086A - s-rhd-sop11

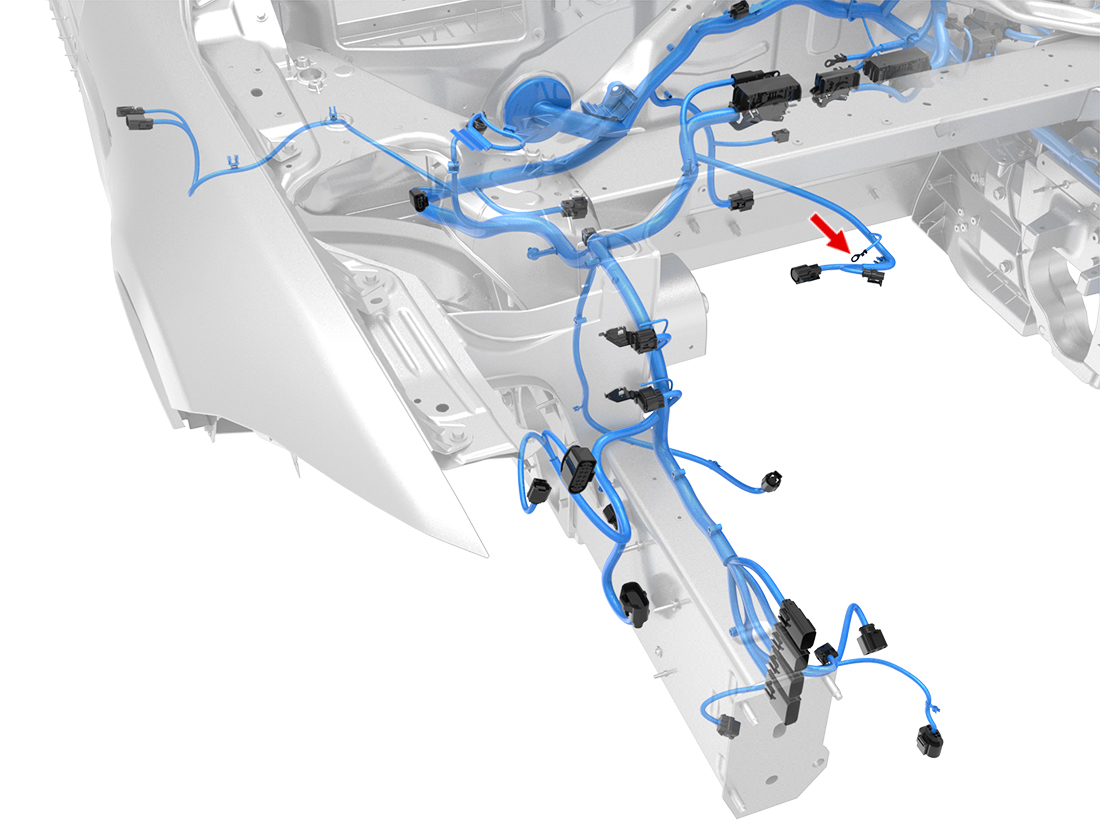

Location:
Connector Detail: YAZAKI 7009-1333-02
Color: SN
Serviceability: Not Serviceable
Cavity
Color
Size
Plate
Destination
Terminal
1
BK
3
SN
G510-1
-
Cavity
Color
Size
Plate
Destination
Terminal
1
BK
3
SN
G510-1
-
