X091 - s-rhd-sop11

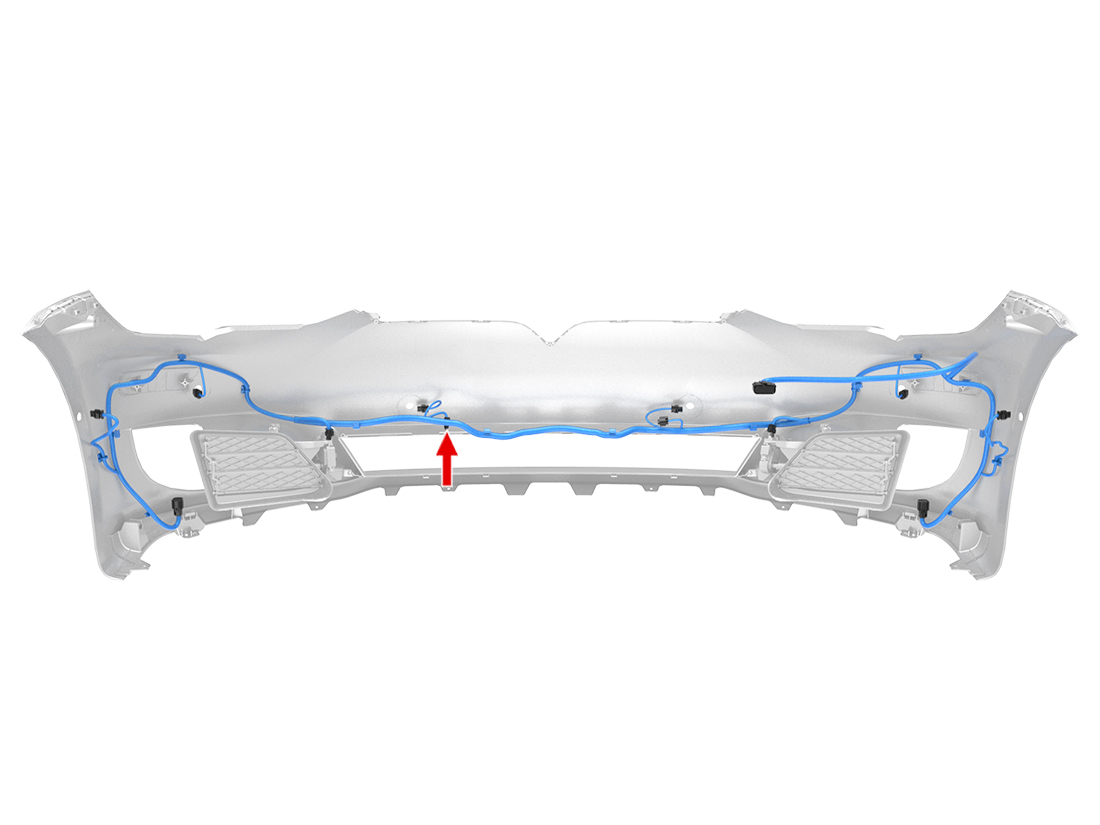

Location:
Connector Detail: YAZAKI 7123-1424
Color: NA
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.5 | SN | X964F-10 | YAZAKI 7116-1471 | YAZAKI 7157-7897-60 | 1099555-00-B | |
| 2 | GY | 0.5 | SN | X964F-11 | YAZAKI 7116-1471 | YAZAKI 7157-7897-60 | 1099555-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.5 | SN | X964F-10 | YAZAKI 7116-1471 | YAZAKI 7157-7897-60 | 1099555-00-B | |
| 2 | GY | 0.5 | SN | X964F-11 | YAZAKI 7116-1471 | YAZAKI 7157-7897-60 | 1099555-00-B |
