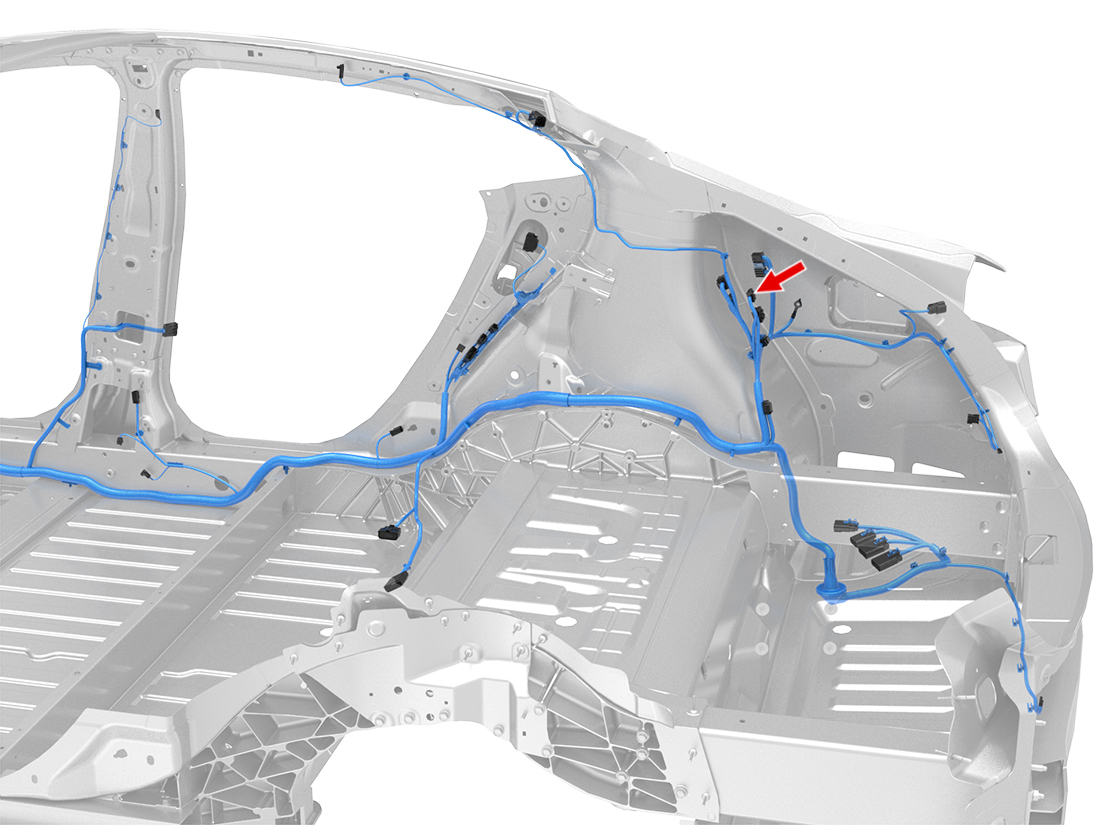

Connector Detail: JAE MX34020SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.35 | SN | X779-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | GN/WH | 0.35 | SN | X779-7 | JAE M34S75C4F1 | | 1099499-00-B | |
| 5 | BU/WH | 0.5 | SN | X930M-6 | JAE M34S75C4F2 | | 1099500-00-A | |
| 6 | WH | 0.5 | SN | X930M-2 | JAE M34S75C4F2 | | 1099500-00-A | |
| 7 | VT/WH | 0.5 | SN | X930M-13 | JAE M34S75C4F2 | | 1099500-00-A | |
| 8 | OG | 0.5 | SN | X930M-9 | JAE M34S75C4F2 | | 1099500-00-A | |
| 11 | RD | 0.35 | SN | X779-15 | JAE M34S75C4F1 | | 1099499-00-B | |
| 13 | GN | 0.35 | SN | X779-18 | JAE M34S75C4F1 | | 1099499-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.35 | SN | X779-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | GN/WH | 0.35 | SN | X779-7 | JAE M34S75C4F1 | | 1099499-00-B | |
| 5 | BU/WH | 0.5 | SN | X930M-6 | JAE M34S75C4F2 | | 1099500-00-A | |
| 6 | WH | 0.5 | SN | X930M-2 | JAE M34S75C4F2 | | 1099500-00-A | |
| 7 | VT/WH | 0.5 | SN | X930M-13 | JAE M34S75C4F2 | | 1099500-00-A | |
| 8 | OG | 0.5 | SN | X930M-9 | JAE M34S75C4F2 | | 1099500-00-A | |
| 11 | RD | 0.35 | SN | X779-15 | JAE M34S75C4F1 | | 1099499-00-B | |
| 13 | GN | 0.35 | SN | X779-18 | JAE M34S75C4F1 | | 1099499-00-B | |
