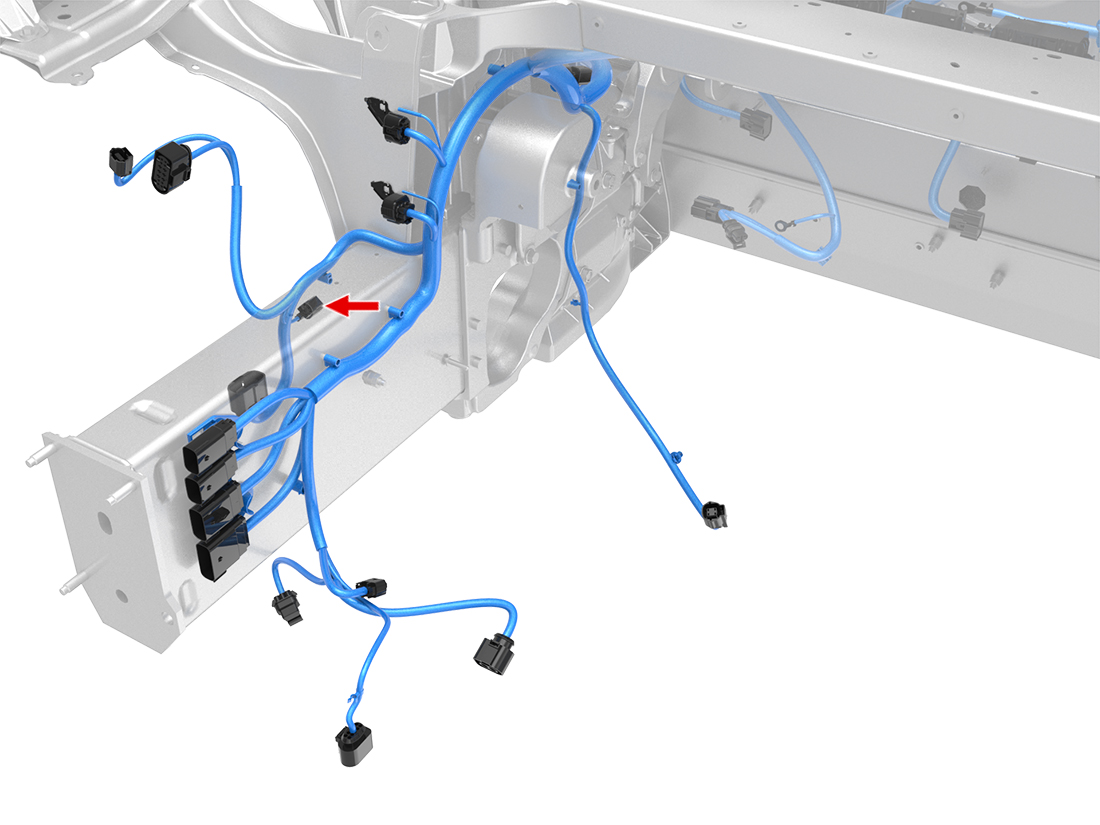

Connector Detail: MOLEX 34062-0023
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/WH | 0.5 | SN | X106-16 | MOLEX 34083-2002 | YAZAKI 7158-3030-50 | 1116817-00-A | 1116485-00-A |
| 2 | GY | 0.5 | SN | X106-4 | MOLEX 34083-2002 | YAZAKI 7158-3030-50 | 1116817-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/WH | 0.5 | SN | X106-16 | MOLEX 34083-2002 | YAZAKI 7158-3030-50 | 1116817-00-A | 1116485-00-A |
| 2 | GY | 0.5 | SN | X106-4 | MOLEX 34083-2002 | YAZAKI 7158-3030-50 | 1116817-00-A | 1116485-00-A |
