X115 - s-rhd-sop11

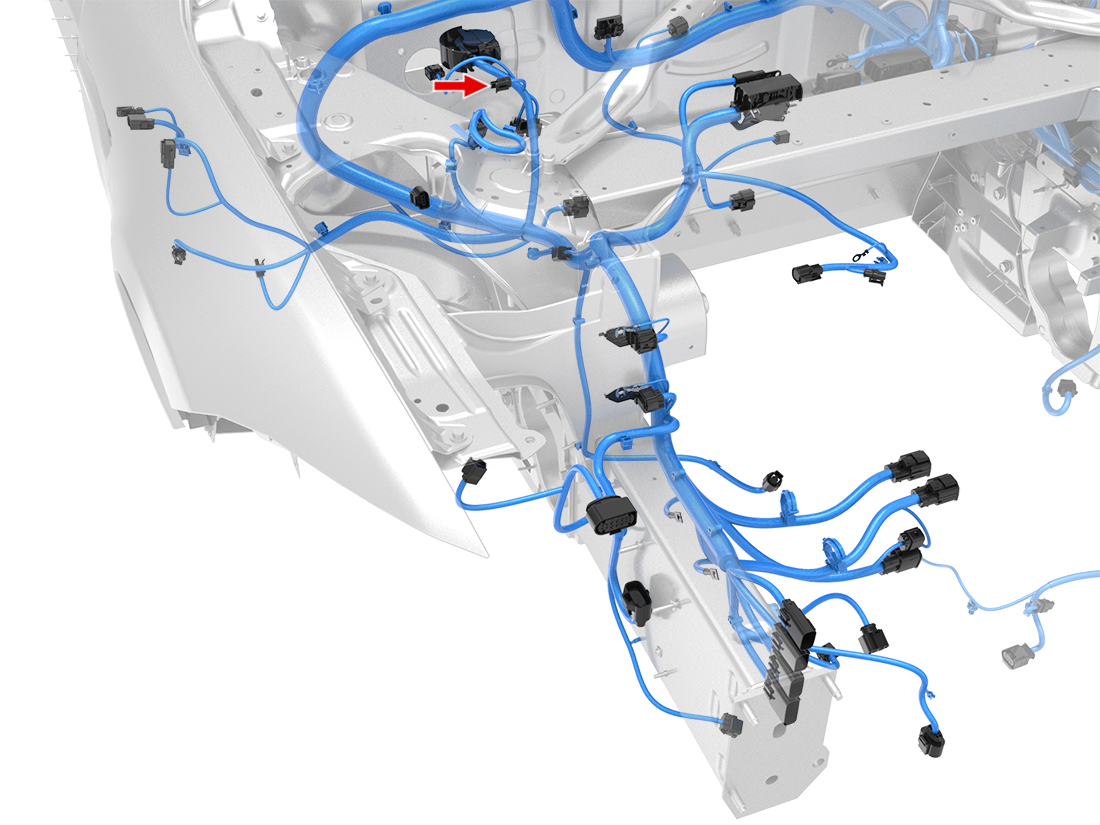

Location:
Location:
Connector Detail: DELPHI 12162193
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | BK | 0.5 | SN | G520-1 | DELPHI 12089290 | TESLA MATSEAL | 1108329-00-C | |
| B | WH/BK | 0.5 | SN | X953F-9 | DELPHI 12089290 | TESLA MATSEAL | 1108329-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | BK | 0.5 | SN | G520-1 | DELPHI 12089290 | TESLA MATSEAL | 1108329-00-C | |
| B | WH/BK | 0.5 | SN | X953F-9 | DELPHI 12089290 | TESLA MATSEAL | 1108329-00-C |
