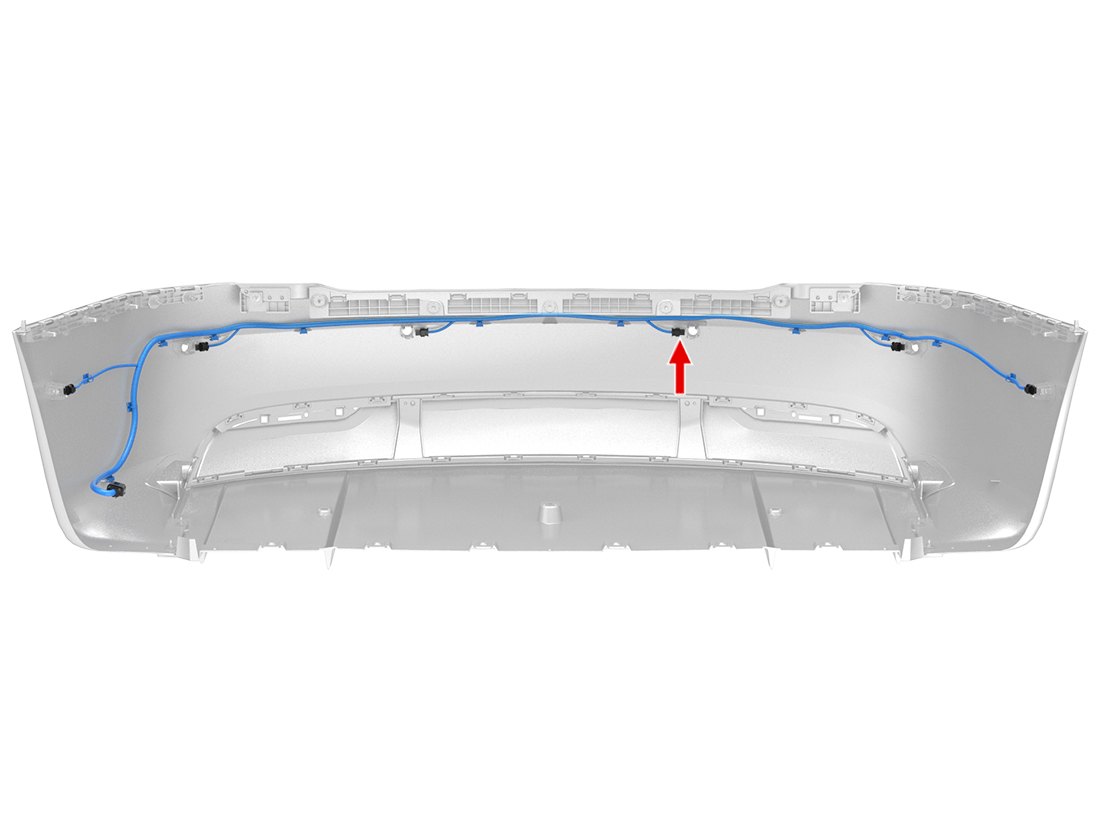

Connector Detail: HIRSCHMANN 805-121-521
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | Z50-WPA21-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | WH | 0.35 | SN | X909F-8 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK/WH | 0.35 | SN | Z51-WPA22-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | Z50-WPA21-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 2 | WH | 0.35 | SN | X909F-8 | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
| 3 | BK/WH | 0.35 | SN | Z51-WPA22-R | AMP 7-1452665-1 | AMP 967067-2 | 1099461-00-C | |
