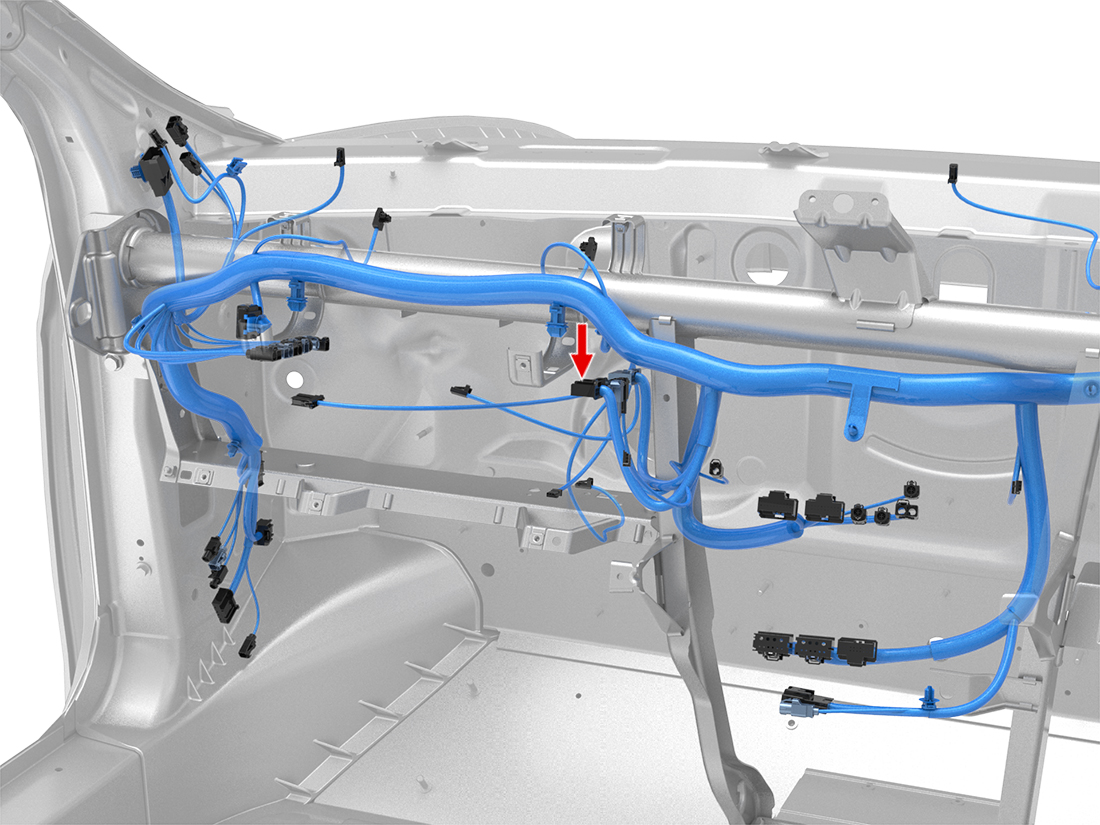

Connector Detail: SUMITOMO 6098-5611
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.35 | SN | X445-1 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 5 | YE/WH | 0.35 | SN | X949F-22 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | YE | 0.35 | SN | X949F-23 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | BU | 2 | SN | X575-5 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 11 | WH | 0.35 | SN | X445-2 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 17 | BK | 2 | SN | X948F-18 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 18 | BK | 2 | SN | X949F-1 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.35 | SN | X445-1 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 5 | YE/WH | 0.35 | SN | X949F-22 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | YE | 0.35 | SN | X949F-23 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | BU | 2 | SN | X575-5 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 11 | BK/WH | 0.35 | SN | X445-2 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 17 | BK | 2 | SN | X948F-18 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 18 | BK | 2 | SN | X949F-1 | SUMITOMO 8240-0214 | | 1099540-00-A | |
