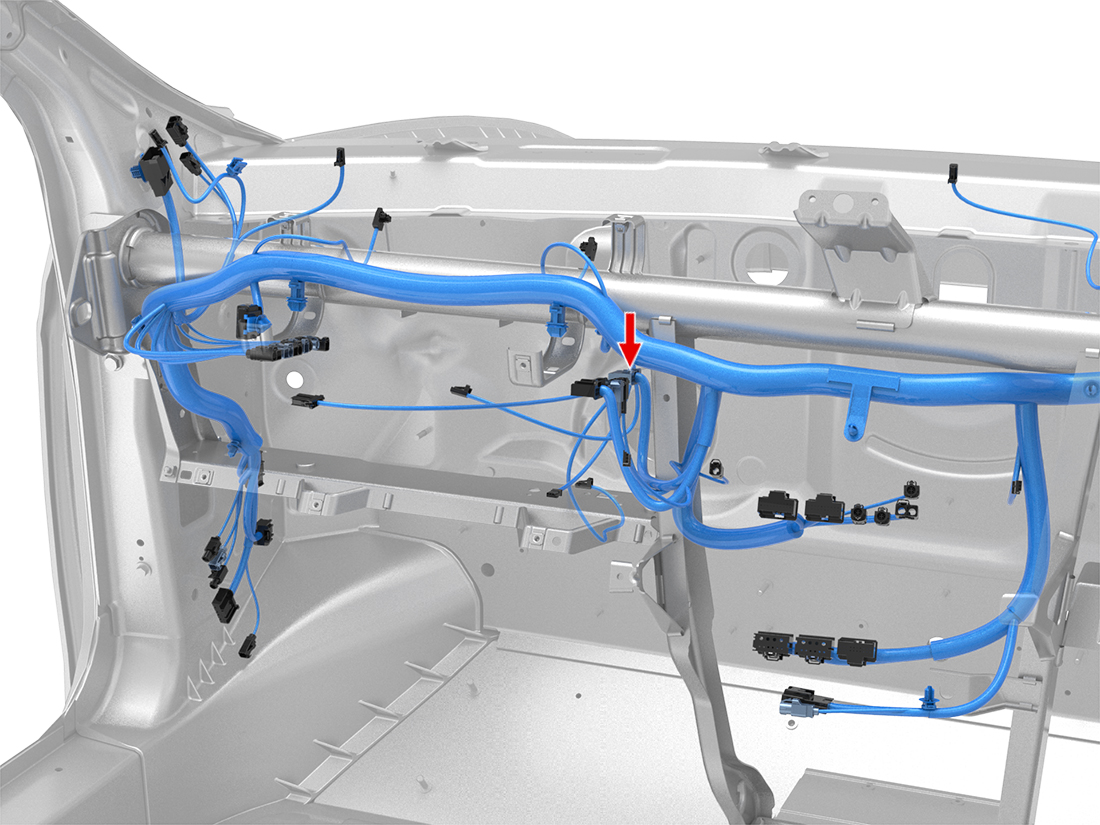

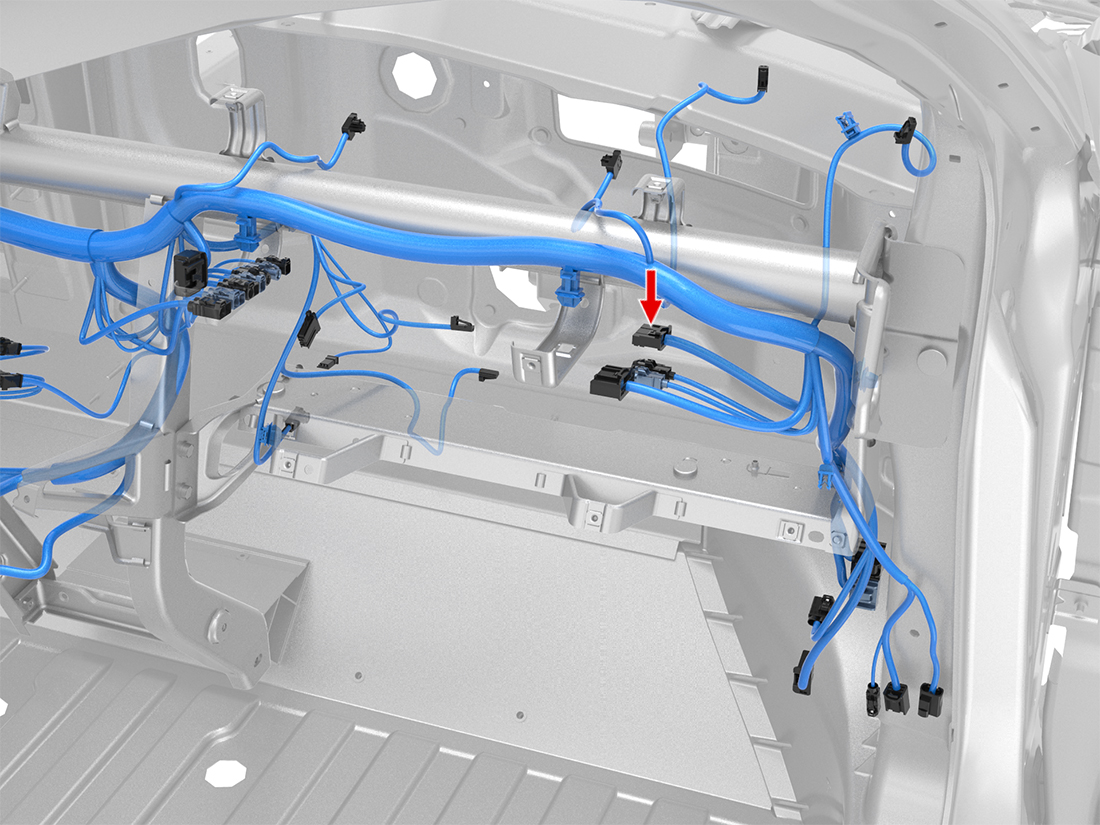

Connector Detail: SUMITOMO 6098-4008
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/WH | 0.5 | SN | X970F-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 2 | GY | 0.5 | SN | X970F-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 3 | VT/WH | 0.35 | SN | X949F-24 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | RD/BU | 0.5 | SN | X958F-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | RD | 0.5 | SN | X958F-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | BU | 0.35 | SN | X958F-17 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | BU/WH | 0.35 | SN | X958F-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | VT | 0.35 | SN | X949F-25 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X772-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | GN | 0.35 | SN | X772-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X772-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | RD | 0.35 | SN | X772-21 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | BK | 0.5 | SN | Z18-+GDD11-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | BU/WH | 0.5 | SN | X968M-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY/WH | 0.5 | SN | X970F-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 2 | GY | 0.5 | SN | X970F-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 3 | VT/WH | 0.35 | SN | X949F-24 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | RD/BU | 0.5 | SN | X958F-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | RD | 0.5 | SN | X958F-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | BU | 0.35 | SN | X958F-17 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | BU/WH | 0.35 | SN | X958F-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | VT | 0.35 | SN | X949F-25 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X772-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | GN | 0.35 | SN | X772-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X772-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | RD | 0.35 | SN | X772-21 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | BK | 0.5 | SN | Z18-+GDD11-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | BU/WH | 0.5 | SN | X968M-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
