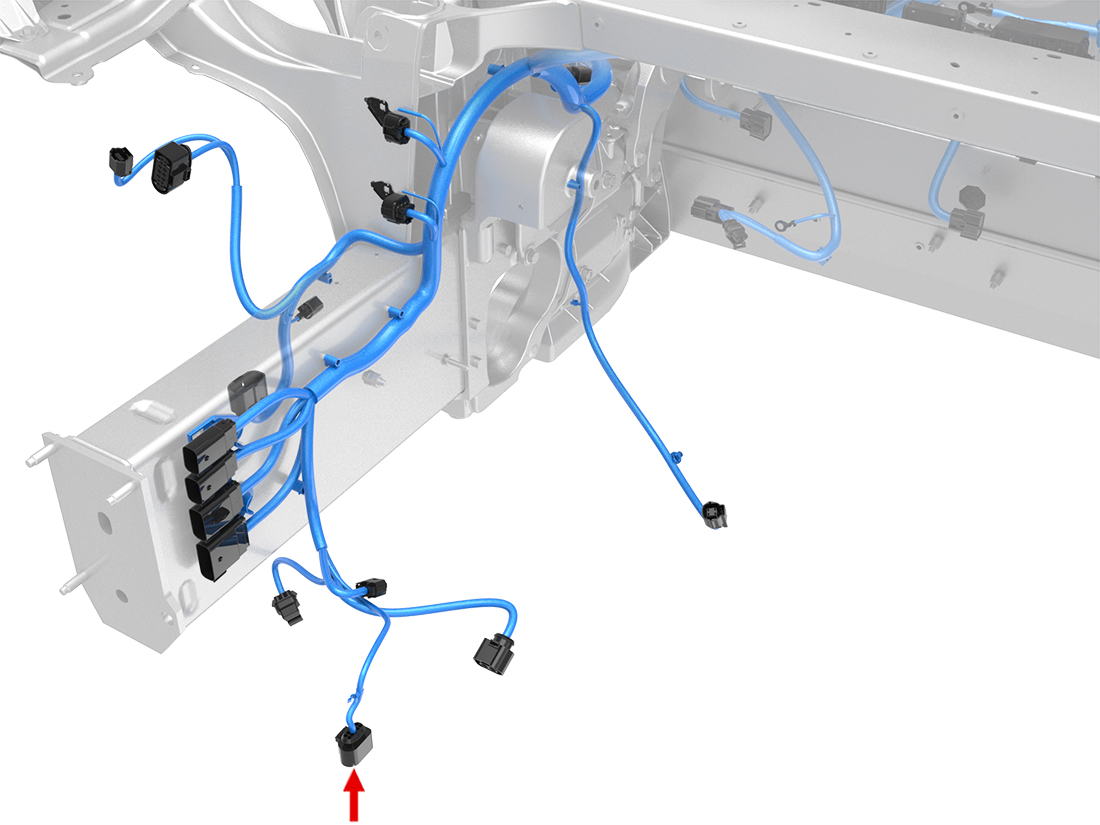

Connector Detail: FEP 42122600
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.35 | AU | X177-18 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 1 | RD | 0.35 | AU | X181A-8 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 2 | WH | 0.35 | AU | X177-16 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 2 | WH | 0.35 | AU | X181A-9 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 3 | GN | 0.35 | AU | X177-17 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 3 | GN | 0.35 | AU | X181A-16 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 4 | YE | 0.35 | AU | X177-20 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 4 | YE | 0.35 | AU | X181A-6 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 5 | GY | 0.35 | AU | X177-6 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 5 | GY | 0.35 | AU | X181A-14 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 6 | GY/WH | 0.35 | AU | X177-5 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 6 | GY/WH | 0.35 | AU | X181A-11 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 7 | BK/GY | 0.35 | AU | X176-16 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 7 | BK/GY | 0.35 | AU | X180A-22 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 8 | BU | 0.35 | AU | X177-19 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 8 | BU | 0.35 | AU | X181A-7 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 9 | VT | 0.35 | AU | X176-17 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 9 | VT | 0.35 | AU | X180A-23 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 10 | GN/WH | 0.35 | AU | X176-12 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 10 | GN/WH | 0.35 | AU | X180A-8 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
