X209 - s-rhd-sop11

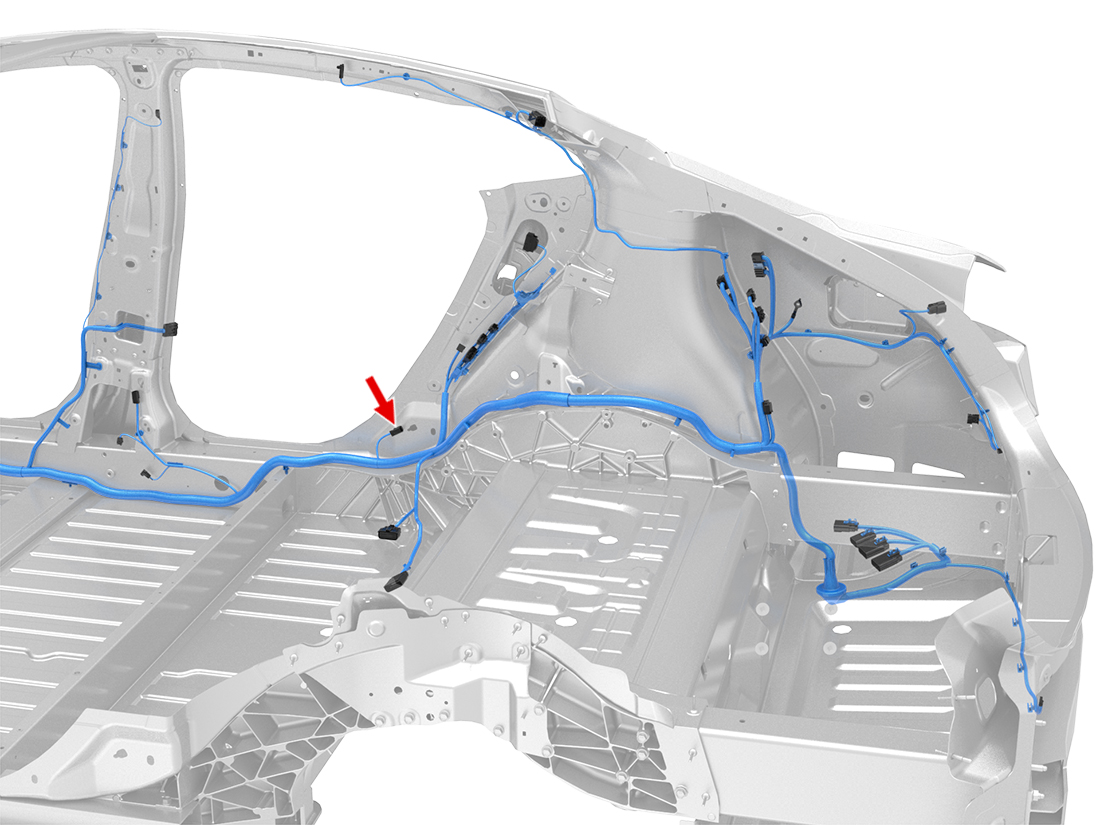

Location:
Connector Detail: MOLEX 31403-2200
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.5 | SN | X988F-5 | MOLEX 33468-0023 | TESLA MAT-120-206 | 1099523-00-A | |
| 2 | BK/WH | 0.5 | SN | X988F-19 | MOLEX 33468-0023 | TESLA MAT-120-206 | 1099523-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 0.5 | SN | X988F-5 | MOLEX 33468-0023 | TESLA MAT-120-206 | 1099523-00-A | |
| 2 | BK/WH | 0.5 | SN | X988F-19 | MOLEX 33468-0023 | TESLA MAT-120-206 | 1099523-00-A |
