X213M - s-rhd-sop11

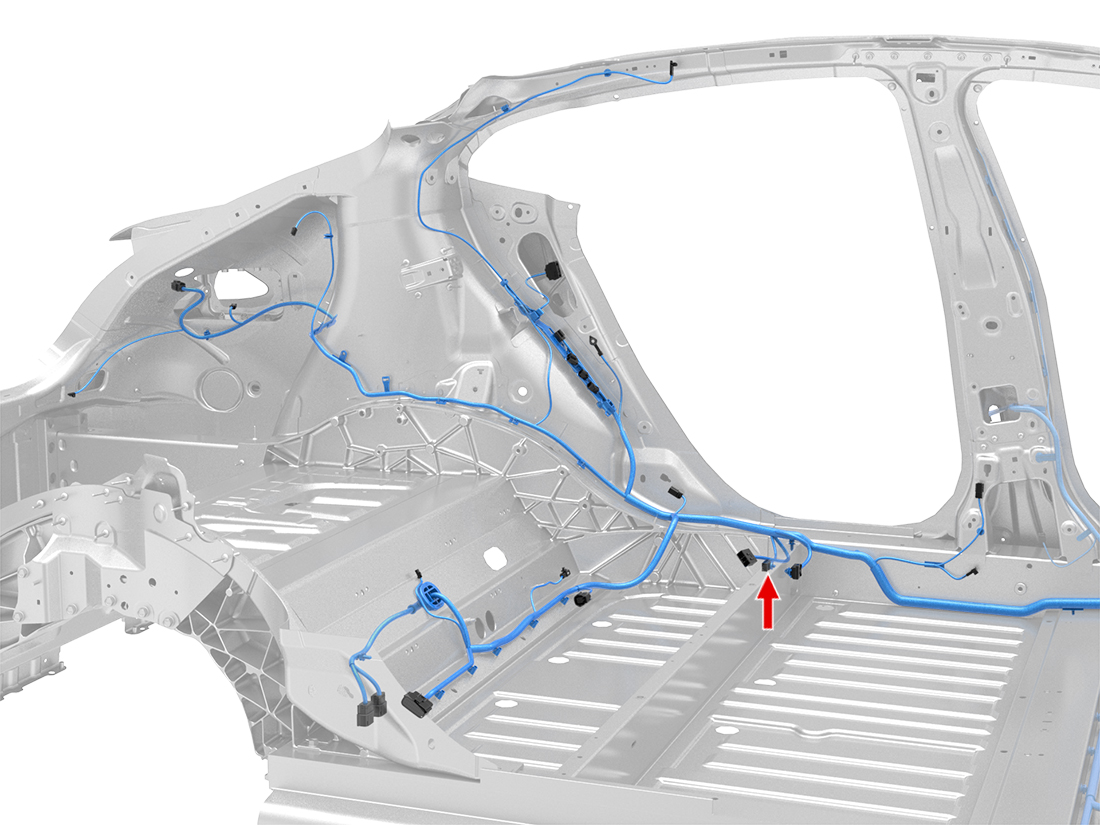

Location:
Connector Detail: AMP 174929-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.5 | SN | X200-24 | AMP 173633-2 | 1099445-00-A | ||
| 2 | WH/BU | 0.5 | SN | X200-25 | AMP 173633-2 | 1099445-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.5 | SN | X200-24 | AMP 173633-2 | 1099445-00-A | ||
| 2 | WH/BU | 0.5 | SN | X200-25 | AMP 173633-2 | 1099445-00-A |
