X218 - s-rhd-sop11

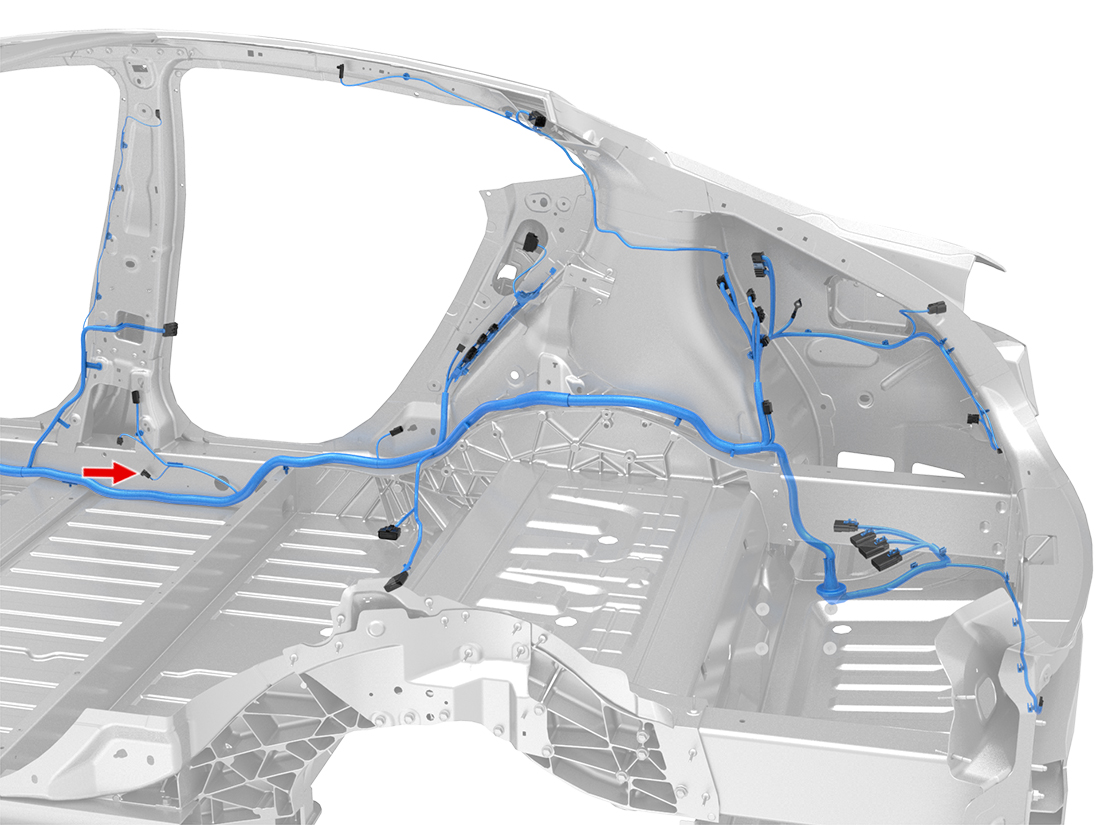

Location:
Connector Detail: DELPHI 13925537
Color: BK
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.5 | AU | X988F-3 | - | - | not found | |
| 2 | WH/BU | 0.5 | AU | X988F-17 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.5 | AU | X988F-3 | - | - | not found | |
| 2 | WH/BU | 0.5 | AU | X988F-17 | - | - | not found |
