X221 - s-rhd-sop11

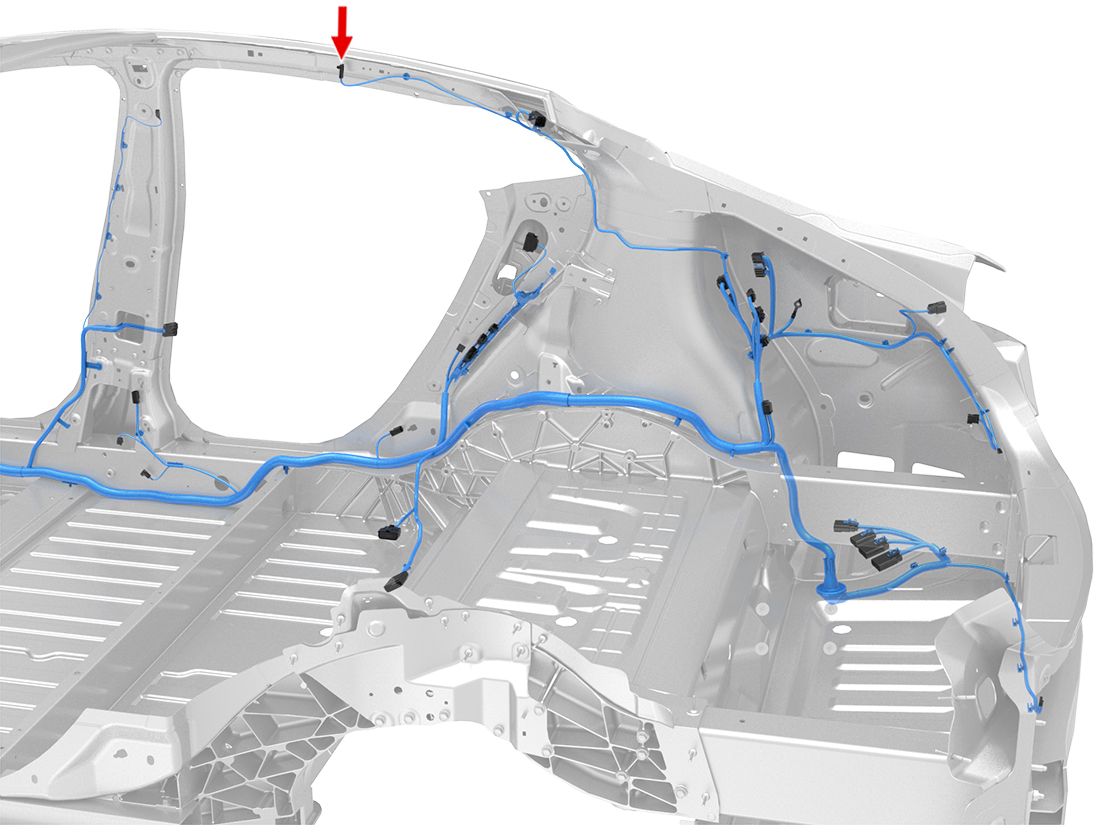

Location:
Connector Detail: FCI F456110C
Color: BK
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BK | 0.5 | AU | X988F-6 | - | - | 1057974-90-B | |
| 2 | BU | 0.5 | AU | X988F-7 | - | - | 1057974-90-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BK | 0.5 | AU | X988F-6 | - | - | 1057974-90-B | |
| 2 | BU | 0.5 | AU | X988F-7 | - | - | 1057974-90-B |
