X224 - s-rhd-sop11

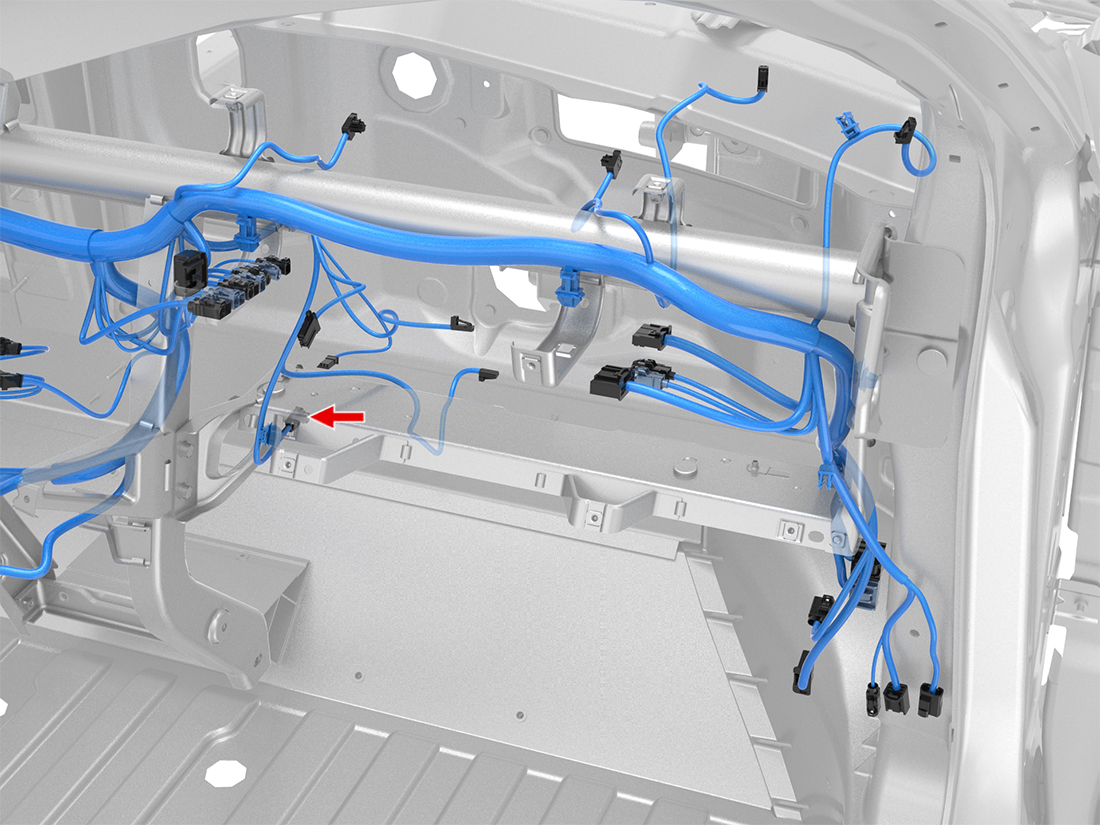

Location:

Connector Detail: DELPHI 33510819

Color: YE

Serviceability: Connector Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal	Service Part	Depinning Tool
1	BK/VT	0.5	AU	X949F-10	-	-	not found
2	OG	0.5	AU	X949F-11	-	-	not found
