X228 - s-rhd-sop11

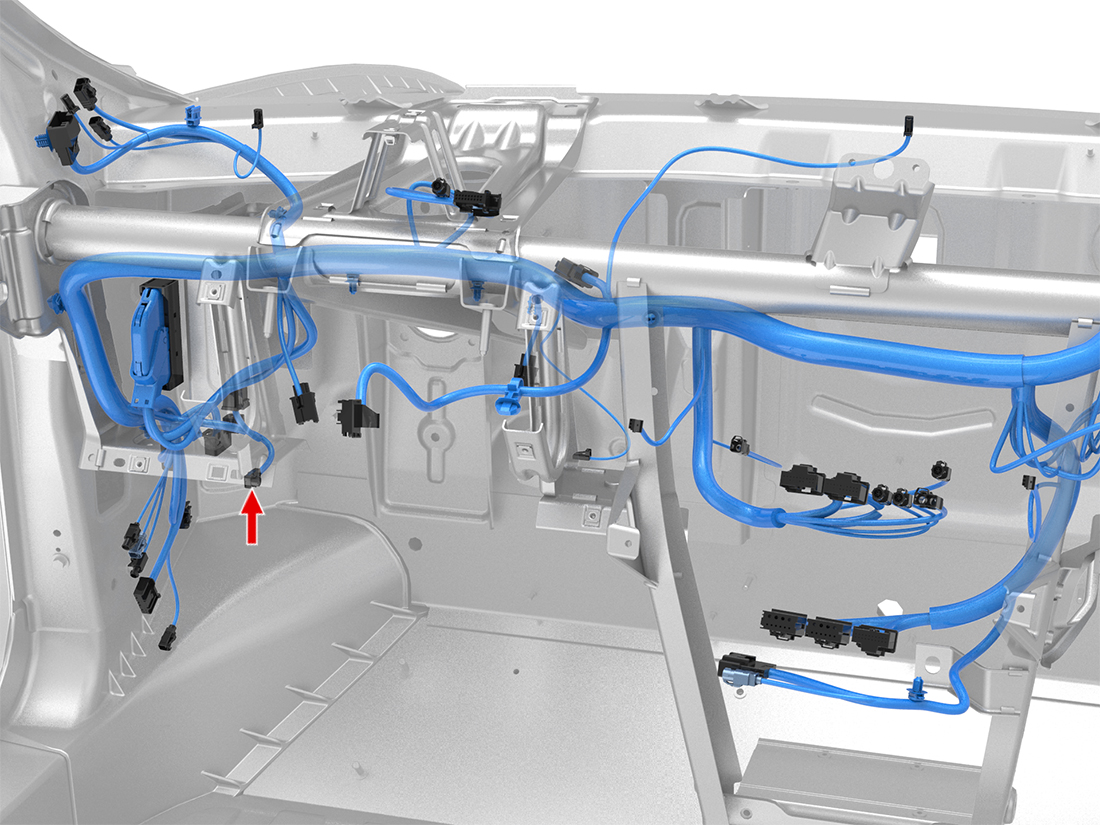

Location:

Connector Detail: DELPHI 33510819

Color: YE

Serviceability: Connector Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal	Service Part	Depinning Tool
1	WH/BK	0.5	AU	X949F-16	-	-	not found
2	BU	0.5	AU	X949F-17	-	-	not found
