X237 - s-rhd-sop11

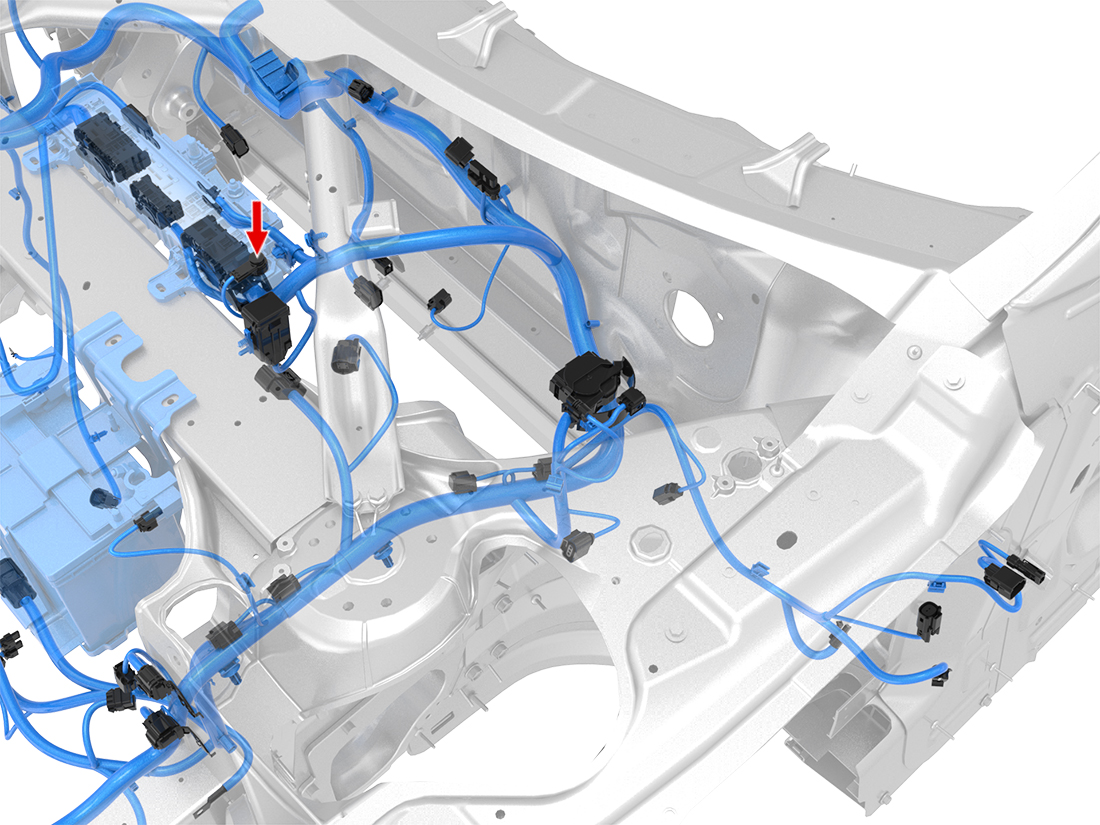

Location:
Location:
Connector Detail: DELPHI 33401365
Color: White
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | AU | X954F-22 | - | - | 1061055-90-A | |
| 2 | GN | 0.5 | AU | X954F-10 | - | - | 1061055-90-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | AU | X954F-22 | - | - | 1061055-90-A | |
| 2 | GN | 0.5 | AU | X954F-10 | - | - | 1061055-90-A |
